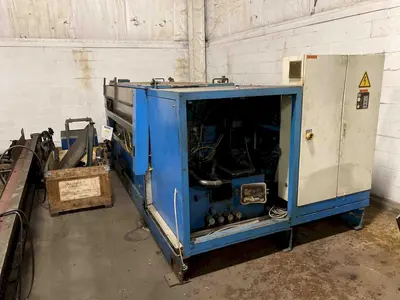

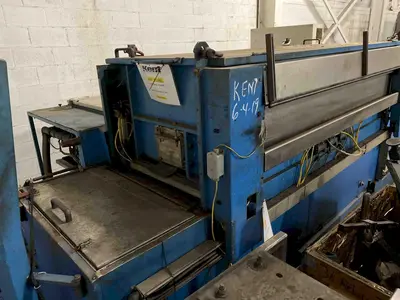

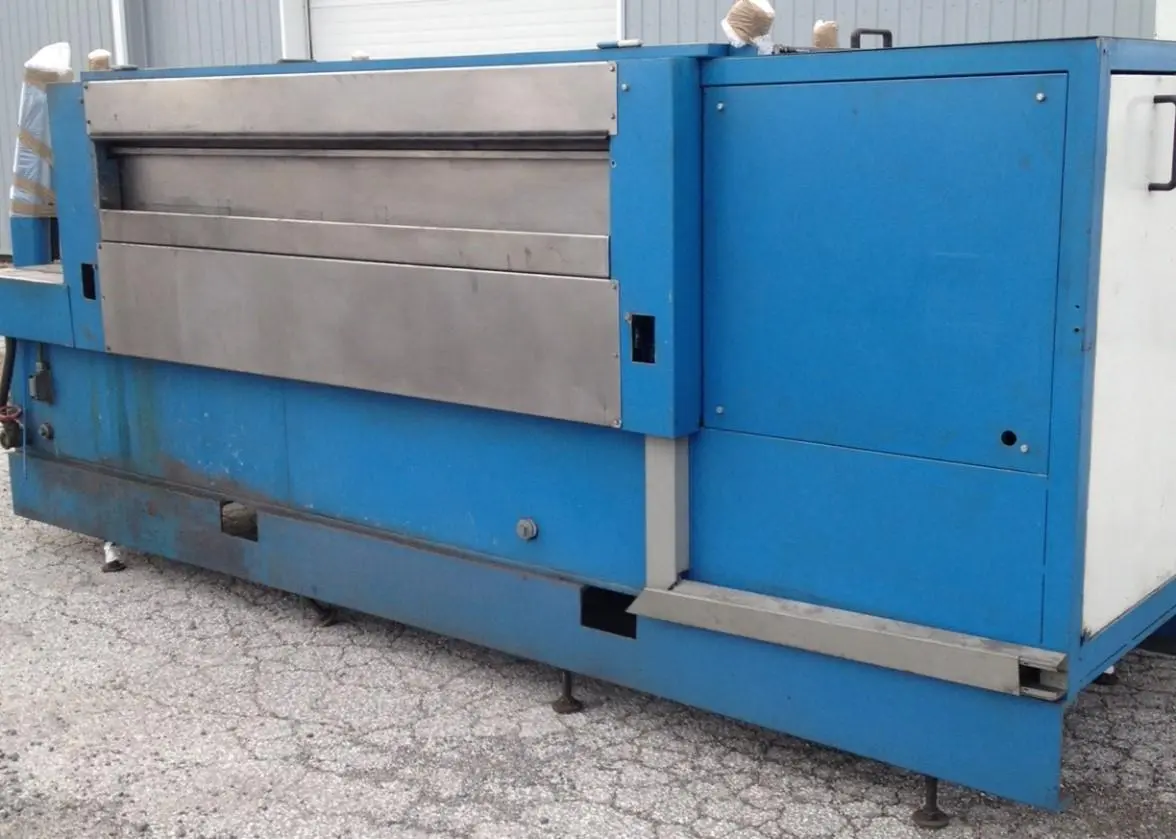

USED BEWO BCM-90

Technical Data:

Round tubes

: 3” OD Max

Max. Product length

: 80”

Cycle time

: from 2 - 100 s. / Drum 21 B

Washing liquid

: watery solution (ph 7 to max. ph 11)


Temperature + 60 ° C to max. + 70° C.


It must be assumed that the selected washing liquid solution


is able to loosen oil grease and other soil from the parts to be


cleaned

Fill-in quantity

: ca. 1100 l

Power for heating

: ca. 30 kW stainless steel (2,5 m, 3 m)

Power for pump

: ca, 1x 7.5kW (for 3m)

Power for drive of drum

: ca. 0,55 kW

Power for drive grease separator

: ca. 0,14 kW

Filter element

: ca. 5 mm MW/1 mm MW

Tension

: 230/400 V, 50 Hz

Control voltage

: 24 V DC

All specs are approximate and buyer must inspect the machine before delivery


Not Included Items (Outside Quoted Scope of Supply)

·

Import duties, tariffs or taxes

·

Machine installation labor or supervision (unless otherwise purchased)

·

Installation materials (i.e., foundation fasteners, grouting materials, conduit, etc.,)

·

Power supply leads main disconnect

·

Air supply line to FRL on unit

·

Materials to test machine in our facilities

·

Spare parts

·

Washing liquids

·

Degreaser

·

Installation and Training
