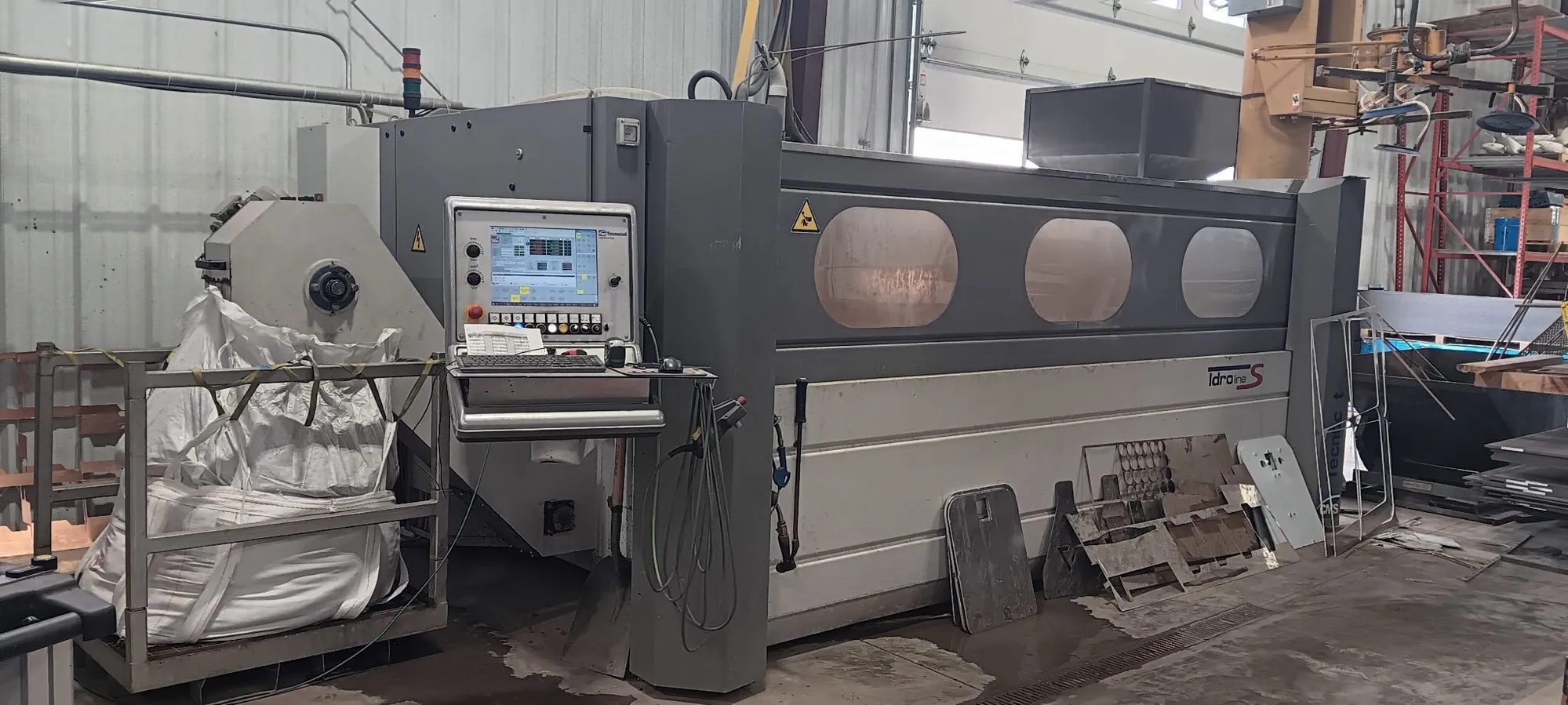

USED 2014 CMS TECNOCUT IDROLINE S1730

CMS Tecnocut Idroline S1730 5 Axis CNC Water Jet (2014)

CMS Tecnocut Idroline S1730 5 Axis CNC Water Jet (2014)

Table Dimensions mm 1700 x 3000
Z Axis Height mm 350 (250mm with 5 Axis Head)
Rest Surface mm 3700 x 2050
B Axis (5 Axis) +/- 60°
R Axis (Pipe Cut) 42-508mm Dia x 2570mm length - 400KG Max Weight
Feed speed
X axis: 40 m/min
Y axis: 40 m/min
Z axis: 4 m/min
C axis: 20000 °/min
B axis: 20000 °/minMotors
Y axis - code: 0001335142H
Y axis - code: 0001335142H
X axis - code: 0001335155F
Z axis - code: 000L0179903C
C axis - code: 0001335138A
B axis - code: 0001335138A
Pressure and Surface Ratings
Optimal working pressure: 340-370 MPa (50000-55000) psi
Maximum pressure: 413 MPa (59900) psi
Effective work surface: The workpiece maximum dimensions must not exceed the main axis strokes.
Operating unit
3 AXES cutting headmaximum cutting thickness: ~ 350 mmoperating speed: 0 ÷ 40 m/minNotes:
When no workpiece holder grids are used, the thickness of the material to cut may be higher than 350 mm
5 AXES cutting headmaximum cutting thickness: ~ 250 mmoperating speed: 0 ÷ 40 m/minNotes:
When no workpiece holder grids are used, the thickness of the material to cut may be higher than 250 mm
Table
quantity: 1type: structural steelwork fixed tablework surface: antiglare grating with bladesclamping system: none
Overall Dimensions mm 5700 x 2700
Weight KG 4000

3 Axis Gantry frame with Stainless Steel tank
Automated Conveyor Dredge system for abrasive removal
Automatic CNC Controled raised & lowered front and rear doors providing totally enclosed cabin
Ground Rack & Pinions with Brushless Servos motor drives
Automatic Axis lubrication
Control Console mounted on corner of machine
Electronic management of Abrasive consumption with feedback of cut parameters
Tecnocut 3 Axis Cutting head with automatic height adjustment, Abrasive or water capability, automatic dispenser and mixing chamber
Photoelectric Safety Barrier system
Powerful TecnoCam Machine Control and Nesting software
Pressurised Abrasive feeding system with 330KG capacity
Remote control
