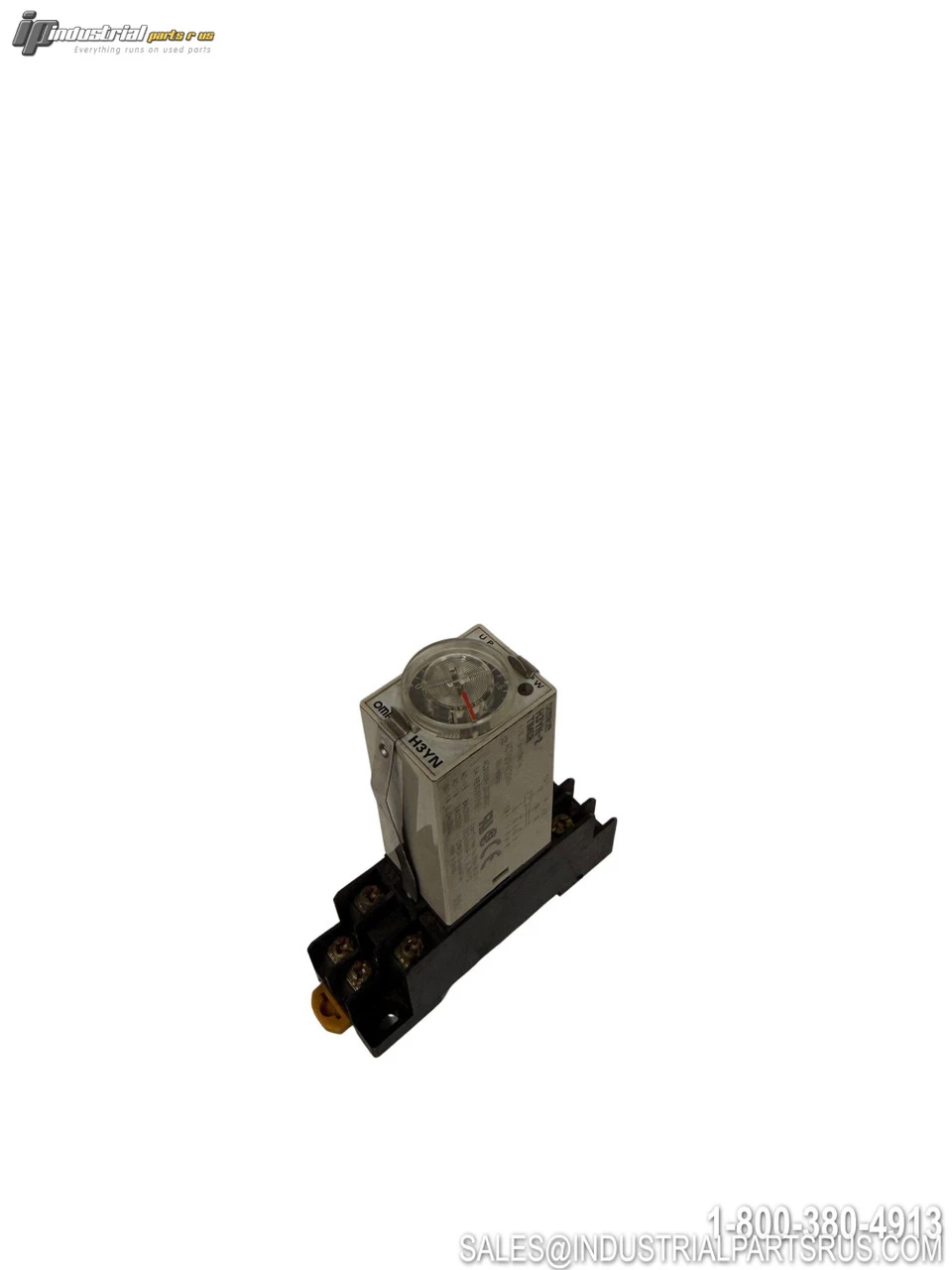

USED OMRON H3YN-2

The Omron H3YN-2 is a solid-state time delay relay offering multiple timing functions and operating modes. This timer features DPDT output contacts and short-time range capability from 0.1 seconds to 10 minutes. The unit provides multiple operating modes including ON-Delay, Interval, and Repeat Cycle (ON-Start or OFF-Start) with LED power-ON and time-UP indicators for visual status confirmation.
Specification
Value
Brand
Omron
Model/Part Number
H3YN-2
Product Type
Solid State Time Delay Relay
Output Contact Configuration
DPDT (2 Form C)
Contact Rating
5A @ 250 VAC Resistive Load
Time Range
0.1 seconds to 10 minutes
Time Settings
1s, 10s, 1min, 10min (selectable)
Operating Modes
ON-Delay, Interval, Flicker OFF Start
Supply Voltage Options
100-120 VAC, 200-230 VAC, 12 VDC, 24 VDC
Terminal Type
8-Pin Plug-in
Mounting Type
Socket Mount (Socket sold separately)
Indicators
LED Power-ON and Time-UP
Color
Beige
Series
H3YN
Minimum Load
1 mA at 5 VDC
Contact Material
Silver (Ag)
Certifications
UL, CSA, CE
We warranty all items for 30 days from date of purchase.

SKU: AI1192
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Socket Mount
Current Rating: 5A @ 250VAC
Output Type: DPDT
Sensor Type: Solid State
Material: Plastic Housing
Manufacturer: Omron
Part Number: H3YN-2
Series: H3YN
Shelf: C-10 Tub 8
Model: H3YN-2
Coil Voltage: Multiple (12VDC, 24VDC, 100-120VAC, 200-230VAC)
MPN: H3YN-2
Type: Time Delay Relay
