NEW 2026 LIVAMAK LPB 2500 x 2mm CNC Panel Bender

2026 LIVAMAK Model LPB 2500 x 2mm Steel CNC Servo Panel Bender, 18 Axes, Graphic Control

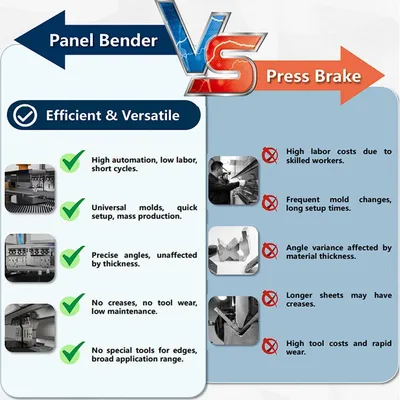

The Panel Bender bending center is fully automatic and easy to use. It can efficiently produce parts with various features without requiring a separate programming or setup operator. The universal tool automatically adjusts to the size specified by the program without any setup time, ensuring both operator safety and product quality.

The positioning process is completed only once at the beginning of each bending cycle. The entire operation is then performed within this cycle. From the start to the completion of the process, the bending plate and rotating structure remain unchanged. The stability of 0.01 degrees ensures high production flexibility.

Model LIVA LPB 2500x2mm
Feeding Structure C-Type Upper Arm
Axes 18 Axes
Material Capacity Stainless Steel 1.5 mm
Carbon Steel 2.0 mm
Aluminum 3.5 m
Max. Plate Width 2500 mm
Max. Plate Depth 1250 mm
Max. Bending Height 170 mm
Min. Bending Height 4 mm
Min. Bending Size (Four Edges) 160 × 280 mm
Min. Inner Size (Single-Side Bending) 160 mm
Min. Continuous Bending Speed 0.2 s
Min. Radius 2.0 mm
Bending Angle -90°~90° (>1.5 mm) / 0°~180° (≤1.5 mm)
Max. Feeding Speed 120 m/min
Min. Material Thickness 0.35 mm
Table Type Brush & Universal Ball
Speed Adjustment Standard
Advanced Command Standard
Local Bending Standard
Auxiliary Blades Standard
Arc Command Standard
Software Windows
Voltage 380 V
Max. Noise Level 55 dB
Robot Interface Standard
Total Power 132 kW
Dimensions (L×W×H) 6300 × 4200 × 2500 mm
Weight 18 Ton

Components Used
Product Brand / Origin Specification
Servo Motor INVT Full Closed-Loop Servo System
Linear Guides YLDG / HIWIN (Taiwan) Super Heavy-Duty Type
Ball Screw TBI / ROUST (Taiwan) Heavy-Duty Type
Electrical Components Schneider (France) —
Bearings NSK (Japan) Heavy-Duty, Hi-Precision Lead Screw
Reducer MOTOREDUCE R (France) Ultra-Precision Type
Pneumatic Components AirTAC (Taiwan) —
Bending Tools Aiotek Patented —

Equipment Spare Parts
Product Content Description Quantity
Screws M42 1 Set
Hex Socket Wrenches S1.5 – S10 1 Set
High-Pressure Grease Gun — 1 Piece
Pneumatic Hose Ø8 5 Meters
Pneumatic T-Connector Ø8 2 Packs
Basic Accessories — 1 Set
Cable Ties L200 30 Pieces
Socket Head Screws M10×45 Grade 12.9 6 Pieces
