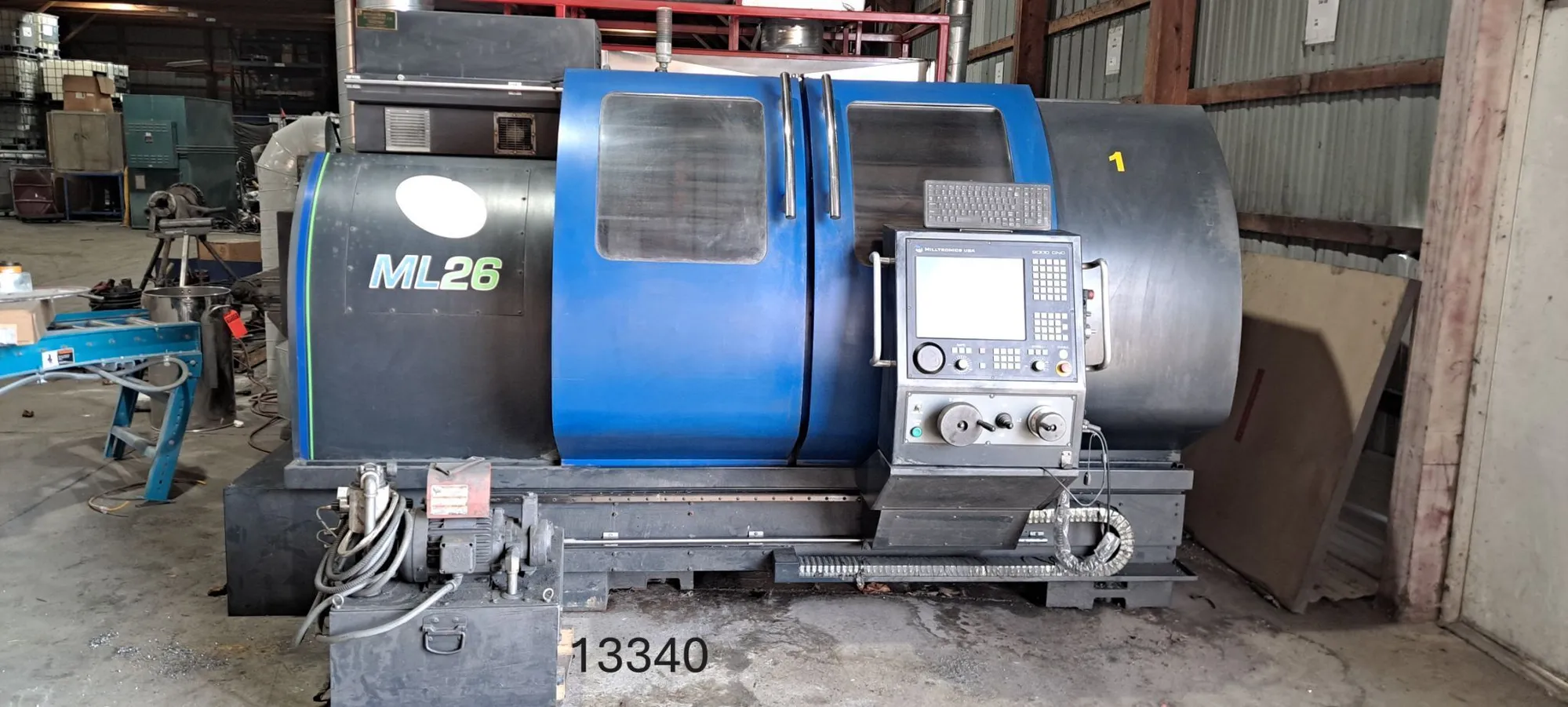

USED 2017 MILLTRONICS ML26/40

CAPACITY:
X axis travel 13” (330 mm)
Z axis travel 42” (1066 mm)
Swing over bed (diam) 27” (685 mm)
Swing over gap (diam) 34.2” (870 mm)
Gap distance 16.1” (410 mm)
Swing over cross slide (diam) 12.75” (320 mm)

SPINDLE:
Spindle nose A1-8
Spindle bore diameter 3.22” (82 mm)
Spindle range 40-2000 RPM
AC spindle motor 24/15 HP (18/11kW)
Spindle torque 1050 ft-lbs. (1423 Nm)

TAILSTOCK:
Tailstock quill travel 6” (150 mm)
Tailstock quill diameter 3.94” (100 mm)
Tailstock quill taper MT5

AUTOMATIC TURRET:
Number of tools 8
Tool size 1” (25 mm)
Boring bar capacity 1.5” (38 mm)
Tool selection Bi-directional

MOTION:
X, Z axis rapid traverse rate 500 IPM (12.7 m/min)
Maximum cutting feed rate 100 IPM (2540 mm/min)
X axis ball screw diameter 1.25” (32 mm)
Z axis ball screw diameter 1.77” (45 mm)
Position accuracy* ±0.00025” (±0.0063 mm)
Repeatability* 0.0002” (0.005 mm)
Axis thrust force X, Z 4,000 lbs.
