NEW 1981 DORRIES CTE 320/3400
Overview
Description

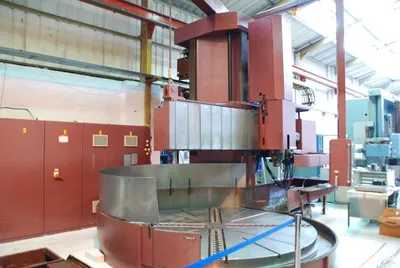

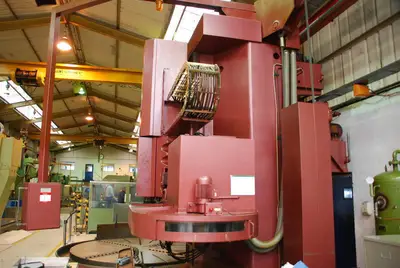

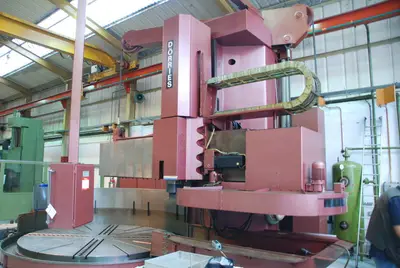

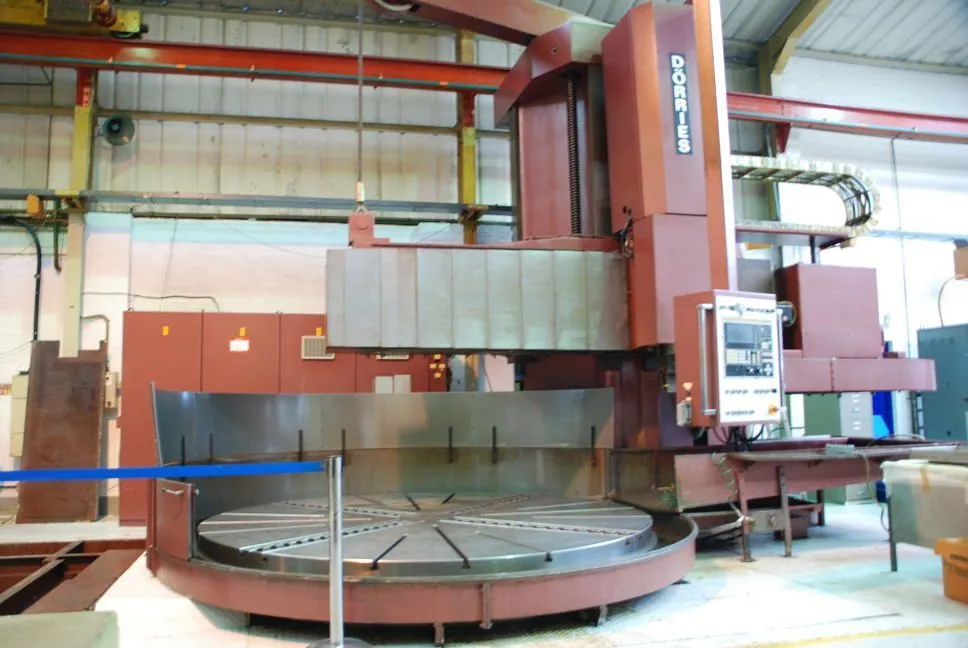

1981 Retrofit DORRIES Model CTE 320/3400 Vertical Boring Mill, Siemens 840D CNC can be added
Dörries, a renowned German manufacturer based in Mönchengladbach, specializes in high-precision vertical turning and boring machines. Founded decades ago, it became a cornerstone of the Dörries Scharmann Group and was acquired by Starrag Group in 2011 to form a leader in heavy-duty machinery for industries like energy and aerospace.
Specifications
| Table Dia | 125.98" | 3,199.9 mm |
|---|---|---|
| Swing | 200.79" | 5,100.1 mm |
| Work Ht-U/R | 98.43" | 2,500.1 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 100 RPM | 100 RPM |
| Control | CNC (Siemens 8) | CNC (Siemens 8) |
| Dimensions | 9.3m x 6.1m x 6.0 m | 9.3m x 6.1m x 6.0 m |
| Weight | 70 tons | 70 tons |
Vertical Turret Lathe - Single Column
Make: DÖRRIES
Type: CTE 320/3400
New in: 1981
Control: CNC
Term of delivery: immediately
Description: machine is in an excellent condition!,ith div. acessories (photos available)

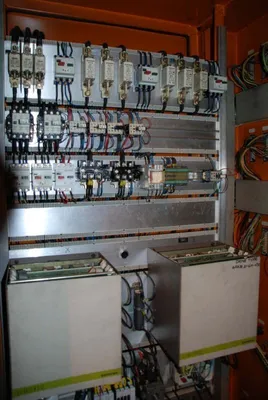

machine can be equipped with latest electrics and Siemens CNC control SINUMERIK
840D sl for additional costs.

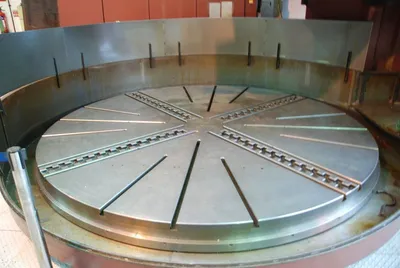

Faceplate diameter 3200 mm 125.98"
Swing diameter 5100 mm 200.79"
Turning height 2505 mm 98.43"
Cross rail - adjustment 1500 mm 59.06"
Max. ram stroke 1250 mm 49.21"
Slide adjustment 2000 mm 78.74"

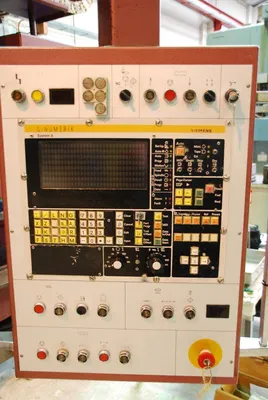

Control Siemens 8 T

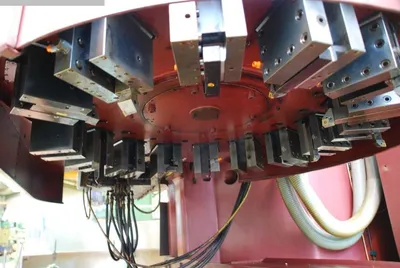

Tool changer 16 Positions
Table load 60 tons
Faceplate turning speed range -stepless- 08.-100 U/min 100 RPM
Feed (SCR Feed Driv 0.0 1-1000 mm/min
Rapid traverse 6000 mm/min
Drive of main spindle 75 kW 100 HP
Weight of the machine ca. 70 tons
dimensions of the machine ca. 9.3 x 6.1 x 6.0 m
Equipped With
With Displaceable Table
