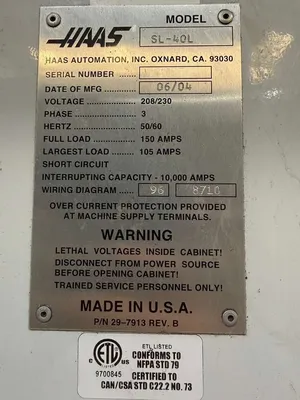

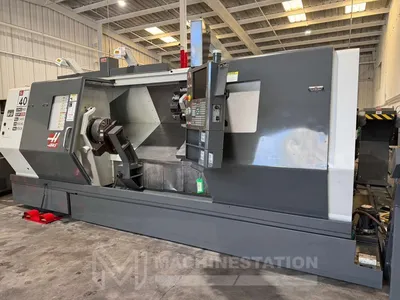

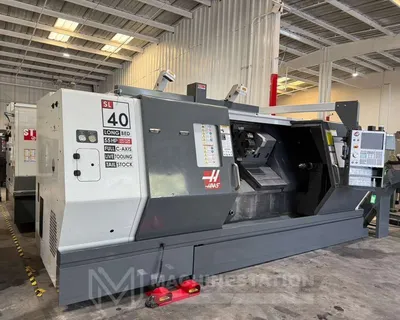

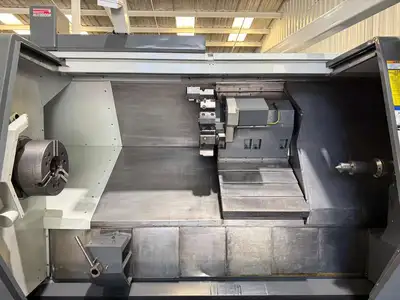

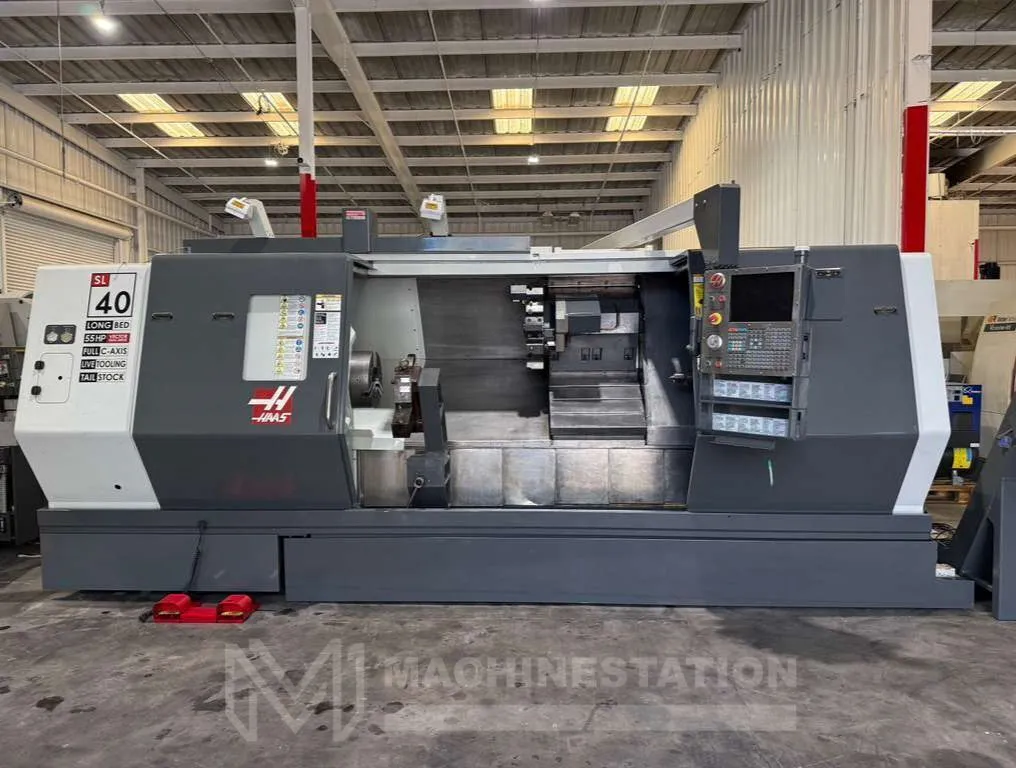

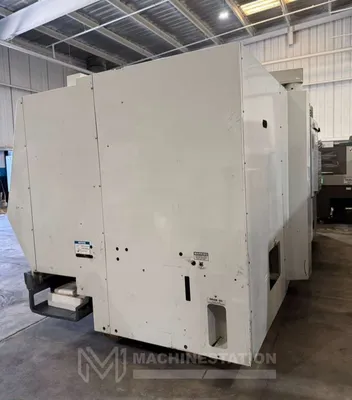

USED 2004 HAAS SL-40L

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

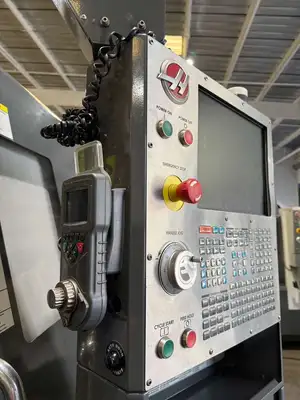

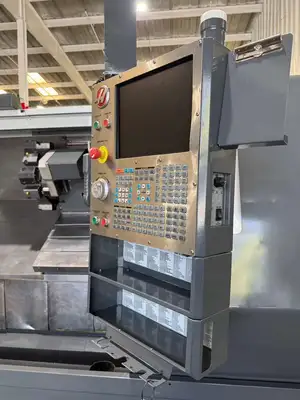

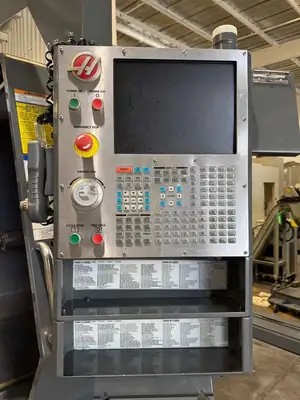

Haas CNC Control
80″ Long Bed
Coolant Tank
Automatic Lubrication system

Capacity:
Max Turning Diameter : 27.5″
Max Swing Over Bed : 35.5″
Max Turning Length: 80.0″
Max Bar Capacity : 4.0″

Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 80.0″

Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 320 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 55 HP

Turret:
Turret Capacity: 12 Stations Live Tool
Turret Index Time: 1 Second

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 254″ x 95″ x 105″ High
Machine Weight: 29,900 lbs Approx.

15″ 3-Jaw MMK Hydrualic Chuck
Servo Controlled Full C Axis On Spindle

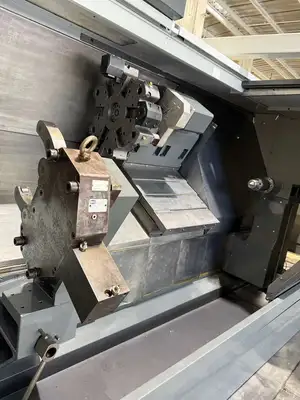

12 Station Live Tool Turret

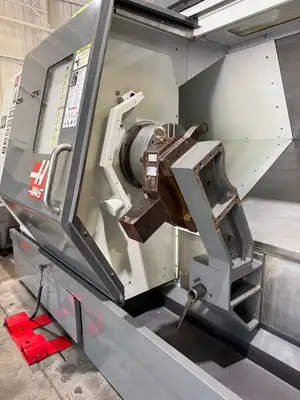

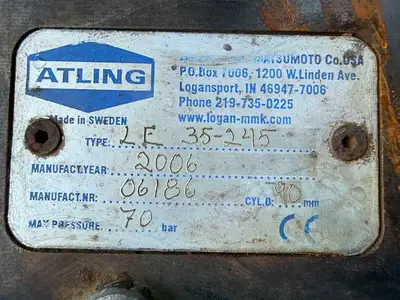

1.37″ – 9.64″ (Min – Max) Diameter Atling Steady Rest
55 HP Vector Drive
A2-8 Spindle Nose
Tool Presetter
Auto Door
Programmable Tailstock
Remote Jog Handle
Chip Conveyor

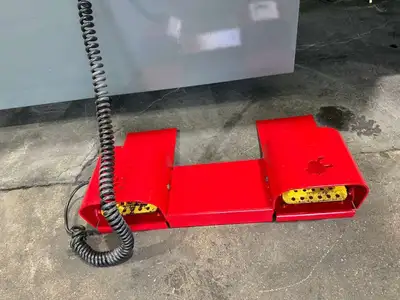

Foot Switches
