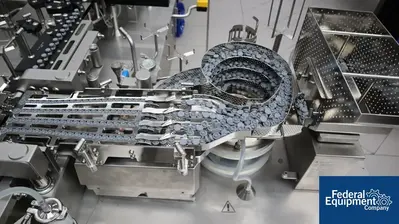

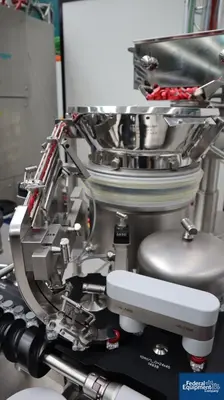

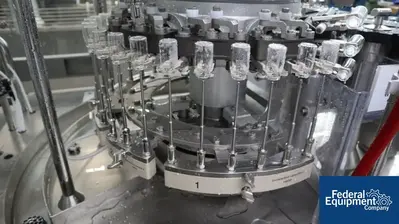

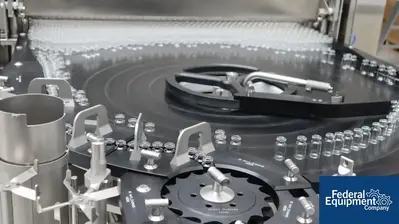

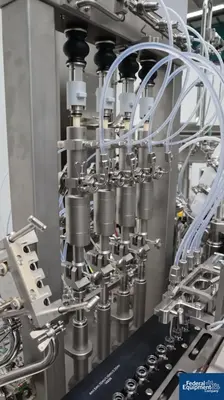

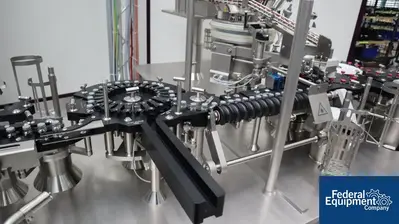

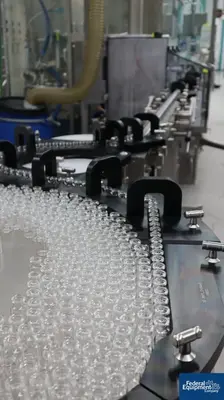

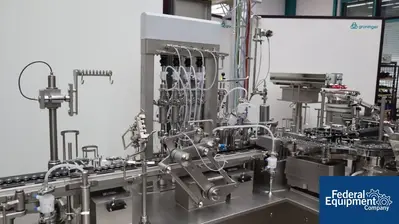

NEW Groninger Unused Groninger Aseptic Vial Filling Line, Model RFVG-200

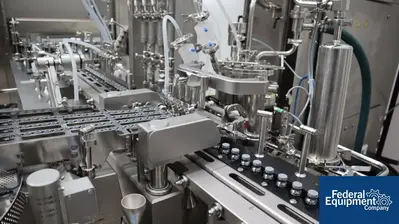

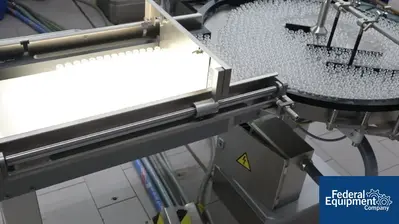

Unused Groninger Aseptic Vial Filling Line, speeds up to 150 vials/minute.  Line is designed to CE-norms. Set up for 3 mL, 5 mL with 13mm neck size, 10R, 10Ml, with 20mm neck size, speeds up to 150 vials/minute, 20H, with 20mm neck size, speeds up to 60 vials/minute, and 30mL with 20mm neck size range, speeds up to 50 vials/minute.  Project Order# 1361274-04. Line consisting of the following: DTE1000 Feeding unit , 14 – 95mm object diameter, 23 – 230mm object size range. ASVK50 Cleaning unit , 16.00 – 51.60mm object diameter, 33 – 95mm object height range. Laminar flow Protection LF-Unit covers machine infeed, transfer conveyor from washing machine outfeed to sterilizing tunned infeed. ETE1000 Feeding unit , 16 – 68mm object diameter, 30 – 125mm object size range. STH1111 fully automatic Sterilization and Depyrogenation unit ,  16 – 100mm object diameter, 30 – 175mm object size range, 1155mm wide mesh wire conveyor, heating module with HEPA class H13 class A cleanroom rated, cooling module with sealing partition and filter. RFVG-200 Filling unit , rated to process vials between 2R and 100H, speeds up to 9000 containers/hour with a (3) head configuration with 100% check weighing, combination of filling system with rotary piston pump and peristaltic pump, continuous infeed, transfer system to intermittent motion walking beam filling system, 100% In-Process control, Stoppering, transfer system from intermittent motion to continuous motion, continuous discharge, with pre-gassing, post-gassing and gassing during stoppering, servo-adjustable walking beam filling system, re-stoppering function. Cleaning CIP/SIP Keramik unit KVK208B closing unit , 16 – 68mm object diameter, 34 – 145mm object size range, 13, 20, and 32mm sealing cap roll margin diameter, cap sorting and infeed with vibrating bowl, (8) head rotary sealer,  MAK200 Feeding unit for magazining objects, 16 – 66mm object diameter, 30 – 110mm object size range Line includes associated PLC and HMI interface units. Filler/Stopper mounted in SCADA Rockwell Isolator with HMI. Line is from 2024 and was never installed.

Capacity Per Min: 150
Container Type: vials
Year of Construction: 2024
