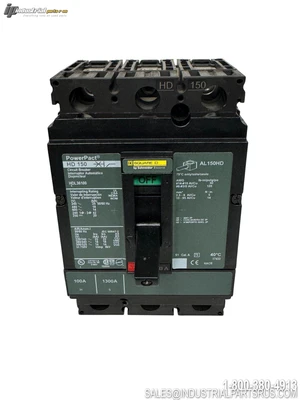

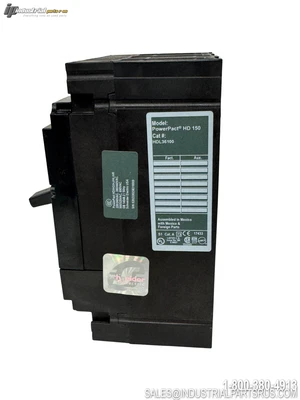

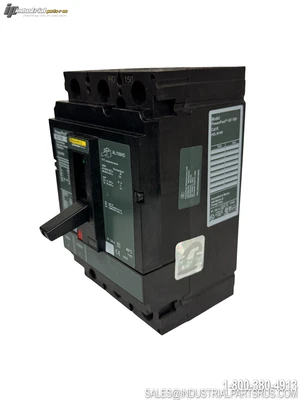

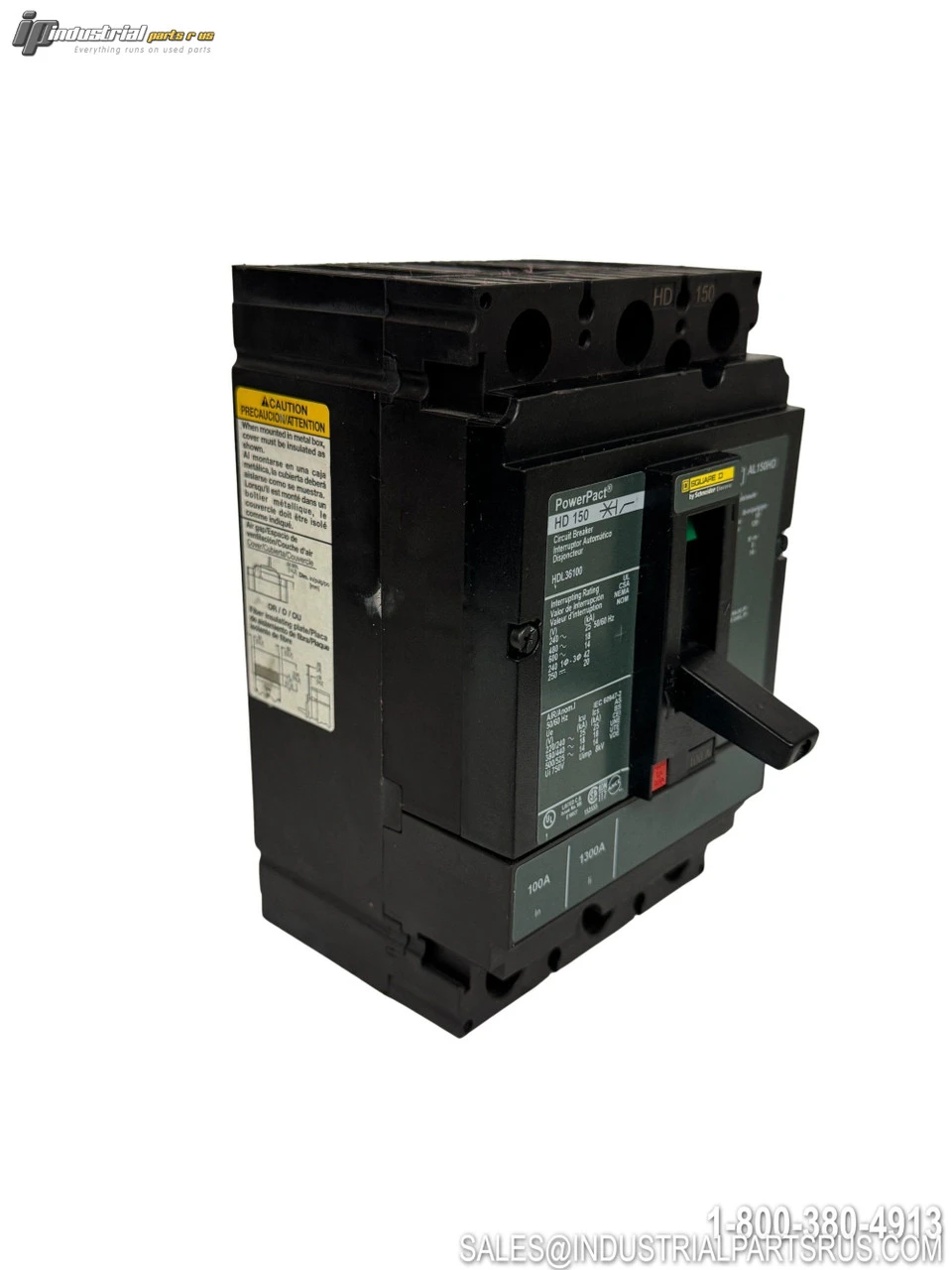

The Square D HDL36100 is a PowerPact H-Frame molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This 100 amp, 3-pole thermal magnetic breaker features dual-break rotating contacts and is suitable for industrial and commercial applications with feed-through mounting configuration.
Specification
Value
Brand
Square D
Model/Part Number
AL150HD
Product Type
Mechanical Lug Terminal Kit
Series
PowerPact
Current Rating
15-150A
Wire Range
14-3/0 AWG
Material
Aluminum
Compatible Frames
H-frame, J-frame, L-frame
Conductor Type
Aluminum or Copper
Quantity per Kit
3 lugs
Kcmil Size
500 kcmil
Tightening Torque
44.25 lbf.in (5 N.m)
Standards Compliance
CSA & UL
Mounting Type
I-Line, Unit mount
Location
Downstream
We warranty all items for 30 days from date of purchase.
| Weight | 4.00 LBS | 4.00 LBS |
SKU: AI1203
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: I-Line, Unit Mount
Current Rating: 15-150A
Material: Aluminum
Full Load Amps: 100A
Application: Circuit Breaker Connection
Manufacturer: Square D
Part Number: HDL36100
Shelf: J-6
Model: HDL36100
MPN: HDL36100
Type: Circuit Breaker
