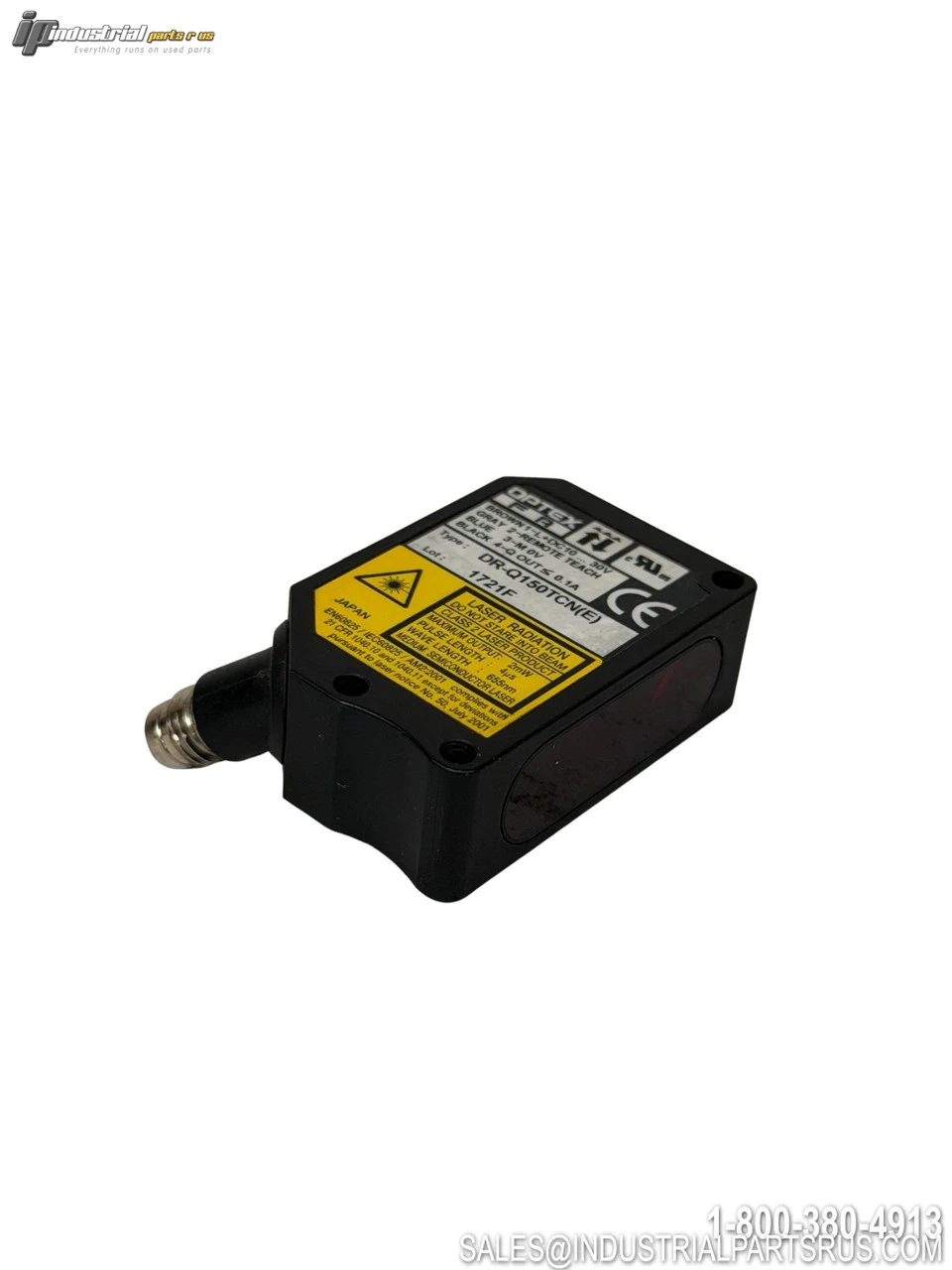

USED OPTEX DR-Q150TCN(E)

The Optex DR-Q150TCN(E) is a transparent object detection photoelectric sensor featuring coaxial laser beam technology for precise detection of transparent materials including PET, glass, and plastic films. This retro-reflective sensor uses a red semiconductor laser with excellent repeat accuracy for demanding transparent detection applications.
Specification
Value
Brand
Optex
Model/Part Number
DR-Q150TCN(E)
Series
DR-Q
Sensor Type
Photoelectric
Sensing Mode
Retro-reflective Coaxial
Sensing Range
0 to 1.5 m
Light Source
Red Semiconductor Laser Class 2
Wavelength
650 nm
Maximum Output Power
2 mW
Pulse Width
4 μs
Spot Size
Approx. ø15 mm at 1.5m
Output Type
NPN Open Collector
Current Type
DC
Maximum Current
100 mA
Supply Voltage
10V - 30V DC
Response Time
Selectable: 0.35ms, 0.7ms, 2ms, 5ms
Repeat Accuracy
0.3 mm
Connection Type
M8 4-wire Quick Disconnect
Termination Type
Quick Disconnect
Mounting Type
Bracket Mount
Threshold Adjustment
Teaching Method with Manual Fine Adjustment
Indicators
Orange LED Output, Green LED Laser, Digital Display
Features
AGC Circuit, Automatic Sensitivity Compensation
Application
Transparent Object Detection - Glass, PET, Plastic Films
We warranty all items for 30 days from date of purchase.

SKU: AI1207
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: NPN
Sensor Type: Photoelectric
Manufacturer: Optex
Part Number: DR-Q150TCN(E)
Shelf: Q-5
Model: DR-Q150TCN(E)
MPN: DR-Q150TCN(E)
Type: Photoelectric Sensor
