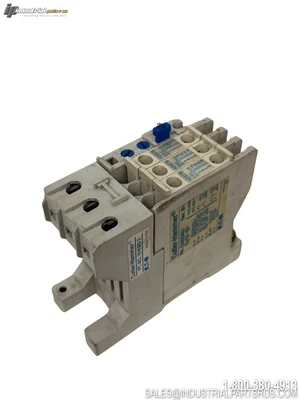

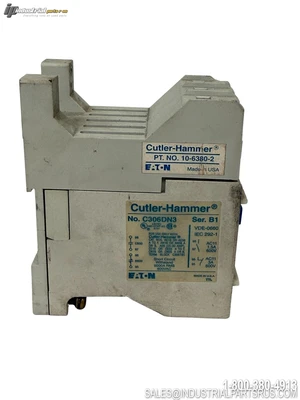

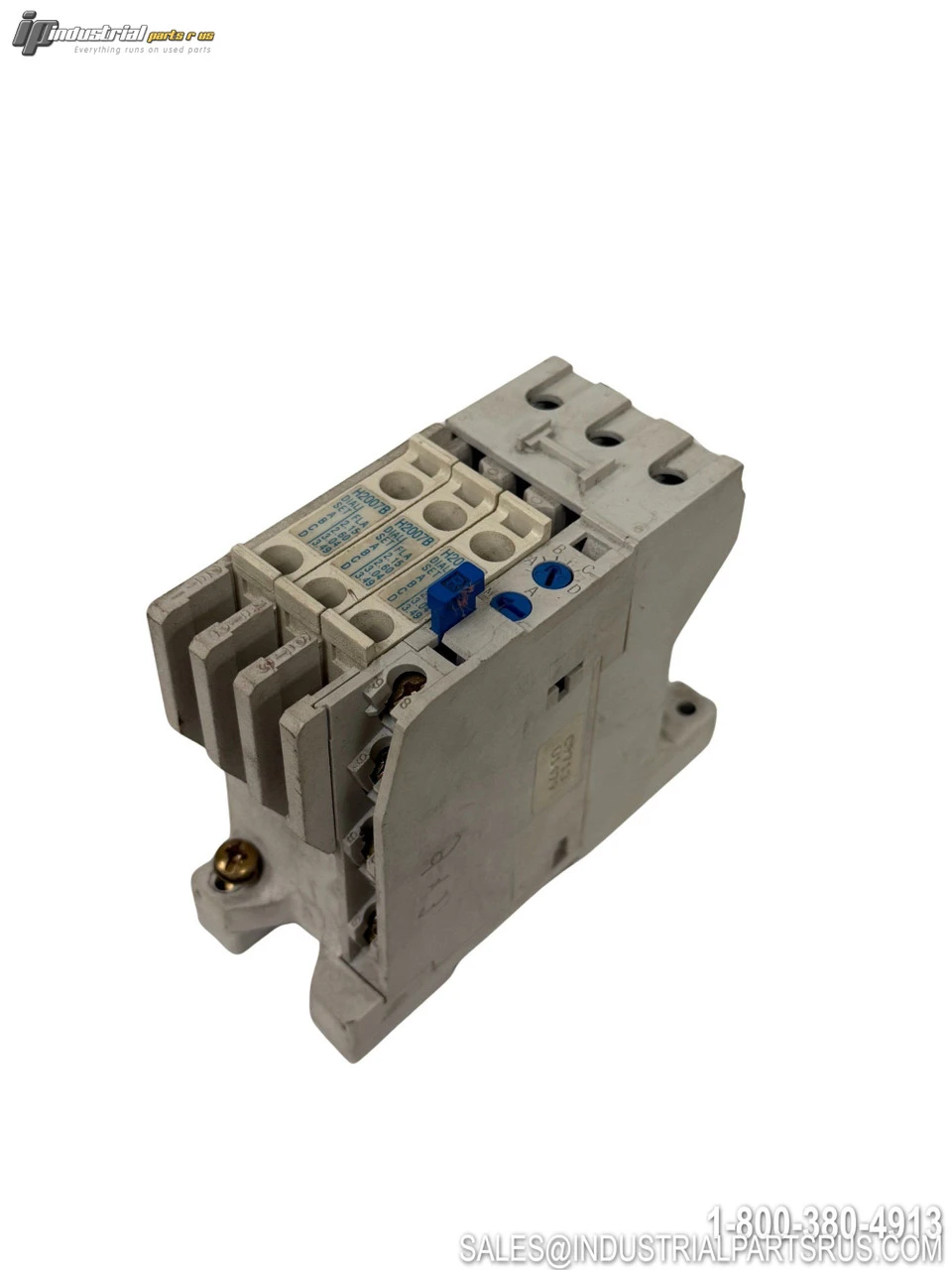

USED CUTLER-HAMMER C306DN3

The Cutler hammer C306DN3 is a professional-grade thermal overload relay designed to provide motor protection against overload conditions. This 3-pole relay features a maximum current rating of 32 amps and operates at up to 600VAC, making it suitable for industrial motor control applications with NEMA size 00 and 0 starters.
Specification
Value
Brand
Cutler hammer
Model/Part Number
C306DN3
Manufacturer
Eaton Corporation
Type
Thermal Overload Relay
Poles
3
Maximum Current
32A
Maximum Voltage
600VAC
NEMA Size
00, 0
Reset Type
Manual/Automatic
Contact Configuration
1NO-1NC
Terminal Type
Screw Terminal
Wire Gauge
14-6 AWG
Operating Voltage
120VAC
Enclosure Type
Open Type
Dimensions
45mm x 104mm x 93.7mm
Weight
1.0 lbs (370g)
Trip Mechanism
Eutectic Alloy
Short Circuit Withstand
5000A RMS 600VAC
We warranty all items for 30 days from date of purchase.

SKU: AI1210
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Cutler-Hammer
Enclosure Type: Open Type
Part Number: C306DN3
Shelf: K-51
Model: C306DN3
MPN: C306DN3
Type: Overload Relay
