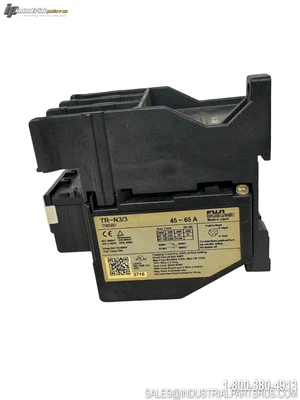

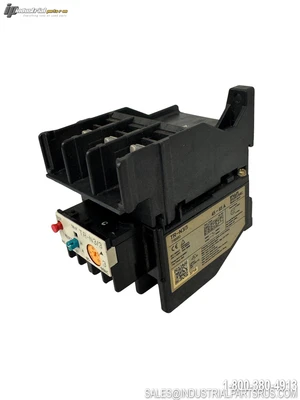

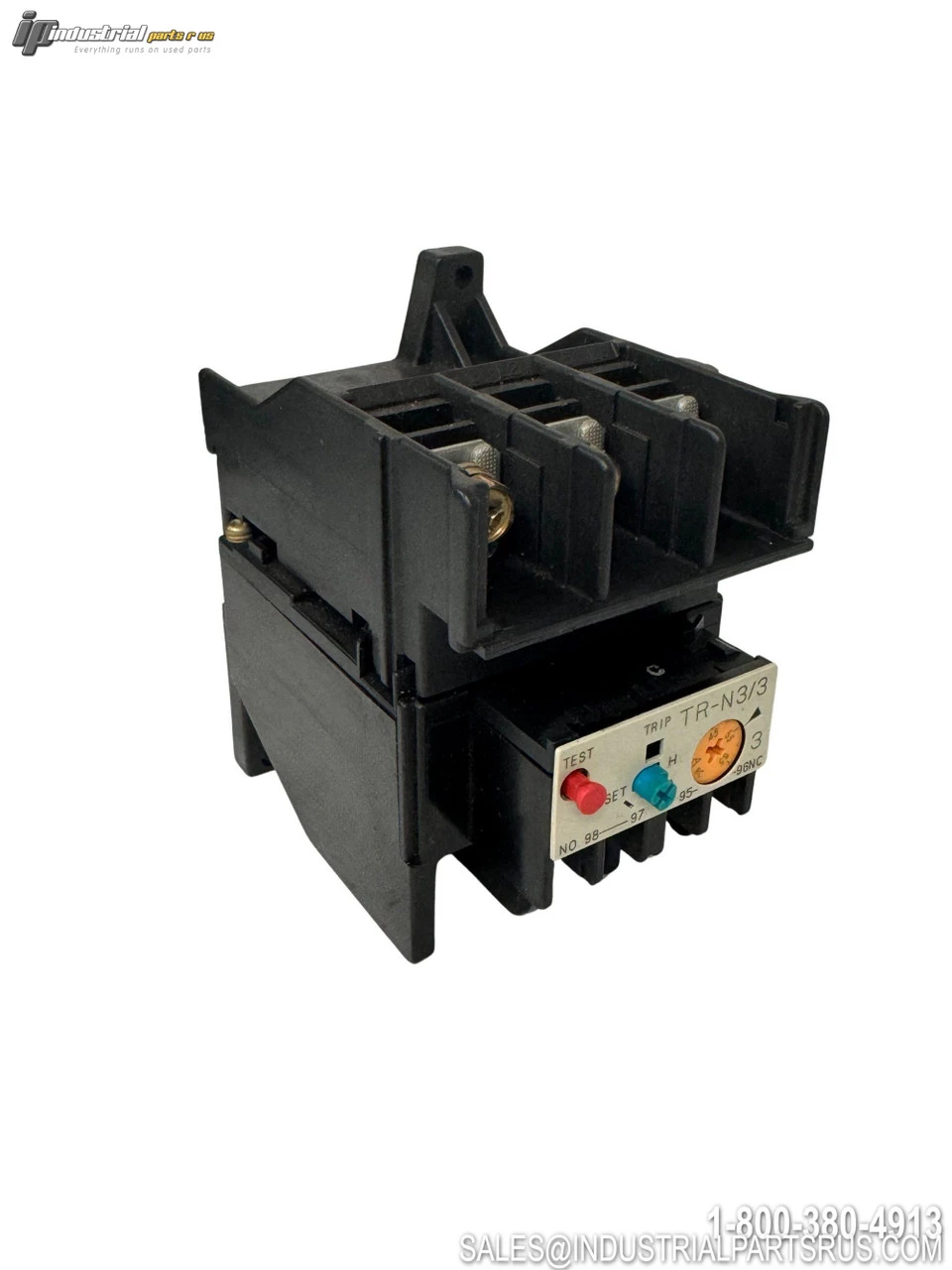

USED FUJI ELECTRIC TR-N3/3
Overview
Description
This Fuji Electric TR-N3/3 is a thermal overload relay designed for motor protection applications. Part of the TR series from Fuji Electric, it provides 3-element protection with adjustable current settings for different amperage ranges. The relay features manual reset operation and is designed to mount with SC-N2S and SC-N3 series contactors.
Specification
Value
Brand
Fuji Electric
Model/Part Number
TR-N3/3
Type
Thermal Overload Relay
Frame Size
N3
Number of Poles
3
Number of Heat Elements
3
Reset Method
Manual
Compatible Contactors
SC-N2S, SC-N3
Available Current Ranges
18-26A, 24-36A, 28-40A, 34-50A, 45-65A
Mounting Type
On-contactor/Separate
Trip Class
Class 10
Standards Compliance
IEC, JIS, JEM
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1220
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 18-26A, 24-36A, 28-40A, 34-50A, 45-65A
Manufacturer: Fuji Electric
Part Number: TR-N3/3
Shelf: C-14
Model: TR-N3/3
MPN: TR-N3/3
Type: Overload Relay
