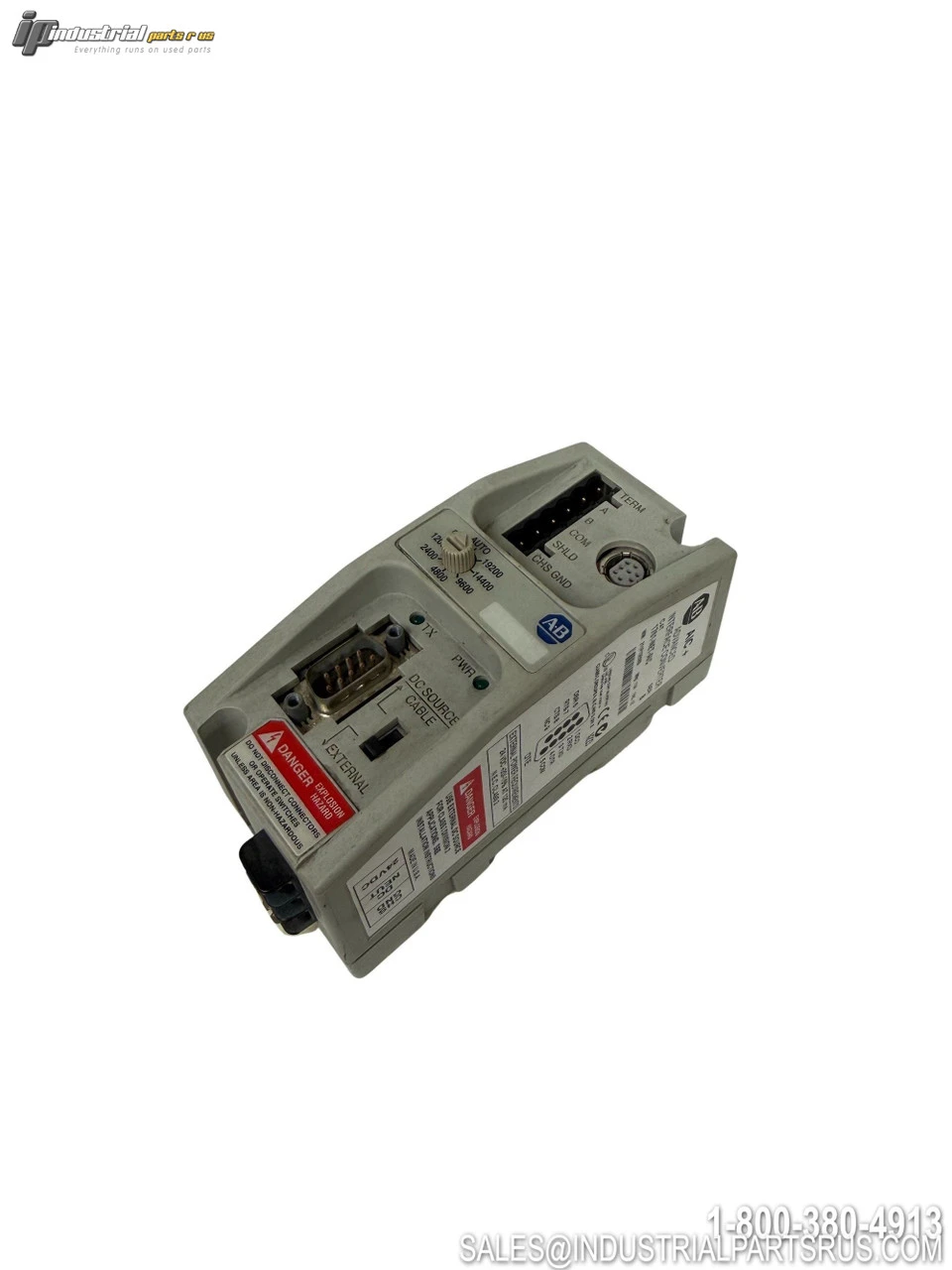

USED ALLEN-BRADLEY 1761-NET-AIC

The Allen-Bradley 1761-NET-AIC is an Advanced Interface Converter (AIC+) designed for connecting DF1-enabled devices to DH-485 communication networks. This module provides electrical isolation and serves as a communication bridge between MicroLogix controllers, SLC processors, and other network devices with flexible connection options.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1761-NET-AIC
Product Type
Advanced Interface Converter (AIC+)
Platform
MicroLogix 1000
Supply Voltage
24VDC
Current Draw
120mA
Communication Ports
2 RS-232 Ports, 1 DH-485 Port
RS-232 Connectors
DB-9 and 8-Pin Mini-DIN
Isolation
500VDC
Communication Protocol
DF1, DH-485
Compatible Controllers
MicroLogix 1000/1200/1500, SLC 5/01-5/05
Power Source
External 24VDC or Communication Cable
Application
Point-to-Point Isolator, RS-232 to RS-485 Converter
Maximum Network Length
1219m (4000ft)
Maximum Nodes
32 per Network
Weight
0.40 lbs
Lifecycle Status
Discontinued (Dec 2016)
We warranty all items for 30 days from date of purchase.

SKU: AI1230
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 120mA
Manufacturer: Allen-Bradley
Part Number: 1761-NET-AIC
Controller Platform: MicroLogix 1000
Shelf: F-3 Tub 9
Model: 1761-NET-AIC
MPN: 1761-NET-AIC
Type: Communication Module
