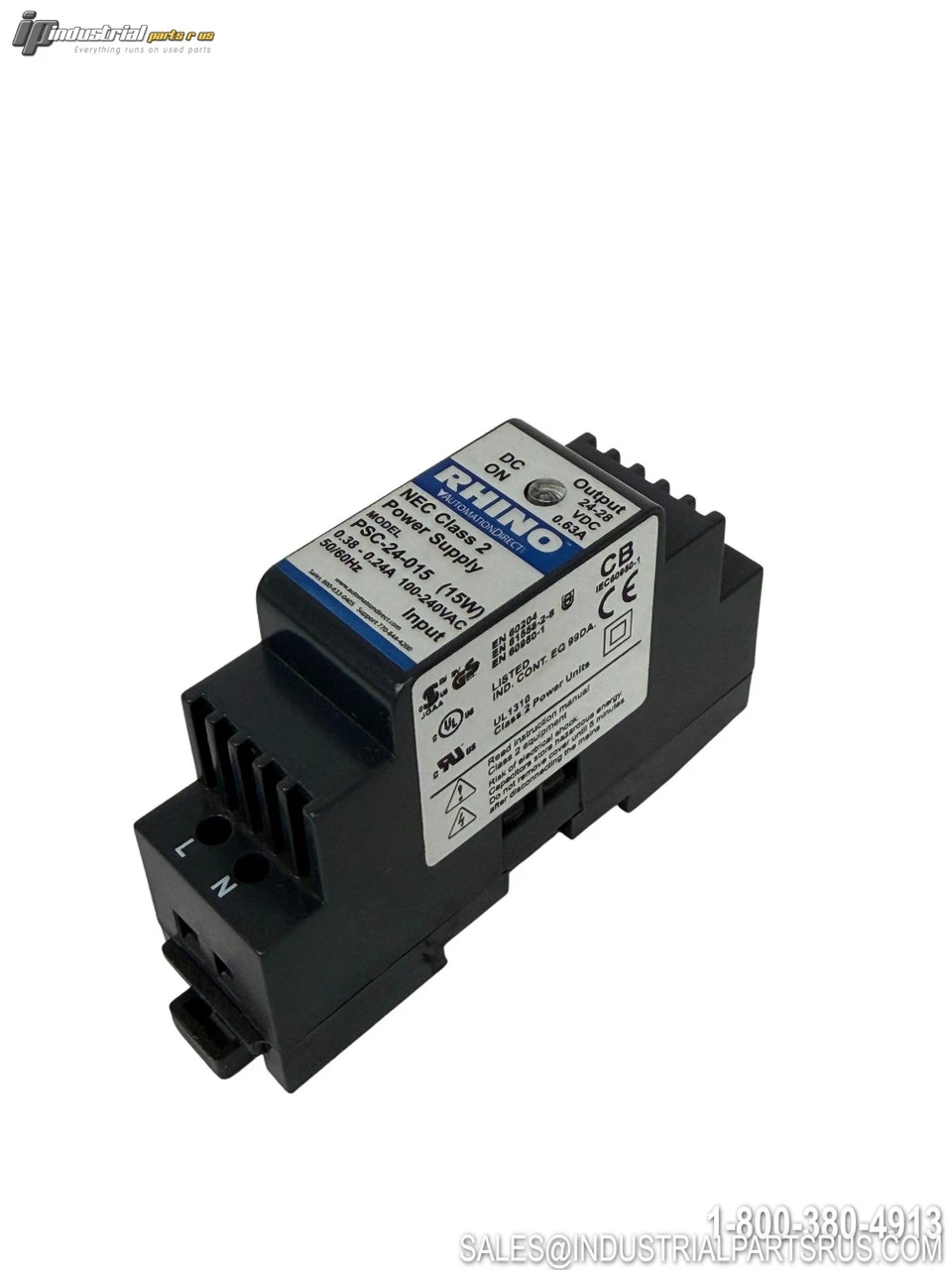

USED RHINO PSC-24-015

The Rhino PSC-24-015 is a compact switching power supply designed for industrial applications requiring reliable 24VDC power. This unit features adjustable DC output, universal AC input voltage, and integrated DIN rail mounting for easy installation in control panels.
Specification
Value
Brand
Rhino
Model/Part Number
PSC-24-015
Type
Switching Power Supply
Series
PSC
Output Voltage
24.0 VDC
Output Current
0.63 A
Output Power
15 W
Output Voltage Range (Adjustable)
24.0 to 28.0 VDC
Input Voltage (Nominal)
100-240 VAC
Input Voltage Range (Universal)
85-264 VAC
Input Frequency
47-63 Hz
Phase
1-Phase
Efficiency
83%
Mounting Type
35mm DIN Rail Mount
Enclosure Type
Enclosed Plastic Housing
Terminal Type
Screw Terminals
Safety Class
NEC Class 2
Width
26.3 mm (1.04 inches)
Weight
3.53 oz (100 g)
Protection Class
Class II to IEC/EN 60536
IP Rating
IP20
Features
DC-OK LED Indication, Adjustable Output, Current Limitation
We warranty all items for 30 days from date of purchase.

SKU: AI1208
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Rhino
Enclosure Type: Enclosed Plastic Housing
Part Number: PSC-24-015
Shelf: K-46
Model: PSC-24-015
MPN: PSC-24-015
Type: Switching Power Supply
