Used Mueller 5,700 Gallon Jacketed Pressure Tank | 21,000 Liter Stainless Steel Fermentation Vessel

Manufacturer: Mueller
Model: F
Equipment Type: Jacketed Pressure Tank / Fermentation Vessel
Previous Use: Brewing Beer
Condition: Used
Year Built: 2008

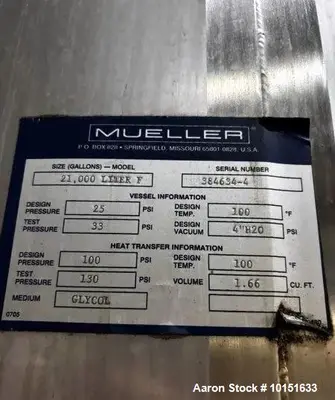

Serial Number: 384634-4

Description

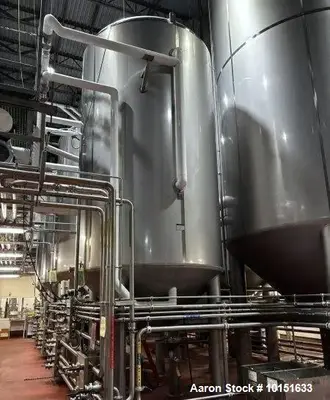

Used Mueller 5,700 gallon (21,000 liter) stainless steel jacketed pressure tank, Model F, designed for brewery fermentation and sanitary liquid processing. This vertical vessel is constructed from 304 stainless steel and features a dished top and cone bottom for efficient fermentation, yeast collection, and complete product discharge. The tank includes a 16" bottom manway with a 3" center bottom outlet (CBO) for easy access and cleaning. Rated at 25 psi internally with a 100 psi jacket rating, this unit provides excellent temperature control and durability for demanding brewing and beverage applications.

Specifications

Manufacturer: Mueller
Model: F
Capacity: 5,700 gallons (21,000 liters)
Type: Jacketed pressure tank / fermentation vessel
Orientation: Vertical
Inside Diameter: 95"
Straight Side Height (T/T): 155"
Overall Height (OAH): 268"
Material: 304 stainless steel
Top: Dished
Bottom: Cone bottom
Internal pressure rating: 25 psi at 100°F
Jacket pressure rating: 100 psi at 100°F
Manway: 16" bottom manway
Outlet: 3" center bottom outlet (CBO)
Previous service: Brewing beer
Serial #: 384634-4
Year built: 2008

Applications
Ideal for brewery fermentation and other sanitary liquid processing operations requiring pressure-rated, temperature-controlled vessels.

Products This Equipment Would Be Used For

Beer fermentation
Craft beer production
Lager conditioning
Ale fermentation
Hard cider production
Kombucha fermentation
Hard seltzer production
Wine fermentation
Distillation mash holding
Yeast propagation
