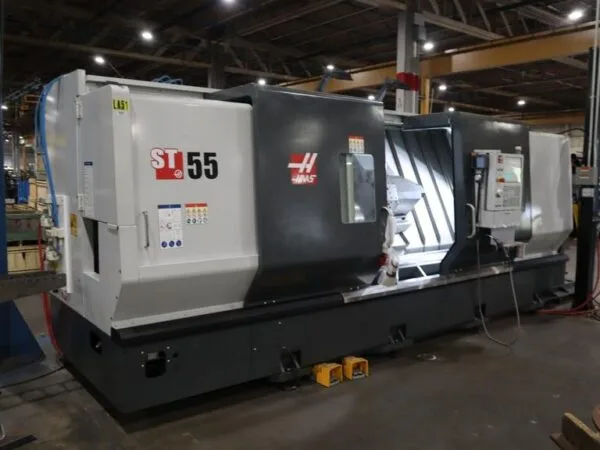

Haas ST-55 – 2023

Haas ST55 CNC Lathe Turning Center
Specification:

Control Haas Next Generation CNC Control

Max Swing Over Bed 34.5″

Max Swng Over Saddle 25.5″

Max Turning Diameter 25.5″

Max Turning Length 80″

Max Bar Capacity 12.5″

Hole Thru Spindle 12.5″

Spindle Nose A1-20 Front and Rear Headstock

Spindle Speeds 1,000 Max RPM

Number of Steps 2-Speed Gearbox

Turret Capacity 12 Stations

Turret Travels (X,Z) 17.0″ x 8.0″

Rapid Traverse Rate (X/Z) 710 / 320 IPM

Tailstock? Yes

Tailstock Quill Diameter / Taper #6MT

Spindle Drive 55 HP

Approximate Machine Dimensions: 265.00″L x 102.00″W x 99.00″H

Approximate Weight: 31000.00 lbs.

Haas Next Generation CNC Control, 12 Station Automatic Tool Turret, 12.5″ Spindle Bore, Programmable

Tailstock, (2) SMW Big Bore (12.2″ Bore) 26″ Pneumatic Chucks, Hennig Chip Conveyor, 1,000 PSI

Coolant System, Rigid Tapping, 1GB Memory, 8 Spare MFunctions, Cabinet Coolaer, Ethernet Interface,

, High-Intensity Lighting, XL Remote Jog Handwheel – Touchscreen, Spindle Oreintation, WIFI Connect,

(2) Remote Foot Actuators, (2) 3″ Bore Turret Tool Holders, (3) 2.5″ Bore Turret Tool Holders, (1) Bolt-On

Turning Holder, Several Turning Clamps for Turret, Chuck Jaws, Manuals – LIKE NEW ONLY 10 SPINDLE HOURS!
