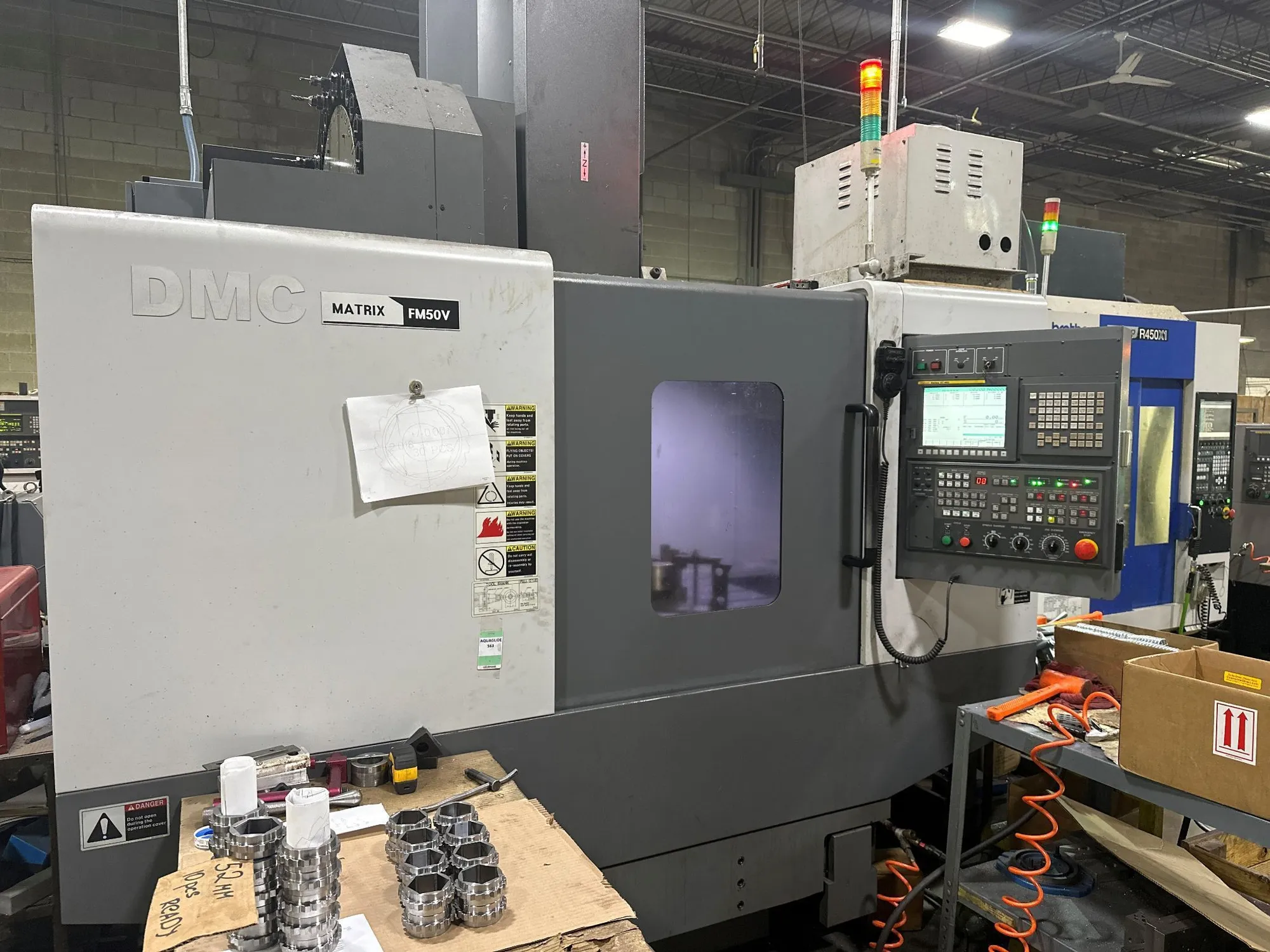

2012 DMC Matrix FM50V Vertical Machining Center with Fanuc Control, 15,000 RPM, CAT-40 Spindle, 30 ATC, Portable MPG, and Chip Conveyor.
| X | 31.49" | 799.85 mm |
| Y | 20.47" | 519.94 mm |
| Z | 20.08" | 510.03 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 37.4" | 949.96 mm |
| Table-L | 21.65" | 549.91 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MD CNC Control) | CNC (Fanuc Oi-MD CNC Control) |
| Weight | 14,500 LBS | 14,500 LBS |
Table Size.....................37.4" x 21.65"
Maximum Table Load.............1,323 LBS
X-Axis Travel..................31.49"
Y-Axis Travel..................20.47"
Z-Axis Travel..................20.08"
Spindle Motor..................30 HP
Spindle Taper..................CAT-40
Spindle Speed..................15,000 RPM
Rapid Traverse Rate X & Y......2362 IPM
Rapid Traverse Rate Z..........1417 IPM
Tool Positions.................30 ATC
Change Time Chip to Chip.......4.3 Sec
Change Time Tool to Tool.......1.8 Sec
Approximate Machine Weight.....14,500 LBS
Fanuc Oi-MD CNC Control
15,000 RPM, CAT-40 Spindle
30 Station Side Mount ATC
Portable MPG
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
