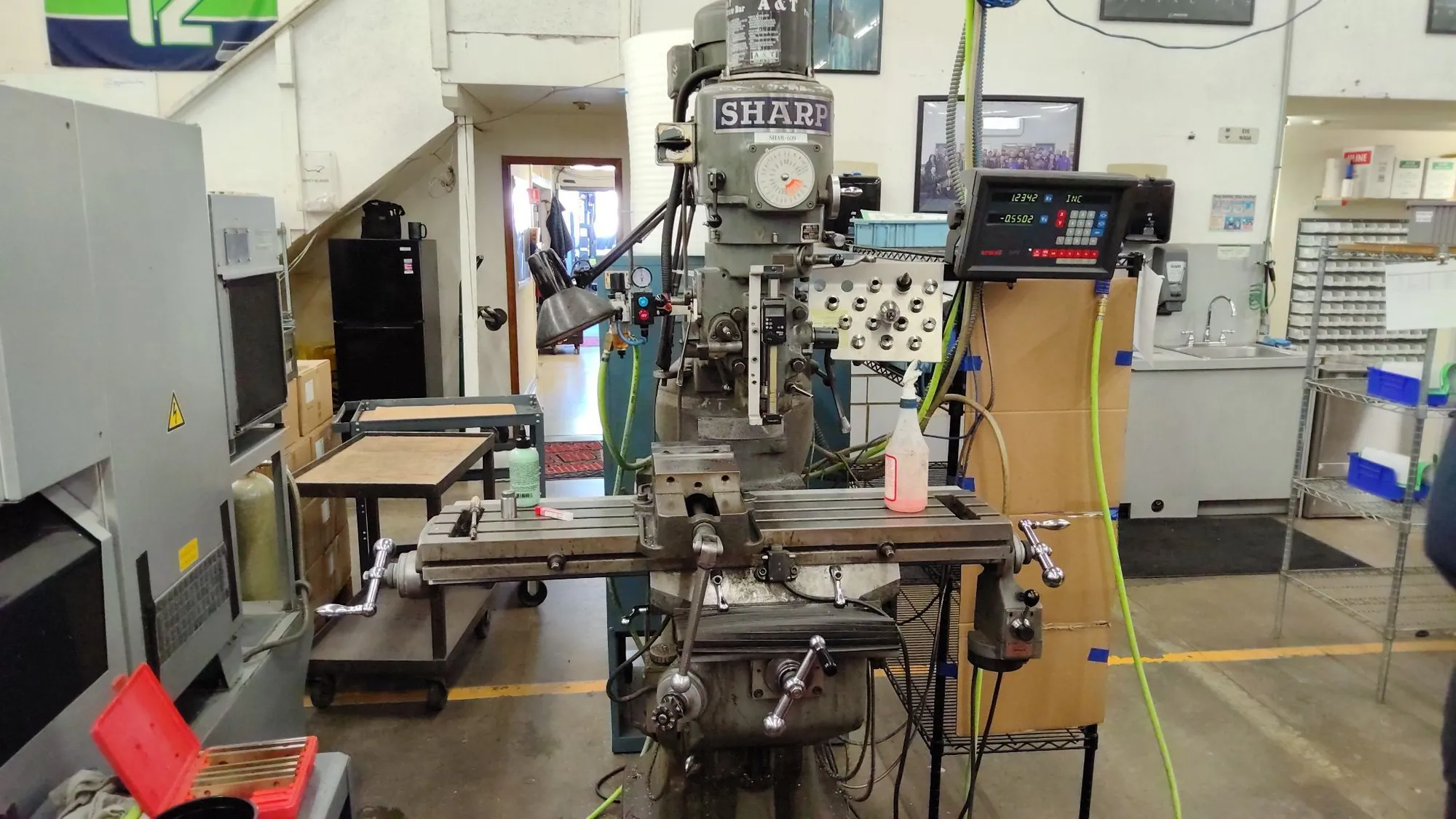

Sharp LMV-42 9" x 42" Vertical Knee Mill
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R8 | R8 |
| Weight | 2400 LBS | 2400 LBS |
Table...................................9" x 42"
T-slots (No., Size).....................3, 5/8"
Table Travel: X Longitudinal ...........30"
Table Travel: Y Cross...................12"
Quill Travel:; Z Vertical...............5"
Ram Travel..............................12"
Knee Travel – Vertical..................16"
Spindle Center to Column................6.75" – 18.5"
Spindle Nose to Table Top...............2.125" – 18"
Spindle Nose Taper......................R-8
Spindle Variable Speed Range............60 – 4500 RPM
Spindle Motor (220V/440V)...............3 HP
Quill Feed (inch/rev) (3 speeds)........0.0015", 0.003", 0.006"
Quill Diameter..........................3.375"
Head Swivel Angle.......................360°
Head Tilt Angle (L/R)...................45°
Head Tilt Angle (Up/Down)...............45°
Floor Area (W x D x H)..................7' x 6.5' x 6.75'
Approximate Weight......................2,400 LBS
Newall DRO
3HP motor
Variable speed drive (60-4500 rpm)
R-8 spindle
Dual cooling fans
Meehanite casting
Chromed ways
Self-lubricating motor shaft extends pulley life
Abec-7 super precision spindle bearings
One short lube system
Hard-chromed ways
Front and rear rubber way covers
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
