USED HEESEMANN LSM
Overview
Specs

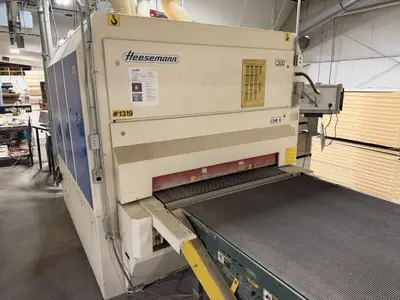

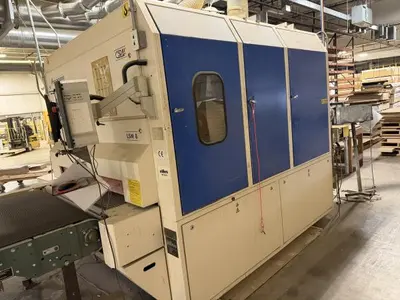

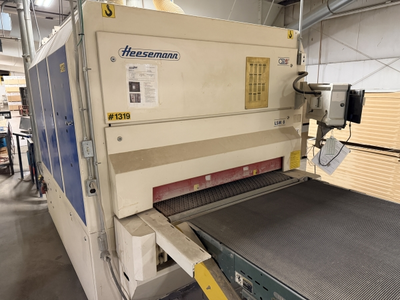

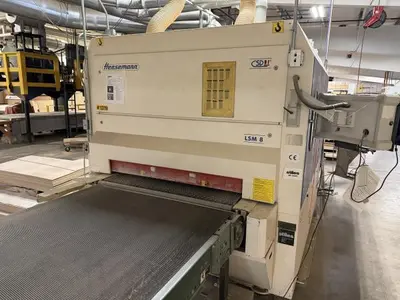

Heesemann Model LSM 8 Four Head Wide Belt Sander
53" wide capacity
1/8" minimum to 5-1/2" maximum thickness capacity

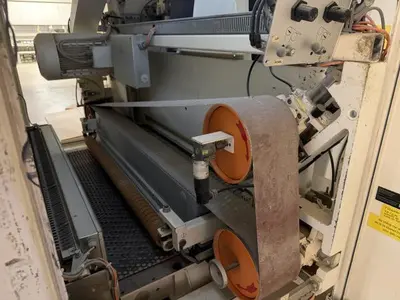

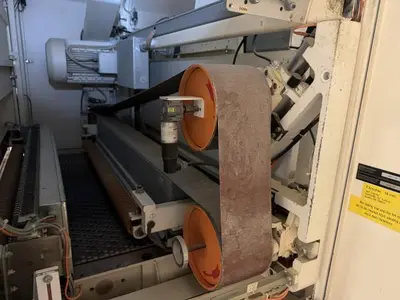

1st HEAD: Cross sanding unit - CSD segmented pad with chevron belt 2-speed motor - 20/26 HP motor
Abrasive belt size - 6" x 189"
Sanding belt speed - 39/78 FPS
Electronic braking

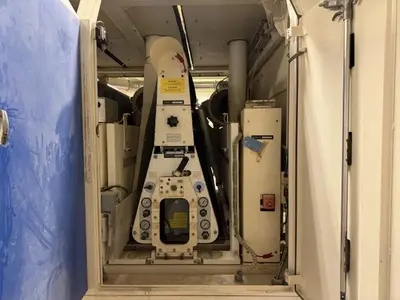

2nd HEAD: Wide belt sanding unit - CSD PLUS segmented pad with inverter controlled motor for sealer sanding
Abrasive belt cleaning
53" x 103" abrasive belt size
25/28.5 HP motor
Sanding belt speed - 6.5 to 65 FPS

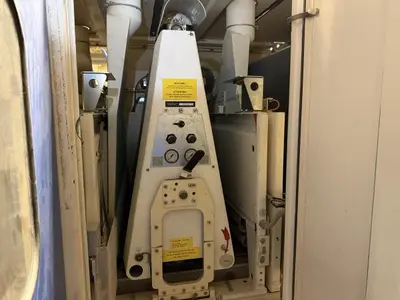

3rd Head: Wide belt sanding unit - CSD PLUS segmented pad with inverter controlled motor for sealer sanding
53” x 103” Abrasive belt size
Motor 17.5/23HP; 1800/3600 RPM
4th HEAD: Panel cleaning brush with 150 mm diameter brush
2.3 HP single speed motor on cleaning brush
TFT color touch screen control (not working). Replaced with standard computer screen
10 HP feed motor inverter controlled for feed speeds from 10 to 50 FPM
Approx. 12 HP vacuum blower for vacuum bed
34.65" constant passline
Electrical requirements: 157 full load amps on 480 volt
Weight: 17,600 lbs

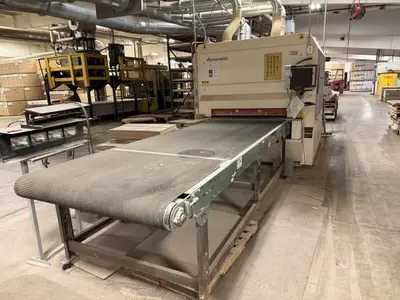

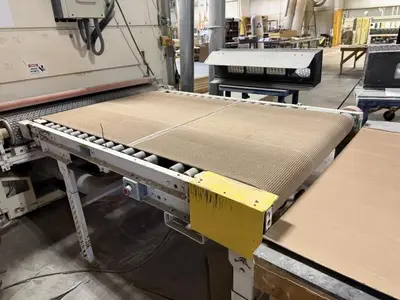

Includes Hytrol Infeed Conveyor 52” Wide x 144” Long with approx. 1/2HP Motor and Outfeed Conveyor 43” Wide x 65” Long with approx 1/2HP Motor

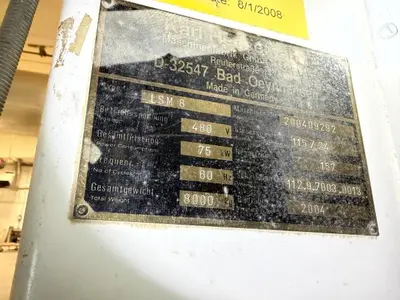

Serial No. 200409292
New in 2004
