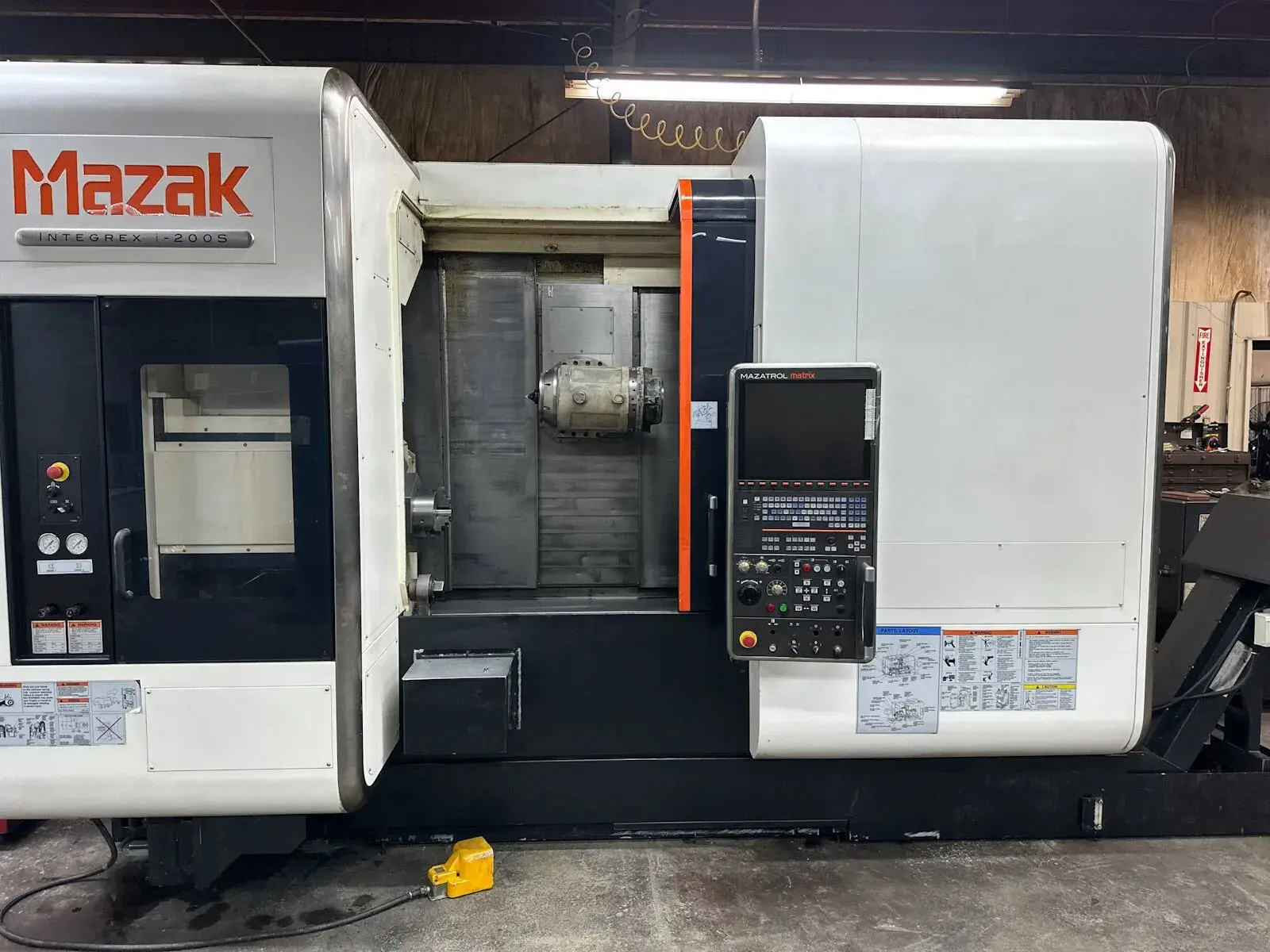

Used 5-axis CNC lathe with 25.9" swing and 39.8" machining length. Features Mazatrol Matrix 2 control, 36 ATC, chip conveyor, and high-pressure coolant.
| # Axis | 5 | 5 |
| Swing | 25.9" | 657.86 mm |
| Machining Length | 39.8" | 1,010.9 mm |
| Chuck Size | 8" | 203.2 mm |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Control | CNC (Mazatrol Matrix 2) | CNC (Mazatrol Matrix 2) |
Swing 25.9"
Machining Length 39.8"
Spindle Speed 5,000 RPM (2nd Spindle), 5,000 RPM (Main Spindle)
Rotary Speed 12,000 RPM
Spindle Bore 3"
Chuck 8"
Control Mazatrol Matrix 2, 36 ATC, 5-Axis Machining Package, Chip Conveyor, Mazak Super Flow V8 High Pressure Coolant (1000 PSI)
