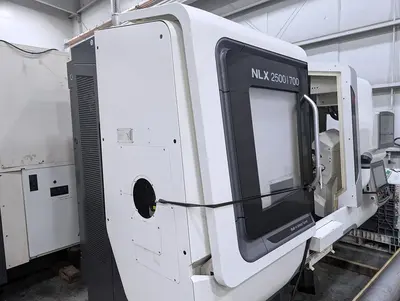

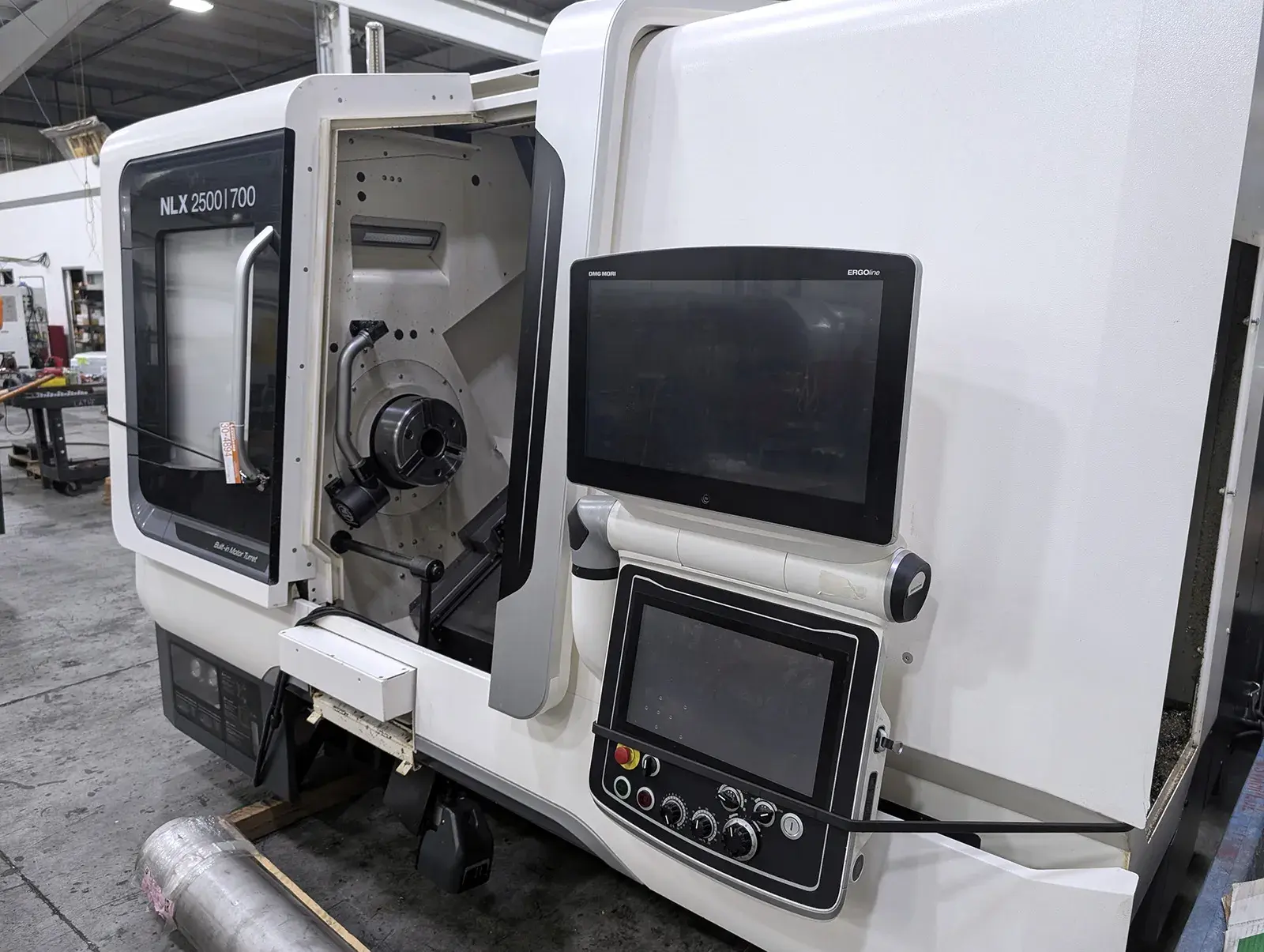

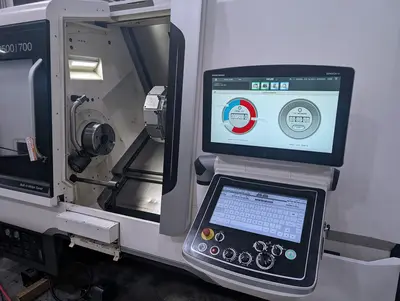

USED 2022 DMG Mori NLX 2500SY/700

The DMG MORI NLX 2500 | 700 is a high-performance CNC mill-turn center featuring Y-axis, sub-spindle, and BMT live tooling for complete part machining in a single setup. Built with rigid box ways and thermal stability, it delivers excellent accuracy and reliability for precision manufacturing.

Equipped with 10,000 RPM live tooling, high-pressure coolant, chip conveyor, parts catcher, and bar feeder interface, this machine is ideal for high-production and lights-out operations.

Also, this machine includes an extended transferable warranty through 2027, providing added value and peace of mind.

Swing over Bed: 36.2"
Swing over cross slide: 29.2"
Max Turning Diameter: 14.4"
Max Turning Length: 27.7"
Bar Capacity: 3.15"
Main Spindle Speed: 4,000 RPM
Main Spindle Nose: A2-8
Main Spindle Bore: 3.58"
Sub Spindle Speed: 5,000 RPM
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.87"
Axes Travel (X / Z / Y): 10.2" / 31.3" / ±2.0"
Rapid Traverse Rate: 1,181 IPM (X/Z)
Turret: 12-Station BMT
Rotary Tool Speed: 10,000 RPM
Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs
Chuck Size (Main): 12" Kitagawa
Chuck Size (Sub): 8" Kitagawa
Coolant Tank Capacity: 96.6 Gallons
Machine Dimensions (L x W): 131.8" x 82.9"
Machine Weight: Approx. 13,500 lbs

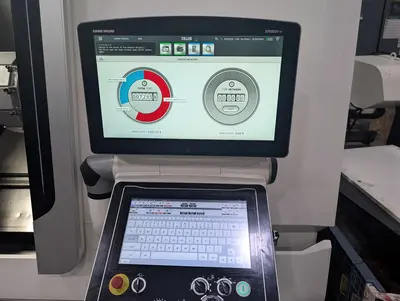

Mitsubishi M730UM with CELOS (MAPPS V)v
Extended Transferable Warranty - Expires in 2027
Sub Spindle (5000 RPM
2.87" bore)
Y-Axis Capability (±2.0")
BMT Turret with Live Tooling
Rotary Tool Spindle (10000 RPM)
12" Hydraulic Chuck (Main)
8" Kitagawa Hydraulic Chuck (Sub)
High-Pressure Coolant System (116 PSI)
Hinge-Type Chip Conveyor (Right Discharge).
Coolant Gun
Built-In Parts Catcher / Workpiece Unloader
Workpiece Conveyor System
Bar Feeder Interface
Tool Presetters
MPG Handwheel
No Tooling included
