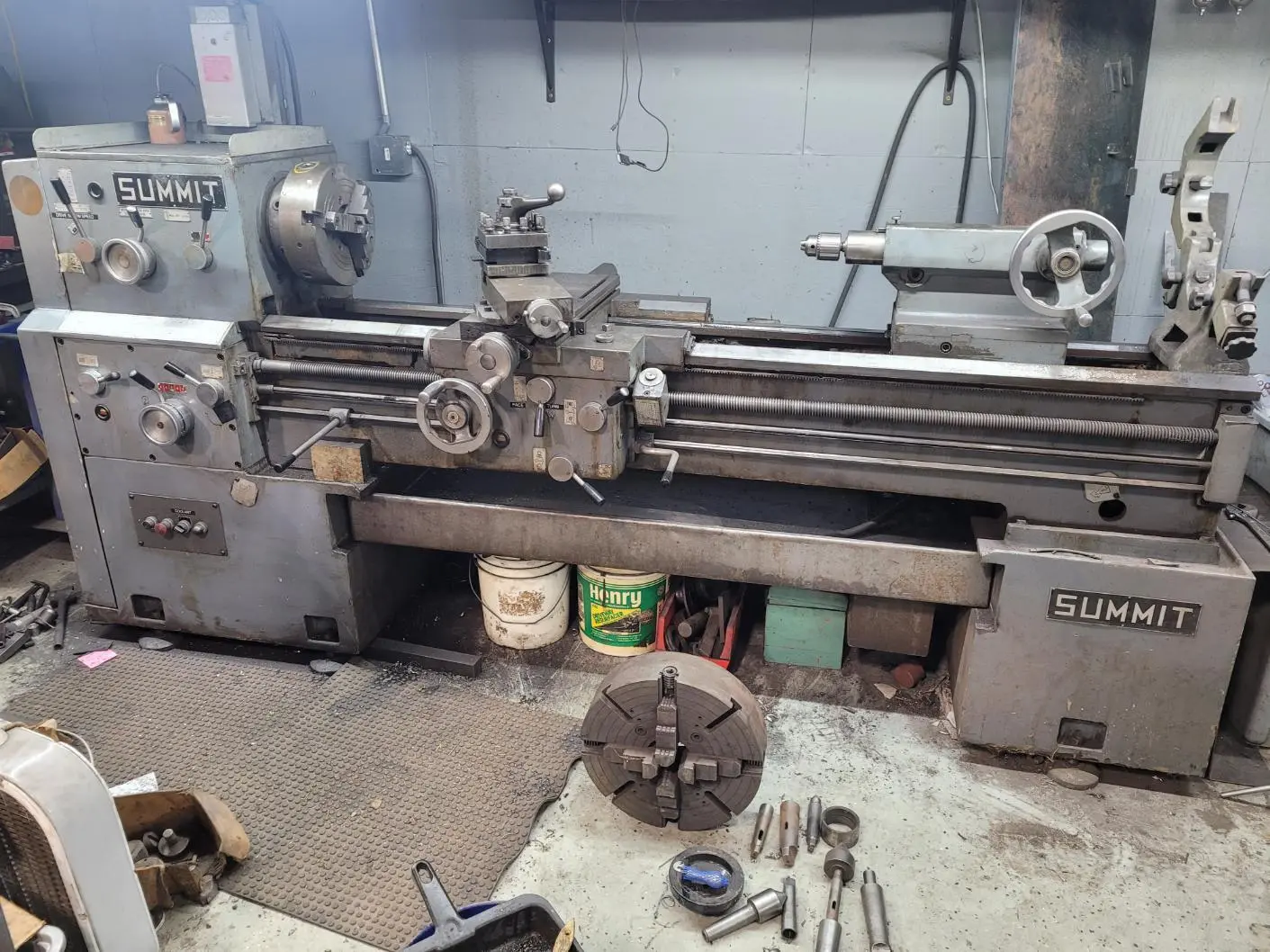

USED SUMMIT 19-4

Manual Engine Lathe
OEM: Summit Machine Tool Manufacturing Corp.
Model: 19-4"
Electrics: 220 Volt, 60 Cycle, 3 Phase
Main Motor: 7.5 / 10 HP

Features and Specifications:
...Swings:
......Over Bed: 19"
......Over X-Slide: 10-3/4"
......Gap: 27"
...Gap Length: 15-3/8"
...Spindle Specs:
......Spindle Bore: 4-1/8"
......Speeds (12): 22 - 1500 RPM
......D1-8 Camlock Nose
......Main Spindle Taper: L2
...Lead Screw Spindle Diameter: 1-3/8"
...Lead Screw Spindle Pitch: 4 TPI
...Steady Rest Diameter Range: 19/32" - 7"
...Distance Between Centers: 60" or 80"
...Threading: Inch/Metric Capable
...Tailstock Specs:
......No. 5 MT
......Stroke: 8-7/8"
...Tooling (see pics):
......16" 4-Jaw Chuck
......12" 3-Jaw Chuck
......Steady Rest
......Centers
...Manuals

Overall Dimensions (approx.): 117" x 60" x 70"
Machine Weight (approx.): 8,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a shop in the Portland, OR Metro Area. The machine is under power and available for lookie loos. It is a good runner. Video imbedded in this advertisement. Comes with (2) chucks, steady rest, and selection of centers. Not sure if centers are 60" or 80". I did not measure but rather relied on the pictures sheet showings machine specifications. Need to confirm this dimension.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is presently under power; available for inspection.
Seller can load onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
