USED GRIZZLY G4003G
Overview
Description
GRIZZLY G4003G Engine Lathe available. Manufactured by GRIZZLY, this reliable model caters to your precision machining needs. In used condition, ideal for those seeking robust performance in a cost-effective package. Competitive pricing.
Specifications
| Swing | 12" | 304.8 mm |
|---|---|---|
| Centers | 36" | 914.4 mm |
| Spindle Bore | 1.5625" | 39.688 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 1,400 RPM | 1,400 RPM |
| Swing Over Cross Slide | 7" | 177.8 mm |
| Dimensions | 67-1/2 W x 26 D x 54-1/2 H | 67-1/2 W x 26 D x 54-1/2 H |
| Weight | 1330 lbs | 1330 lbs |

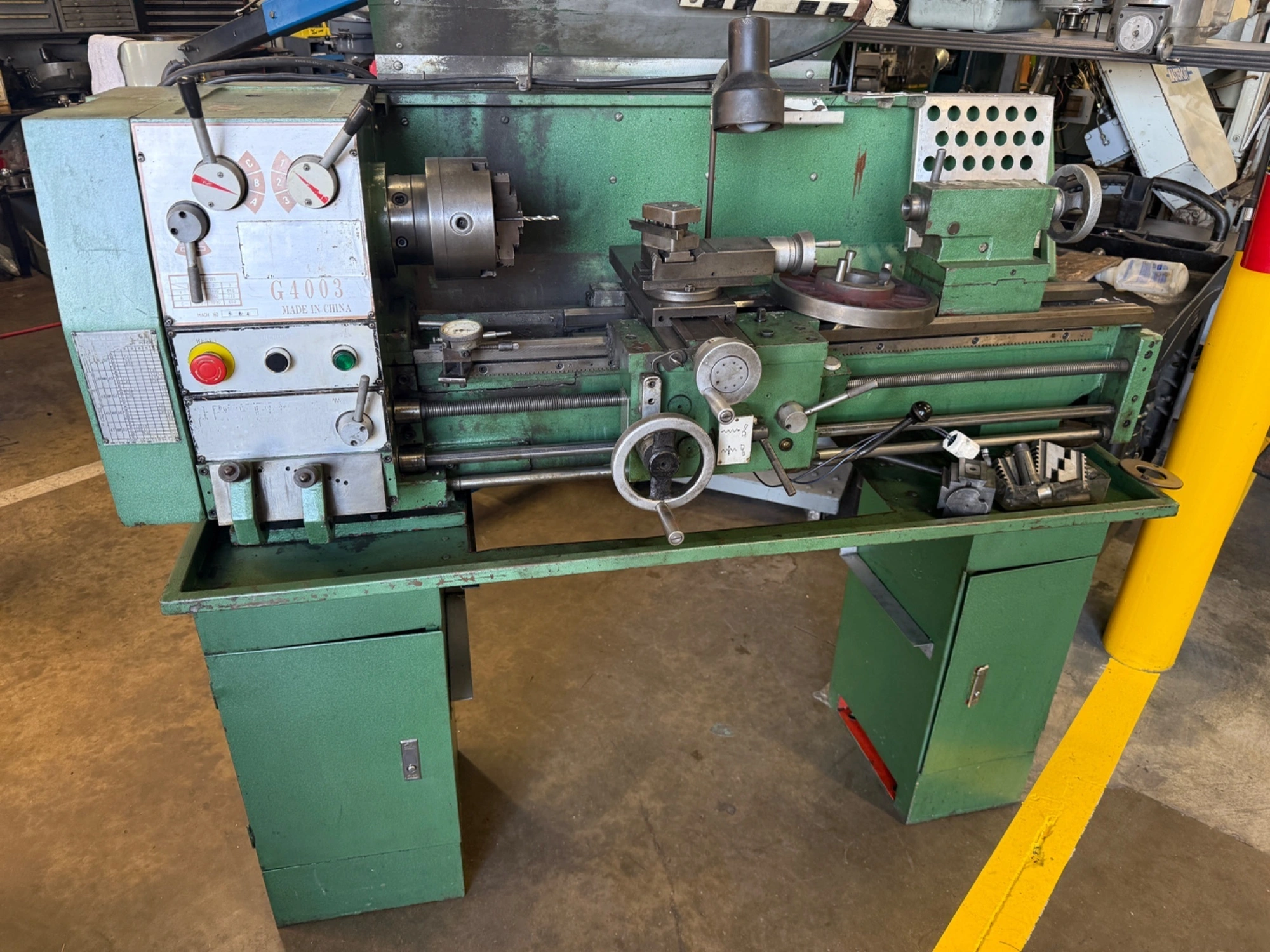

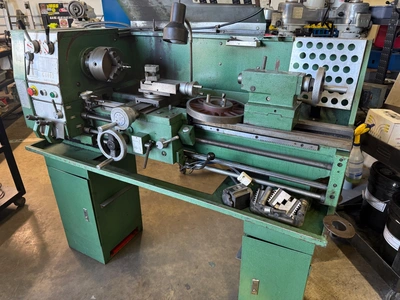

GRIZZLY G4003G Engine Lathe #8182 #2
SPECIFICATIONS:
Swing over bed: 12"
Distance between centers: 36"
Swing over saddle: 11-11/32"
Swing over cross slide: 7"
Spindle bore: 1-9/16" (40mm)
Spindle nose taper: MT#5
Spindle nose: D1-5 Camlock
Spindle speeds: 9, 70–1400 RPM
Compound travel: 3-1/4"
Carriage travel: 30-1/2"
Cross slide travel: 6-1/4"
Tailstock barrel taper: MT#3
Tailstock barrel travel: 4"
Motor: 2 HP, 220V, single-phase, 8.5A
Overall dimensions: 67-1/2" W x 26" D x 54-1/2" H
Approximate shipping weight: 1330 lbs.
