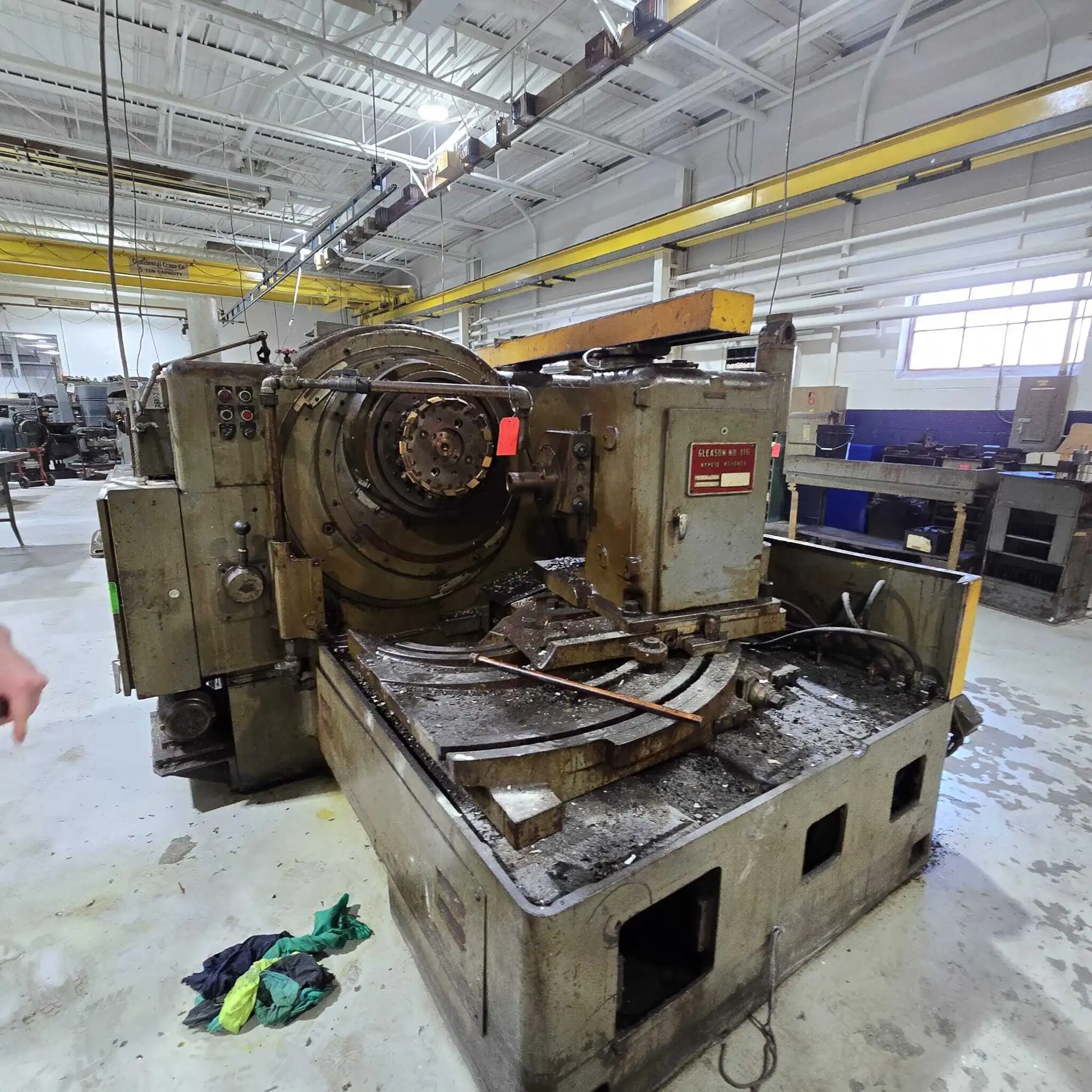

USED GLEASON 116

Gleason Hypoid Roughing machines
Model 116
s/n 617315
in plant under power in very good condition
check videos on website

machine specifications:
Cone Distance Maximum 9"
work Head Angle -12 deg to 90 deg
Extreme Ratio any practical ratio
Min Ratio for Pinions operate w/Formate cutters 2 to 1
Max Gear Pitch Diameter: (30 deg spiral angle)
10 to 1 ratio 18"
2 to 1 ratio 16"
1 to 1 ratio 12.75"
Face Width Maximum 2.75"
number of Teeth 5-150
Diametral Pitch coarsest 2 / 12.7 Mod.

work spindle
Diameter of taper large end 3 29/32"
taper per foot 39/64"
depth of taper 6"
Diameter of hole through spindle 3 1/16"
Diameter of Spindle Nose 5 1/2"
cutter diameters 6", 7.5", 9" & 12"

Work Head Settings
Max offset above center 4.5"
Max offset below center 4.5"
Max dist mach center to spindle nose 13.5"
Min dist mach center to spindle nose 2.5"

machine floor space 75" x 114"
machine weight 23,000 lbs

This machine can be inspected in customers plant with proper notice
under power . The machine can also be loaded into containers for a
nominal fee and quoted for delivery to nearest Ocean port. contact us
today to learn more about our machine or other gear machine
offerings at WWW.PiselliEnt.com or contact Rich Piselli at
[email protected]

thank you
rich Piselli
