Economical and practical: One device meets the dual requirements of cutting pipes and sheets, saving costs and space.
| Working Area | 238 x 100 in. | 238 x 100 in. |
| Sheet-L | 238" | 6,045.2 mm |
| Sheet-W | 100" | 2,540 mm |
| Wattage | 12,000 W | 12,000 W |
| Laser power (Optional) | 1000W / 2000W / 3000W / 4000W / 12000W | 1000W / 2000W / 3000W / 4000W / 12000W |
| Clamping Range | Round pipe Φ20-240mm; Square pipe 口20-240mm | Round pipe Φ20-240mm; Square pipe 口20-240mm |
| Chuck Structure | 240 Pneumatic Chuck | 240 Pneumatic Chuck |
| X/Y Axis Repeat Positioning Accuracy | ±0.02mm | ±0.02mm |
| Specified Voltage and Frequency | 380V 50Hz/60Hz | 380V 50Hz/60Hz |
| Dimensions | 375 x 209 x 90.5 in. | 375 x 209 x 90.5 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

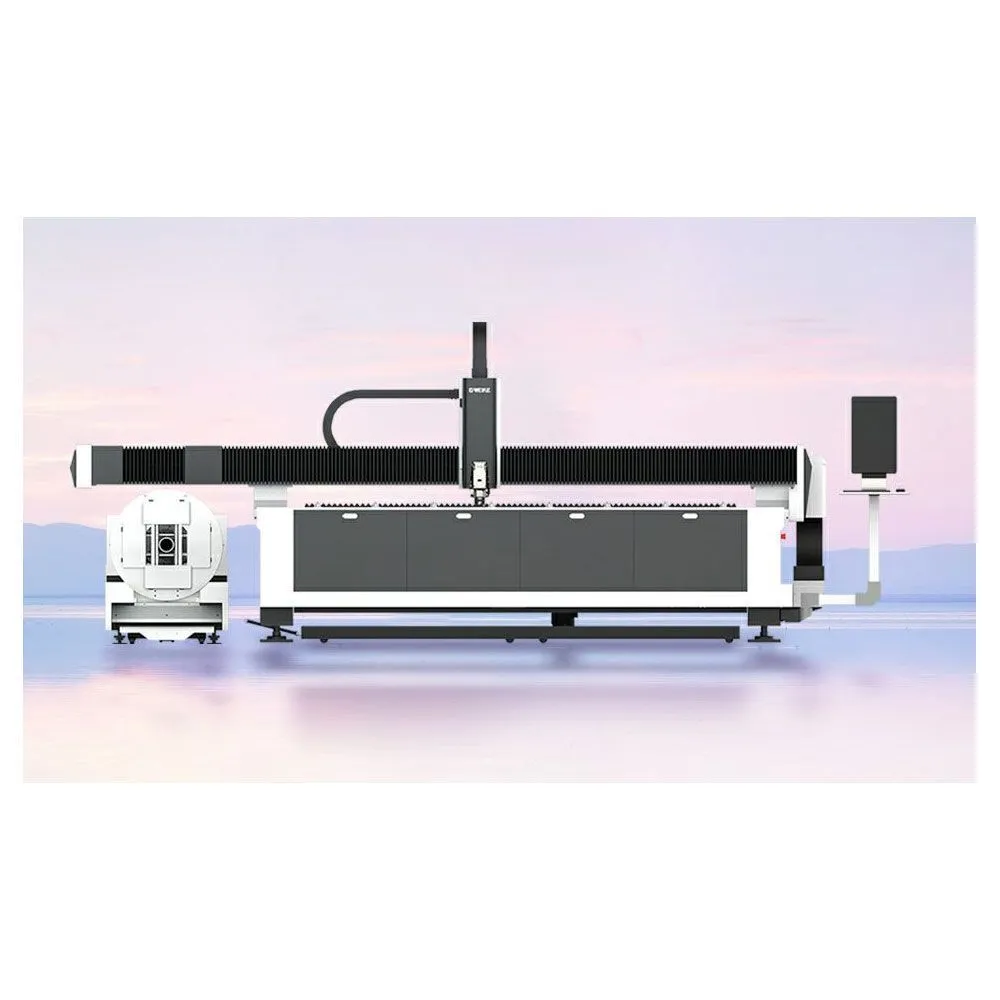

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
