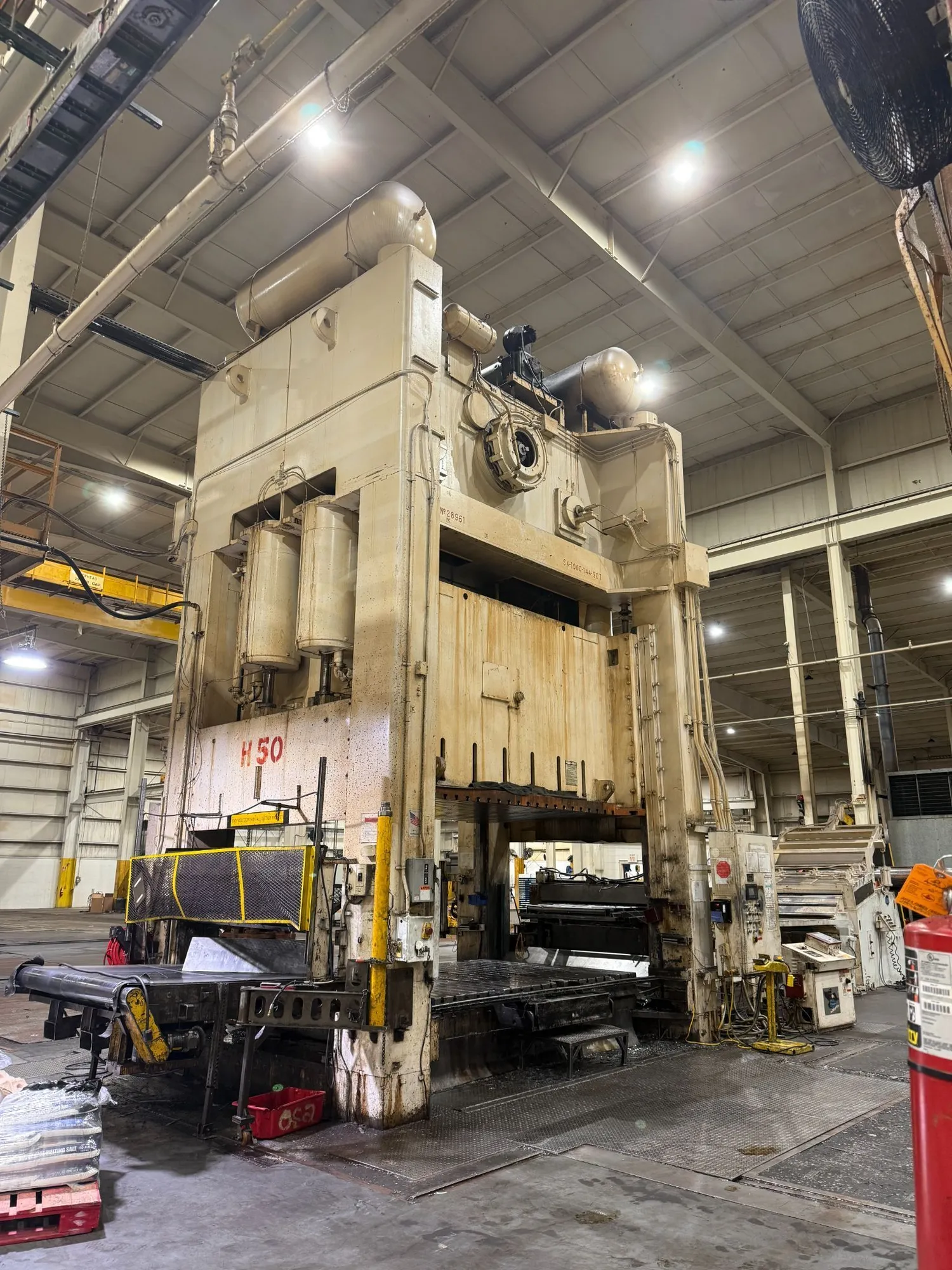

Verson 1000 ton Straight Side Mechanical Press, 144" x 90" Bed Area, 24" Stroke, 10-20 SPM, 70" Shut Height
| Tonnage | 1,000 T | 907.186 t |
| Stroke | 24" | 609.6 mm |
| Shut Height | 70" | 1,778 mm |
| Bed area (Left to right) | 144" | 3,657.6 mm |
| Bed area (Front to back) | 90" | 2,286 mm |
| SPM min. | 10 strokes/min. | 10 strokes/min. |
| SPM max. | 20 strokes/min. | 20 strokes/min. |
| Adjustment | 24" | 609.6 mm |
| Windows Width | 96" | 2,438.4 mm |
Capacity: 1000 Tons
Model Number: SE4-1000-144-90T
Year of Manufacture: 1990
Bed Area: 144” x 90”
Slide Area: 144” x 90”
Stroke: 24”
Adjustment: 24”
Shut Height: 70” over bed SDAU
Shut Height (Over Bolster): 50” over rolling bolster
Shut Height over rolling bolster & bolster: 40”
Strokes per Minute: 10-20
Windows: 96” wide x 72” high
Footprint Dimensions: 197” LR x 195” FB
Bolster Plate Thickness: 10” Thick T-slotted
Overall Height: 27’ 7” floor to top of Air Tank
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8 Point Gibbing
T-Slotted Ram and Bolster
Rolling Bolster
Hydraulic Tie Rod Nuts
Hydraulic Overloads
Wintriss Programmable Outputs
Wintriss Smart Pac 2 press Control
Variable Speed Drive
Main Motor: 200 HP DC Variable Speed Motor
Motors and Controls
