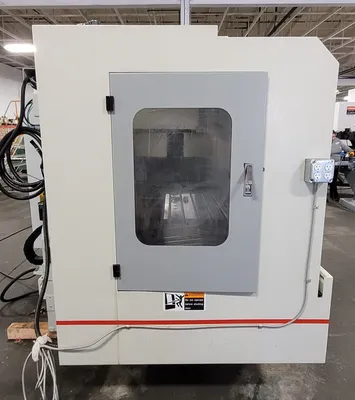

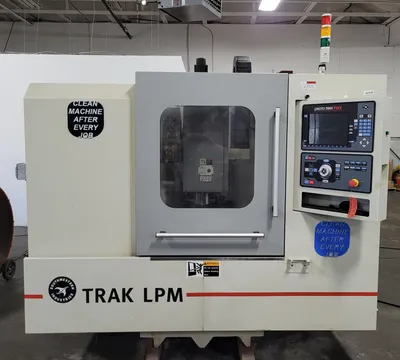

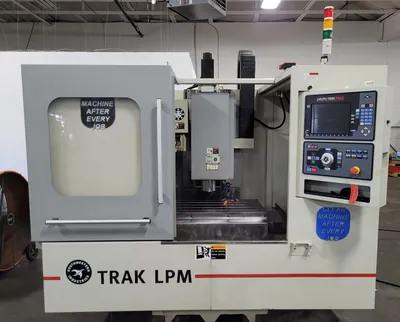

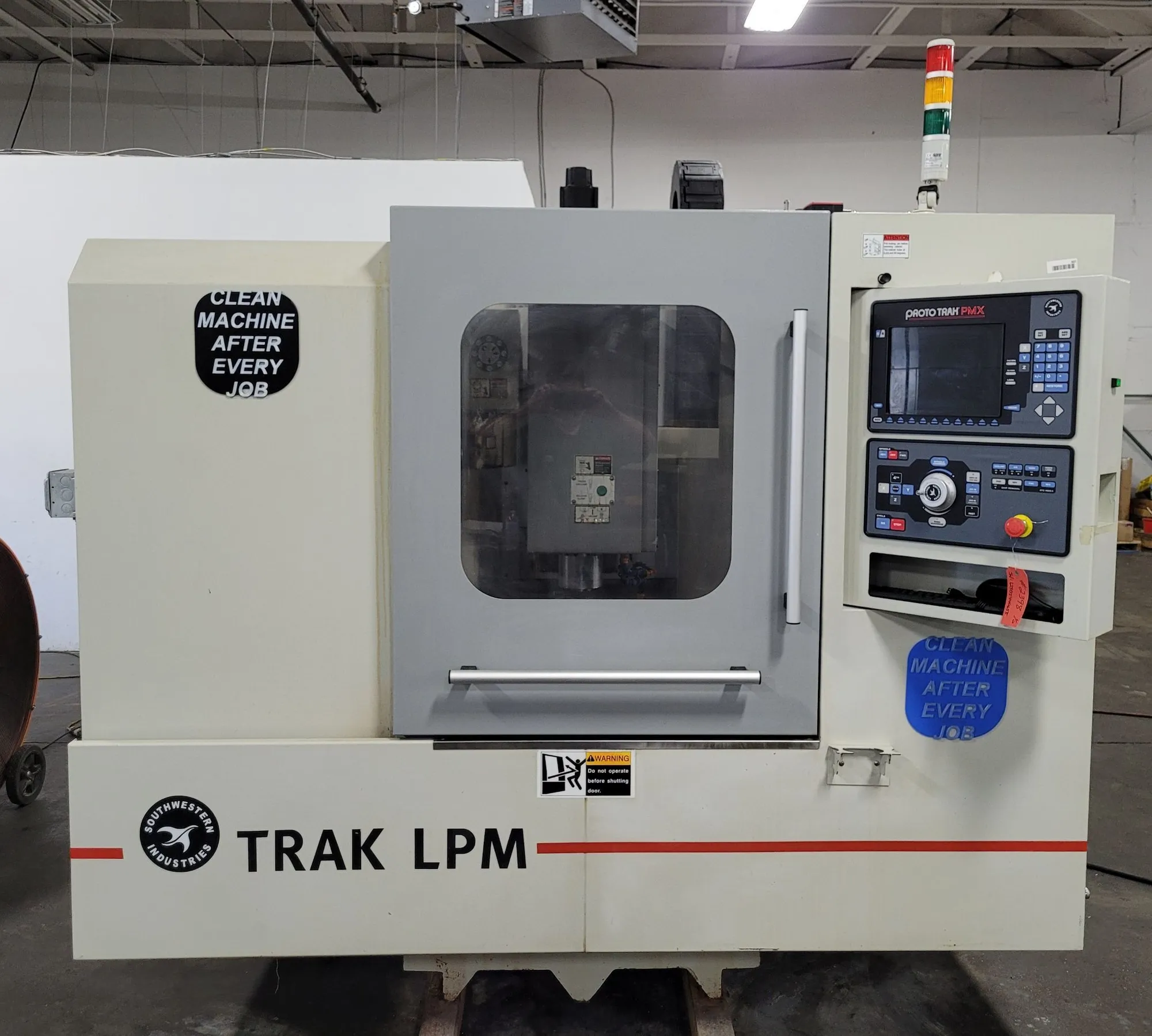

The 2012 Southwestern Industries TRAK LPM is a 3-axis vertical CNC machining center with a ProtoTrak PMX control, designed for quick changeovers.
| X | 31" | 787.4 mm |
| Y | 18.5" | 469.9 mm |
| Z | 21" | 533.4 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CT 40 | CT 40 |
| Pallet-W | 19.625" | 498.47 mm |
| Pallet-L | 35.375" | 898.52 mm |
| # Axis | 3 | 3 |
| Control | CNC (ProtoTrak PMX CNC) | CNC (ProtoTrak PMX CNC) |
| Dimensions | 113 L x 88 W x 98 H | 113 L x 88 W x 98 H |
| Weight | 7,650 lbs | 7,650 lbs |
Southern Industries Trak LPM Vertical CNC Machining Center,
S/N 123DJ440658
Machine Specifications (2012 Model):
Model: TRAK LPM (Southwestern Industries)

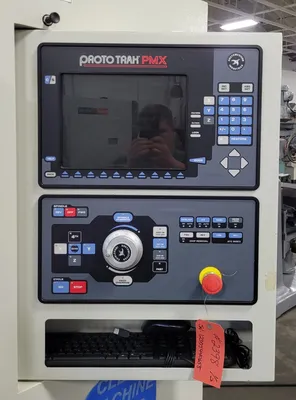

Control: ProtoTrak PMX CNC
Travels (X/Y/Z): 31" x 18.5" x 21"
Table Size: 35-3/8" x 19-5/8"
Table Capacity: 1,000 lbs

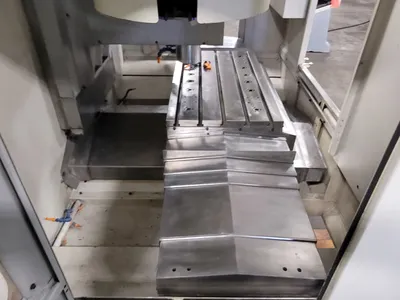

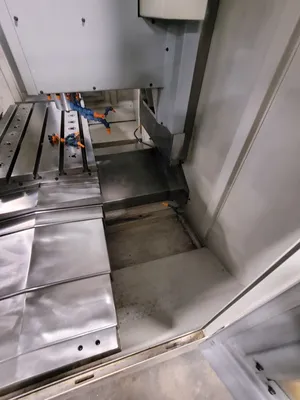

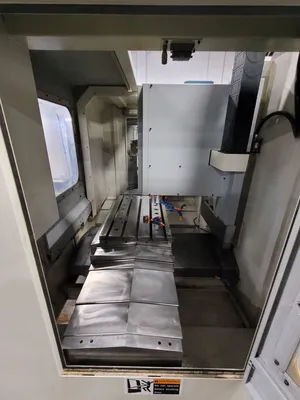

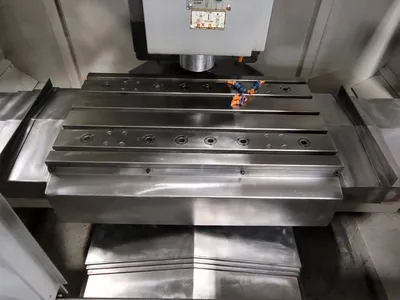

Tee-Slotted Table with Jergens Ball Lock System
Spindle Speed: 8,000 RPM Max
Spindle Taper: CT 40
Wired for 4th Axis
Spindle Motor: 15 HP Peak / 10 HP Continuous
Tool Changer: 16 Stations (Carousel)
Max Tool weight 15 Lbs.
Rapid Traverse (X/Y/Z): 800 / 800 / 700 IPM

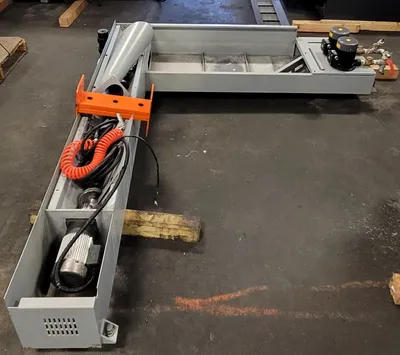

Chip Auger
DXF Input [ conversational mode ]
Weight: Approx. 7,650 lbs
Dimensions: ~113"L x 88"W x 98"H

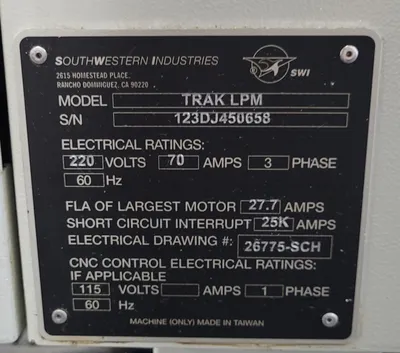

Power Requirement: 208-240V / 3 Phase / 70-78 FLA
Key Features:
Stage Mode: Allows programming the next part while the current one is cutting.
Capabilities: Includes rigid tapping, air blast, coolant pump, and chip auger.
