USED FANUC A06B-0243-B300#0100
USD $375.00
Overview
Description

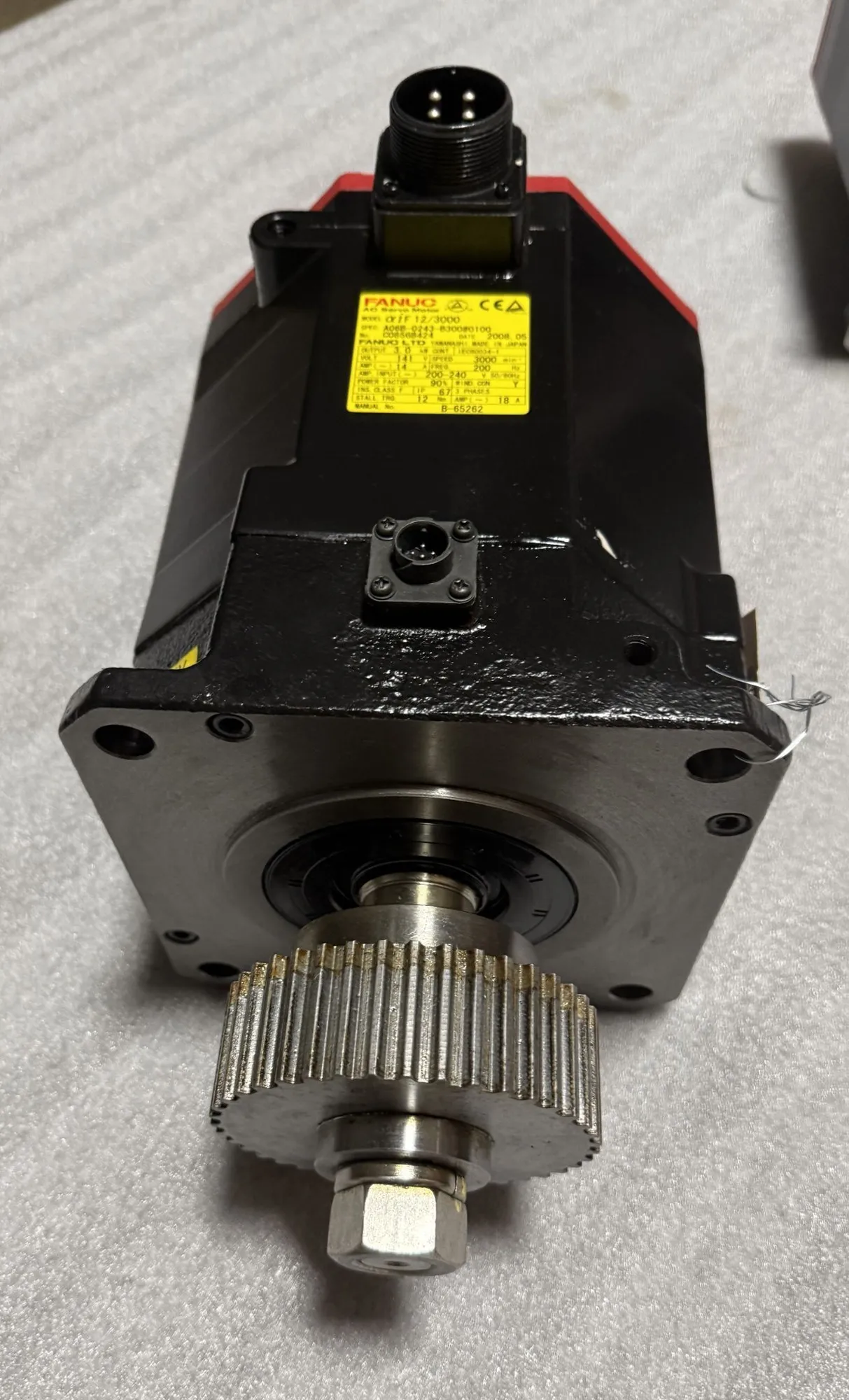

FANUC A06B-0243-B300#0100 AC SERVO MOTOR, Model AiF12/3000
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 2.7 lbf | 12 N |
| Amp (Stall) | 18 A | 18 A |
| Voltage | 141 V | 141 V |
| Amperage | 14 A | 14 A |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Power Factor | 90% | 90% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3 | 3 |
| Power | 4 hp | 3 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 67 | IP 67 |
| Manual No | B-65262 | B-65262 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 16" x 10" x 10" | 16" x 10" x 10" |
| Weight | 63 lbs | 63 lbs |
