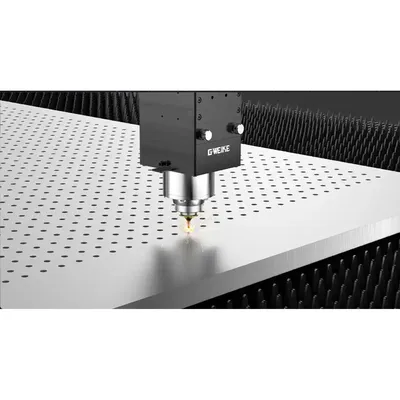

Capable of 12-meter whole sheet thick cutting, with improved dynamic performance, faster cutting speed, and stronger cutting ability.
| Working Area | 238 x 100 in. | 238 x 100 in. |
| Sheet-L | 238" | 6,045.2 mm |
| Sheet-W | 100" | 2,540 mm |
| Laser power (Optional) | 60000W / 40000W / 30000W / 20000W / 15000W / 12000W / 8000W | 60000W / 40000W / 30000W / 20000W / 15000W / 12000W / 8000W |
| Wattage | 60000 w | 60,000 W |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm |
| X/Y Axis Repeat Positioning Accuracy | ±0.02mm | ±0.02mm |
| Maximum Speed | 150-220m/min | 150-220m/min |
| Maximum Acceleration | 1.5G-2.5G | 1.5G-2.5G |
| Dimensions | 612 x 171 x 106.5 in. | 612 x 171 x 106.5 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

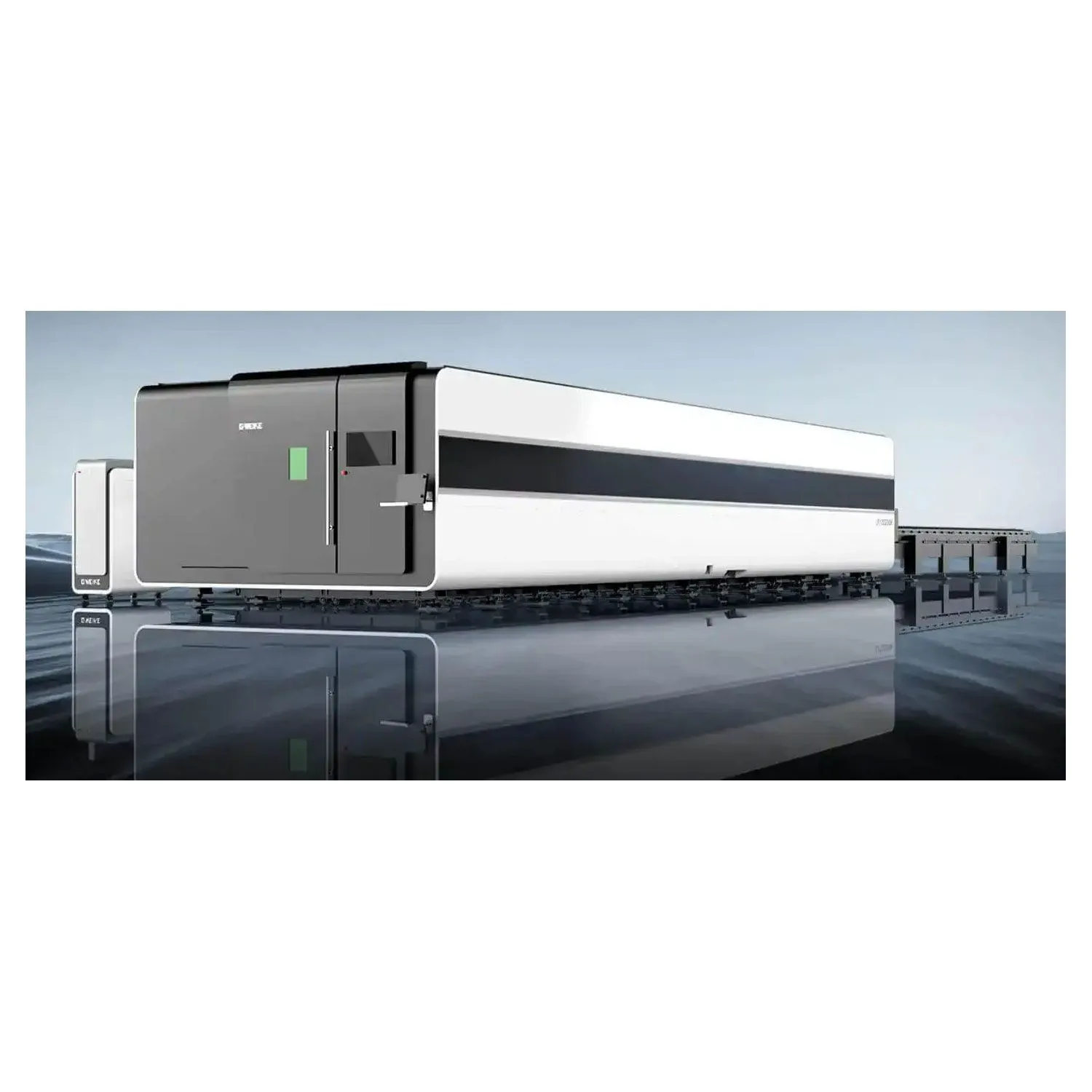

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
