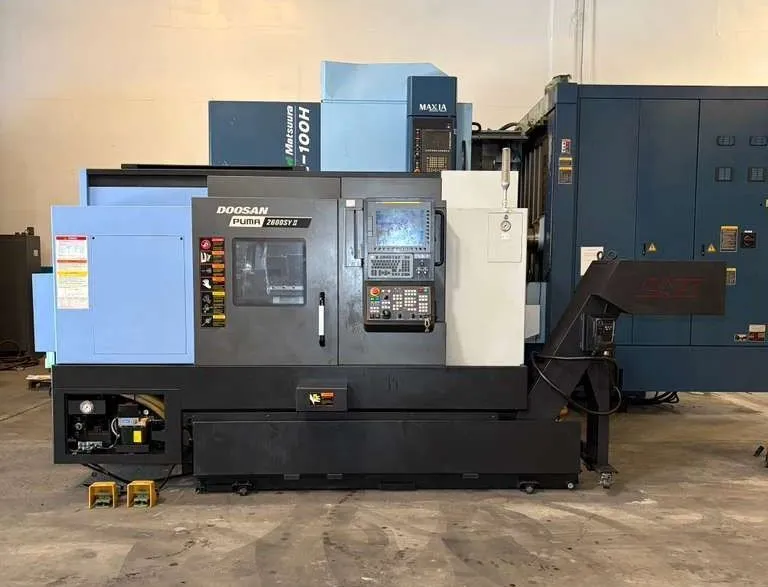

USED 2021 DOOSAN PUMA 2600SYII
Overview
Specifications
| Swing | 24.8" | 629.92 mm |
|---|---|---|
| Max. Turning Length | 29.9" | 759.46 mm |
| Max. Turning Diameter | 14.8" | 375.92 mm |
| X-Axis | 10.2" | 259.08 mm |
| Y-Axis | +2.10″ –2.10″ | +2.10″ –2.10″ |
| Z-Axis | 32.7" | 830.58 mm |
| B-Axis | 32.70″ | 32.70″ |
| C-Axis | 360° | 360° |
| Rapid Traverse X-Axis | 1181 ipm | |
| Rapid Traverse Y-Axis | 394 ipm | |
| Rapid Traverse Z-Axis | 1181 ipm | |
| Rapid Traverse B-Axis | 1181 ips | |
| Rapid Traverse C-Axis | 200 ips | |
| Spindle Taper | BMT-65 | BMT-65 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.2" | 81.28 mm |
| Spindle Bore | 3.6 in | |
| Spindle Nose | A2-8 | A2-8 |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turret Stations | 12 (24 Positions) | 12 (24 Positions) |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Live Milling Power | 10 hp | |
| Live Milling Max RPM | 5000 rpm | 5,000 RPM |
| Sub Spindle | Yes | Yes |
| Sub Spindle Power | 20 hp | |
| Sub Spindle Max RPM | 6000 rpm | 6,000 RPM |
| Sub Spindle Chuck | 8 in | |
| Sub Spindle Bar Capacity | 1.96 in | |
| Sub Spindle Bore | 2.4 in | |
| Sub Spindle Nose | A2-5 | A2-5 |
| Cut Hours | 2,513 hr. | 2,513 hr. |
| Dimensions | 142″ x 75″ x 85″ High | 142″ x 75″ x 85″ High |
| Weight | 14,220 Lbs | 14,220 Lbs |
Equipped With
Fanuc i-Plus CNC Control
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
12-Station (24 Positions) Live Tool Turret
Y Axis Capable
Tool Presetter
Parts Catcher
Parts Conveyor
MP Systems VR8 High Pressure Coolant System
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
LNS Chip Conveyor
*Tooling package available for separate purchase
