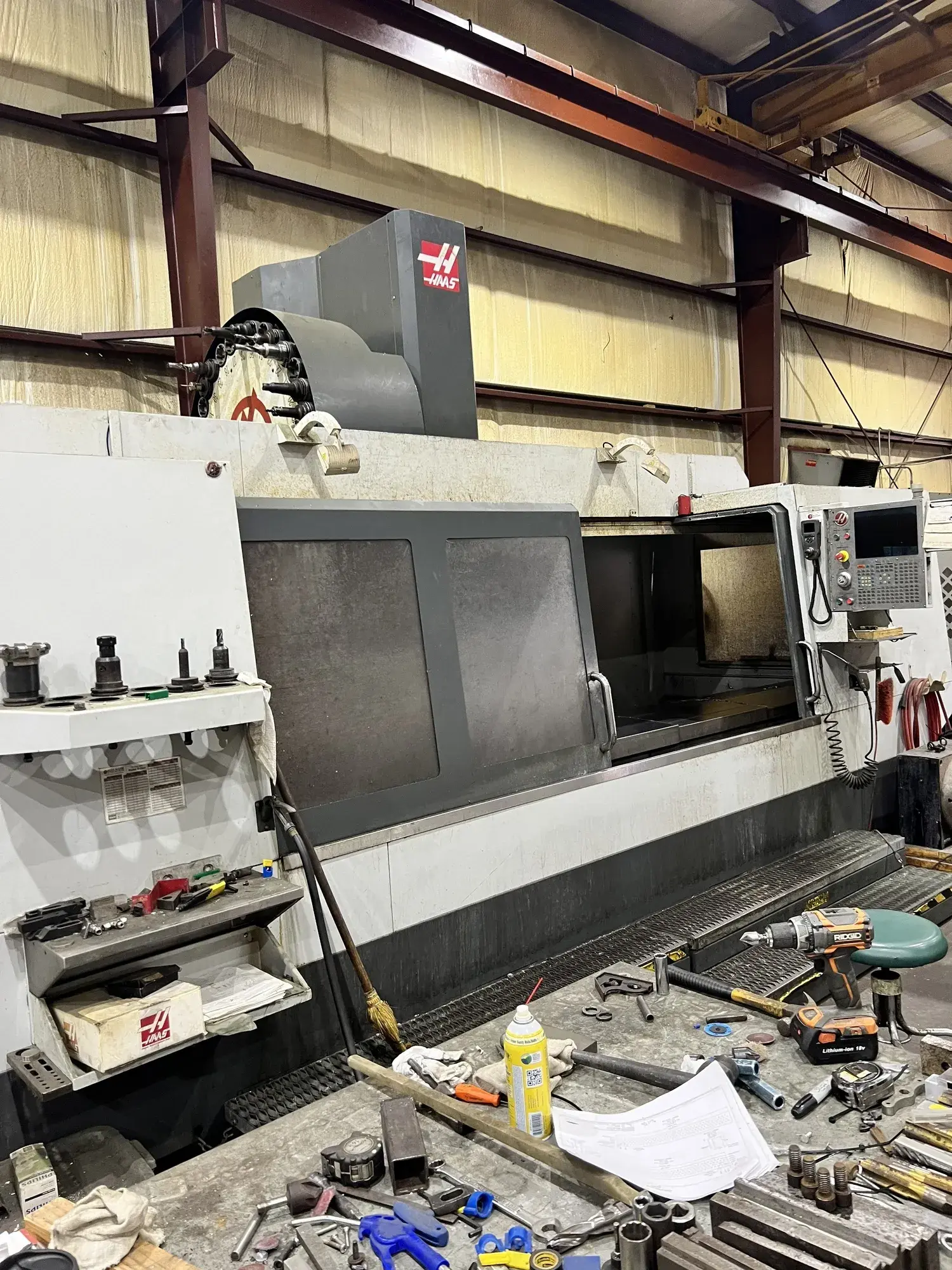

2014 HAAS VF-11 Vertical Machining Center features X: 120", Y: 40", Z: 30", 20 hp, 7,500 RPM, 28-piece ATC, CT 50 taper. Includes an HRT450 4th axis rotary table and 1000 PSI high-pressure coolant through spindle.
| X | 120" | 3,048 mm |
| Y | 40" | 1,016 mm |
| Z | 30" | 762 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 28 | 28 |
| Taper | CT 50 | CT 50 |
| Table-W | 28" | 711.2 mm |
| Table-L | 120" | 3,048 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
HRT450 4th Axis Rotary Table
High Pressure 1000 PSI Coolant Through Spindle
