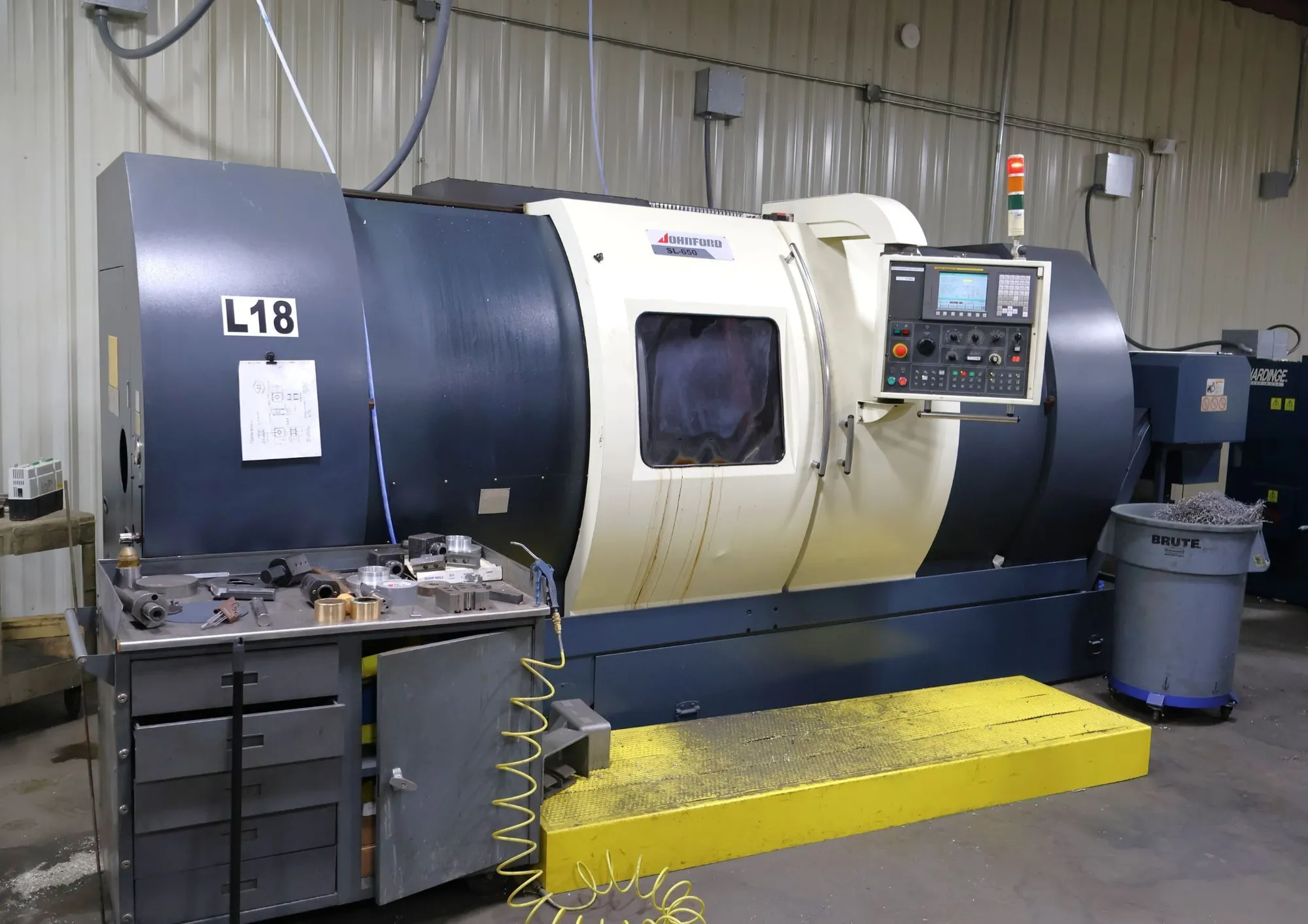

2005 Johnford SL-650-CS CNC Lathe with live milling, barfeed, and FANUC OI-TC CNC control. Features a 10" chuck, 25 hp motor, and 3500 RPM speed. Equipped with chip conveyor, tool touch setter, and more. CUTTING TIME: 3,823 HOURS. Immediate availability.
| SWING OVER BED | 22.8" | 579.12 mm |
| SWING OVER CROSS SLIDE | 17.7" | 449.58 mm |
| X-AXIS TRAVEL | 11.5" | 292.1 mm |
| Z-AXIS TRAVEL | 59" | 1,498.6 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.4" | 86.36 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE SPEED | 3,500 RPM | 3,500 RPM |
| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
| Dimensions | 205" x 83" x 86" | 205" x 83" x 86" |
FANUC OI-TC CNC
JOHNFORD PRO 1500 V-655L BARFEED (NEW 2011)
10" 3-JAW CHUCK (NB-210)
C-AXIS, LIVE MILLING CAPABILITY
CHIP CONVEYOR
MISC. TOOL HOLDERS
TOOL TOUCH SETTER
ALL AVAILABLE MANUALS
HOURS ON MACHINE AS OF 3/4/2026 (AS SEEN IN PHOTO):
* POWER ON: 19,706 HOURS
* OPERATING TIME: 3,799 HOURS
* CUTTING TIME: 3,823 HOURS
MACHINE IS IN PLANT, UNDER POWER. AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
