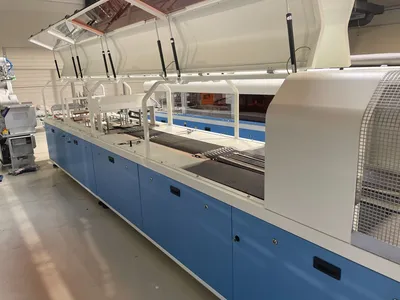

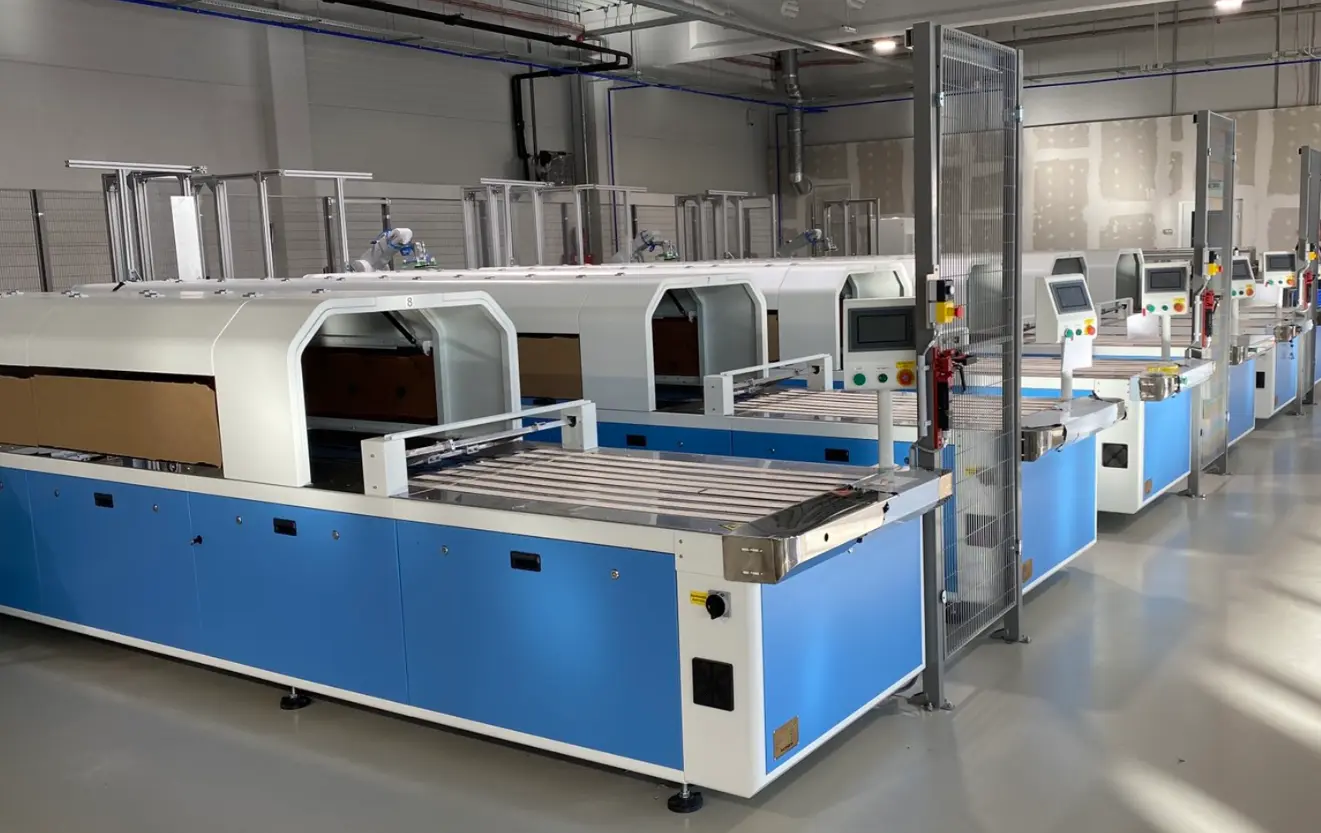

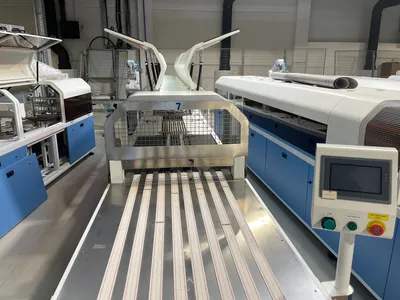

USED 2021 Hermann PC-FP-2200

Product features

The automatic garment folding and packaging machine is used in the garment industry. The equipment features low energy consumption, high-precision repeatable positioning, a top-of-the-range Omron PLC from Japan, a display and touchscreen control panel, Raytheon motor drive and a long-life belt-and-pulley transmission mechanism. The entire machine is stable and reliable, with good dynamic performance and high load-bearing capacity, making it a state-of-the-art CNC product. Please read the instructions carefully before using the equipment. If you encounter any difficulties during use, please contact us promptly; we will respond to you as quickly as possible.

The entire machine structure utilises square welding, which offers high rigidity, stability and seismic resistance.

Precision bearings and high-quality V-belts are used as transmission components, ensuring high transmission efficiency, stable speed and good positioning

The control centre utilises Omron PLC control, which, with its efficient functionality, is capable of meeting the requirements of various operations.

The drive motor is selected from the high-torque Race series, which effectively increases the transmission torque and meets higher load requirements.

It features a user-friendly parameter adjustment interface, allowing easy adjustment of package length, production cycle, induction delay and other production parameters.

Uses and applications

The machine is suitable for the automatic folding, automatic packaging and automatic sealing of disposable garments, such as protective clothing and workwear.

Environmental conditions

Power supply specifications: single-phase 220 V 50 Hz, power 3 kW;

Power quality: voltage fluctuation <5%.

Protection against earth faults: earth resistance <4Ω.

Requires adequate ventilation and a clean, contamination-free, dust-free and corrosion-free environment

The unit requires a vibration-free foundation

An ambient temperature of -5°C to 30°C must be maintained

To prevent fire, the processing area must be equipped with suitable fire extinguishers and dedicated fire hydrants

To facilitate major repairs to the equipment, the distance between the equipment and the workshop wall must be more than 1.2 m; The control unit, drive unit, display and control panel are the main components of the machine tool, which impose certain requirements on the environment and must avoid interference from electromagnetic waves – such as those from arc welding and discharge machines – so as not to affect the machine’s operation.

Power: AC 220V / 50Hz

Air pressure: ≥0.5 MPa

Power rating: 3 kW

Weight: ~850 kg

Measurements: 6 870mm x 1 050mm x 1 500mm

If multiple machines are purchased, the price is negotiable.
6 pcs are available.
