Bag Capacity: 4,000 Lbs
Frame Construction: 3″ Square 7 Gauge Steel Tubing
Hoist Capacity: 2 Metric Tons
Lift Height: 15 Ft
Hoist Lift Speed: 14 FPM
Trolley Speed: 40 FPM
Hoist Motor Horsepower: 2.4 HP
Trolley Motor Horsepower: 0.5 HP
Hoist Power Requirement: 230 / 460 VAC 3 Phase
Hoist Duty Rating: 60 Minute
Agitator Air Requirement: 5 SCFM @ 80 PSI
Iris Valve Size: 12″
Access Chamber Size: 12″ Round
Surge Hopper Capacity: 8 Cubic Feet
Rotary Valve Inlet Size: 8″ Diameter
Rotary Valve Motor Inlet: 0.75 HP
Rotary Valve Motor Discharge: 0.5 HP
Blower Motor Horsepower: 5 HP
Filter Area: 31 Sq Ft
Filter Efficiency: 99.99% @ 0.5 Micron
Conveying Line Diameter: 2.5″
Conveying Line Length: 35 Ft
Equipped With

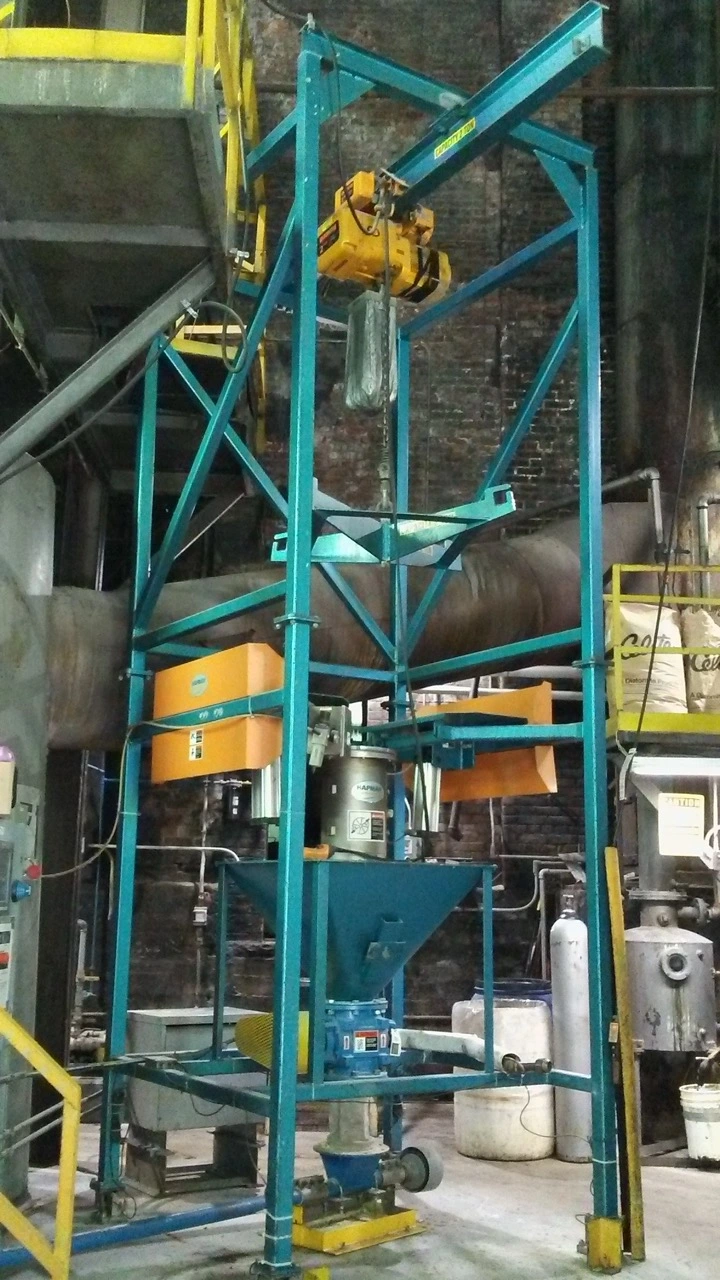

Fixed Height Bulk Bag Unloader Frame

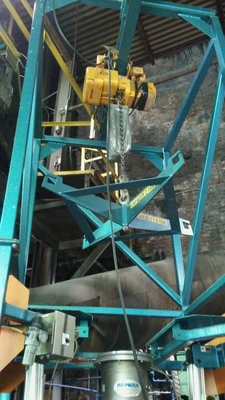

Electric Hoist And Trolley With Pendant Control
Automatic Bag Agitator Assembly
12″ Iris Valve Flow Control
12″ Round Access Chamber With Side Door

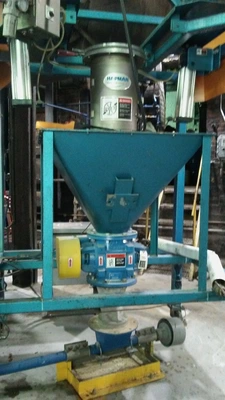

8 Cubic Foot Surge Hopper
8″ Rotary Airlock Valve Inlet And Discharge
Hapman Model 24R Filter Receiver
Regenerative Vacuum Blower With Silencer
Reverse Pulse Filter Cleaning System

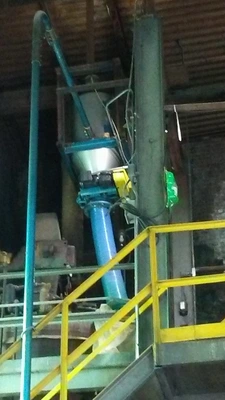

Pneumatic Conveying Line Kit
Unitronics PLC Control System With 10.4″ Touchscreen
Load Cell Weighing System
Yaskawa VFD Drives
Emergency Stop And Batch Controls
Painted Carbon Steel Construction
All Available Manuals
