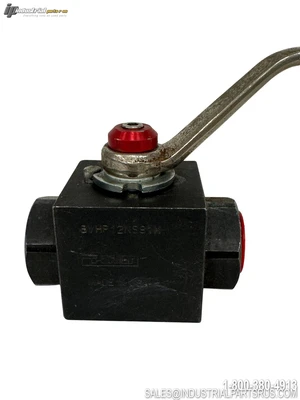

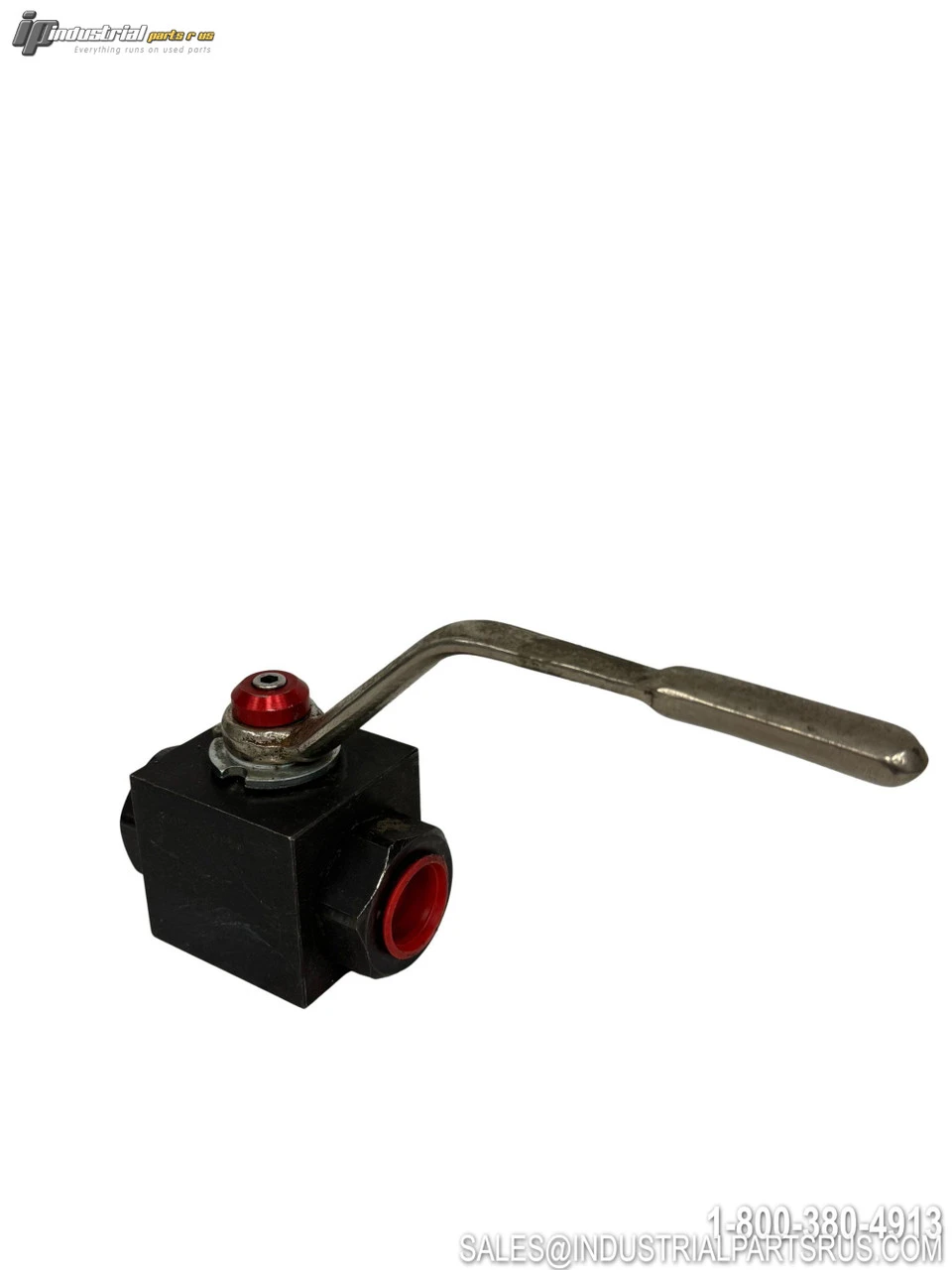

USED PARKER BVHP12NSS1N
Overview
Description
The Parker BVHP12NSS1N is a high-pressure hydraulic ball valve from Parker's BVHP series designed for shut-off applications. This valve features stainless steel construction for corrosion resistance and is rated for pressures up to 7250 PSI, suitable for demanding hydraulic and general industrial fluid systems.
Specification
Value
Brand
Parker
Model/Part Number
BVHP12NSS1N
Valve Type
2-Way Shut Off Ball Valve
Series
BVHP High Pressure
Connection Size
3/4 Inch
Connection Type
NPT
Maximum Pressure
7250 PSI
Body Material
Stainless Steel
Ball Material
Stainless Steel
Stem Material
Stainless Steel
Ball Seals
Delrin + MoS2
Stem Seals
Nitrile O-Ring
Handle Type
Standard Offset
Mounting Type
In-Line
Operating Temperature
-22°F to +212°F (-30°C to +100°C)
Number of Positions
2
Width
2.25 Inches
Applications
Hydraulic, Water & Oil Systems
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI1190
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Parker
Part Number: BVHP12NSS1N
Shelf: A-10
Model: BVHP12NSS1N
MPN: BVHP12NSS1N
Type: Ball Valve
