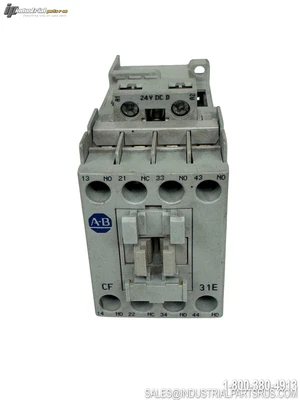

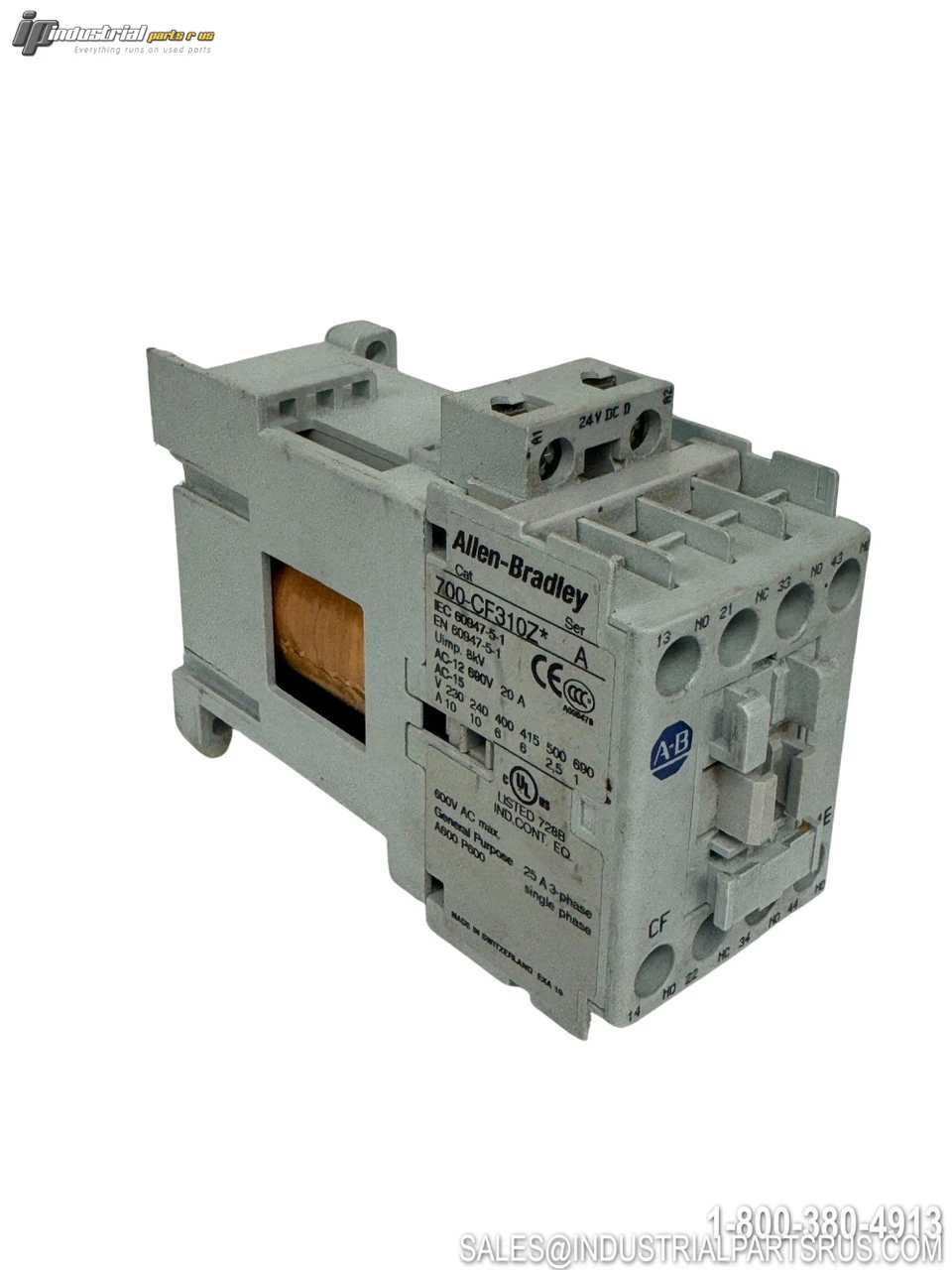

USED ALLEB BRADLEY 700-CF310Z*
Overview
Description
The Allen-Bradley 700-CF310Z* is a 4-pole IEC industrial control relay from the Bulletin 700-CF series. This relay features 3 normally open and 1 normally closed contact arrangement, designed for demanding industrial automation applications with mechanically linked contacts and long contact life. The relay includes a diode for coil suppression.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
700-CF310Z*
Product Type
IEC Industrial Control Relay
Series
A
Coil Voltage
24VDC
Number of Poles
4
Contact Configuration
3NO/1NC
Contact Rating
25A
Maximum Voltage
600VAC
Mounting Type
DIN Rail
Standard Compliance
IEC 60947-5-1
Features
With Diode, Mechanically Linked Contacts
Weight
1.75 LBS
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1197
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Mounting Style: DIN Rail
Current Rating: 25 A
Application: Industrial Control
Manufacturer: Alleb Bradley
Part Number: 700-CF310Z*
Shelf: F-3 Tub 9
Model: 700-CF310Z*
Coil Voltage: 24 VDC
MPN: 700-CF310Z*
Type: Control Relay
