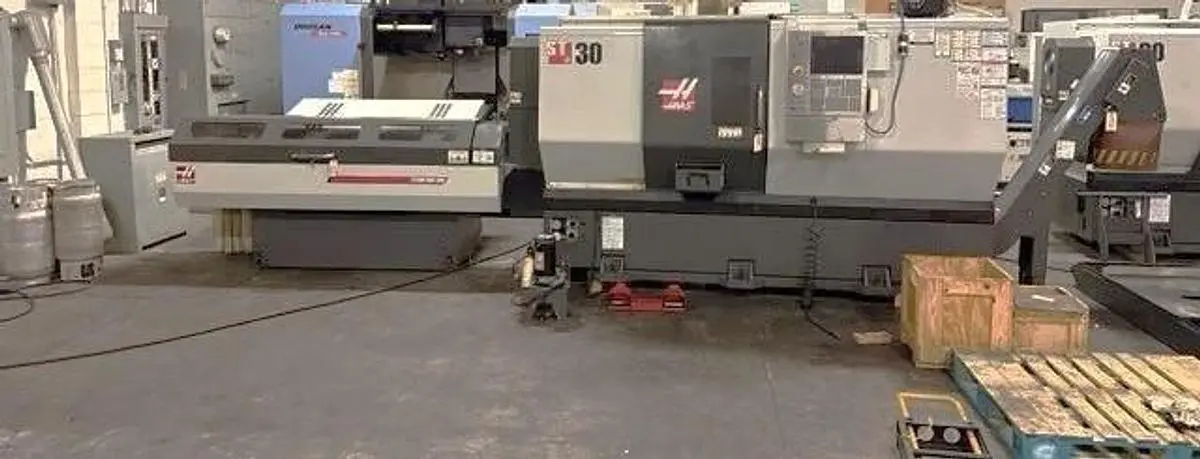

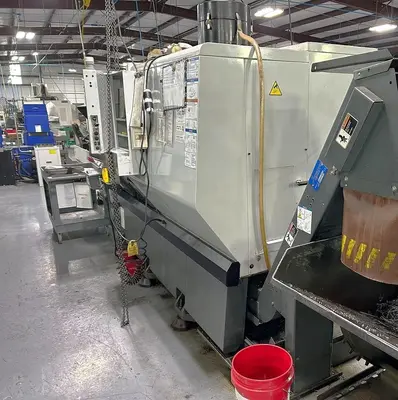

USED 2010 HAAS ST-30M

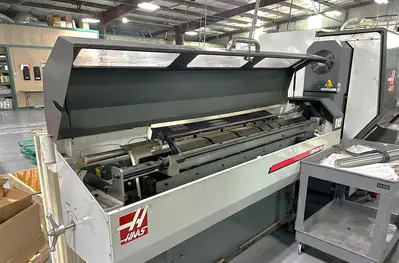

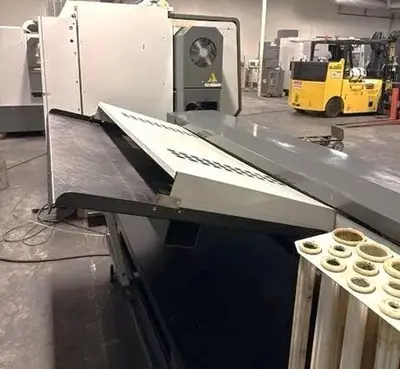

Haas Servo 300 Barfeeder
Full C Axis Spindle Rotation
Live Milling/Drilling Capabilities
Tool Presetter
Parts Catcher
10" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Chip Conveyor
Rigid Tapping
Spindle Orientation
RS 232 Port Interface
All Available Tool Blocks

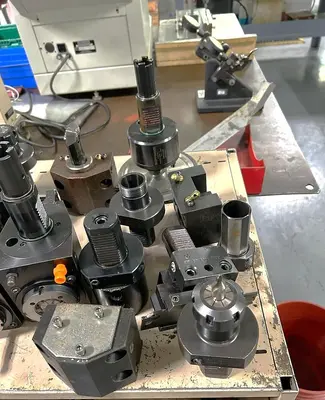

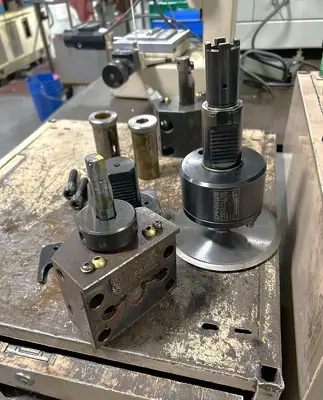

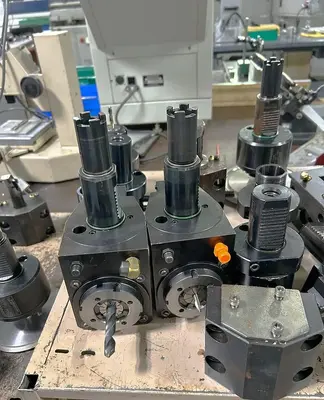

Live Tool Holders
Coolant System with Tank & Pump

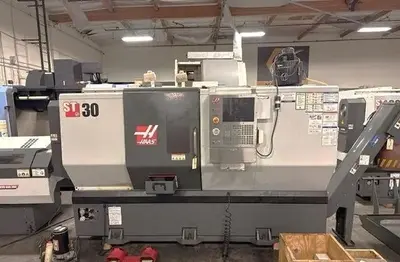

The 2010 Haas ST-30M is a versatile CNC lathe featuring a Haas CNC Control system. It offers a robust milling capability with a 10" 3-jaw hydraulic chuck and can handle a maximum swing of 31.5". The lathe supports a maximum turning diameter of 21" and a machining length of up to 26". Its maximum bar capacity is 3", supported by a spindle nose of A2-6".

The machine boasts a spindle speed range of 30 to 3,400 RPM, powered by a 30 HP motor. It includes C Axis spindle rotation with a precision of 0.001 degrees, enhancing its milling functions. The ST-30M houses a 12-position turret, where all positions are live, enabling more complex operations.

Additional features include a tailstock with 20" body travel and MT #4 taper, a chip conveyor, a parts catcher, and a tool presetter. The machine has rapid traverse rates of 945 ipm on both X and Z axes. Measuring 171" x 90" x 83" and weighing 12,540 lbs., this lathe is suitable for various industrial applications, providing reliability and precision for both small and large-scale productions.

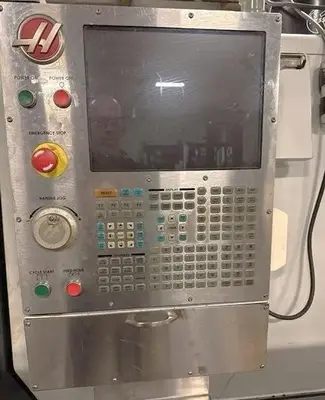

Machine Control: Haas CNC Control
Chuck Size: 10" 3 Jaw Hydraulic
Maximum Swing: 31.5"
Maximum Turning Diameter: 21"
Maximum Machining Length: 26"
Maximum Bar Capacity: 3"
X-Axis Travel: 12.5"
Z-Axis Travel: 26"
C Axis Spindle Rotation: .001 Degree
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.5" / 3"
Spindle Speeds: 30 - 3,400 RPM
Spindle Motor: 30 HP

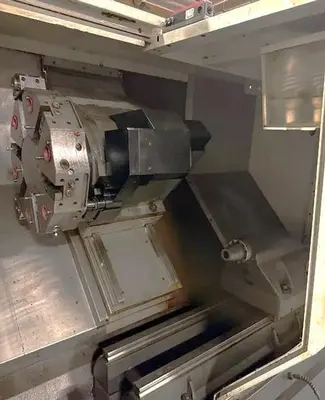

Number of Turret Positions: 12 Position all can be live
Rapid Traverse Rates X/Z: 945 ipm / 945 ipm
Tailstock Body Travel / Taper: 20" / MT #4
Machine Dimensions: 171" x 90" x 83"
Machine Weight: 12,540 lbs.
