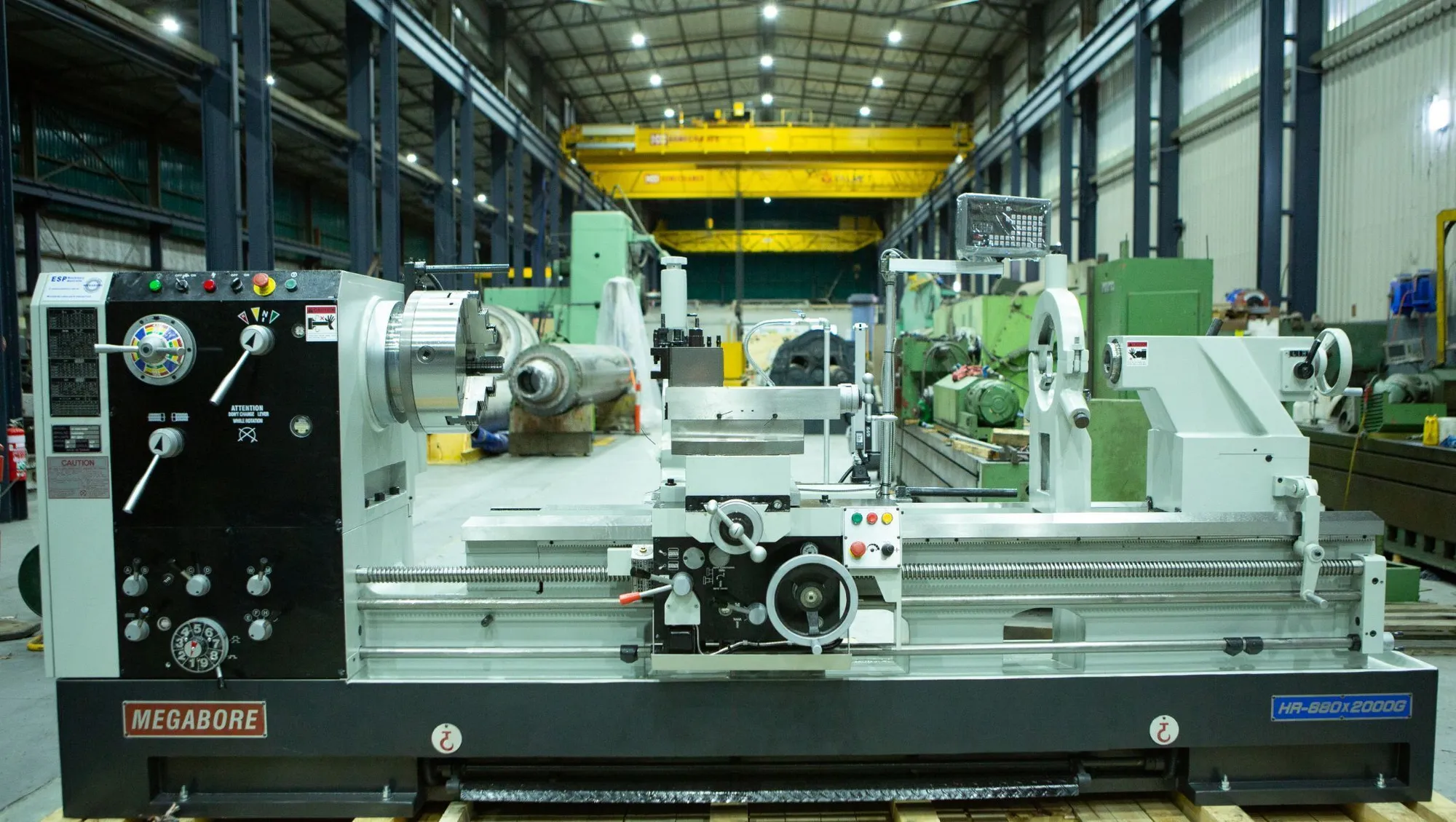

HR Heavy Duty Precision Lathe.
This machine is suitable for buyers who want a lathe well above normal expectations.
Made in Taiwan to a very high standard, comparable to any European machine.
•The spindle is 3 pointed type which is supported by precision tapper roller bearings.
•Cross slide heat treated and finished with precision grinding.
Headstock uniquely designed to use high class iron and all running parts are lubricated by
pressure pump. Forced lubrication system for headstock to ensure its lubrication and
cooling for high speed machining. Gears in the headstock are made of chromium molybdenum steel (SCM-21), for precise machining.
Base one piece meehanite casting, which is heat treated and and precision ground.
We usually order this machine with 3 + 4 Jaw Chucks.
Rear Splash Guard
Sometimes Taper Turning.
When requesting price please note accessories required, swing and center distance.
Hollow spindle 4 or 6 inch.
Photos taken in our Melbourne facility.
Spindle Bore 155 mm
Swing over bed 980 mm
Distance between centers 3000mm
Weight of machine 5,500 kgs
Optional Accessories to be added to sale price:
1). Steady Rest (150mm – 380mm). US$1,950.00.
2). Steady Rest (300mm – 520mm). US$2,550.00.
3). 3 Jaw Chuck 12” inc backing plate US$1,750.00.
4). 3 Jaw Chuck 20” inc backing plate US$2,950.00.
5). 4 Jaw Chuck 20” US$2,250.00.
6). 4 Jaw Chuck 25” US$3,150.00.
7). 4 Jaw Chuck 32” US$5,500.00.
8). Taper turning attachment US$2,800.00
| Swing | 980 mm | 38.583" |
| Centers | 3,000 mm | 118.11" |
| Spindle Bore | 500mm | 152.4 mm |
| RPM | 800 RPM | 800 RPM |
Specifications
Spindle Bore 155 mm
Swing over bed 980 mm
Swing over cross–slide 740 mm
Distance between centres 3000 mm
Spindle speeds 12 steps 14 – 800 rpm.
Cross slide travel 390 mm
Tailstock quill Diameter 105 mm
Tailstock quill travel 210 mm
Quill Taper MT6
Motor capacity 15HP
Hardened Ways
STANDARD ACCESSORIES
Steady rest 70mm - 250 mm diameter
Follow rest
Taper Turning Attachment
2 axis Digital readout:
Coolant System
Halogen work light
4 Way Rapid traverse system
Full length Rear Splash Guard
4 way toolpost.
Toolbox & operation manual.
