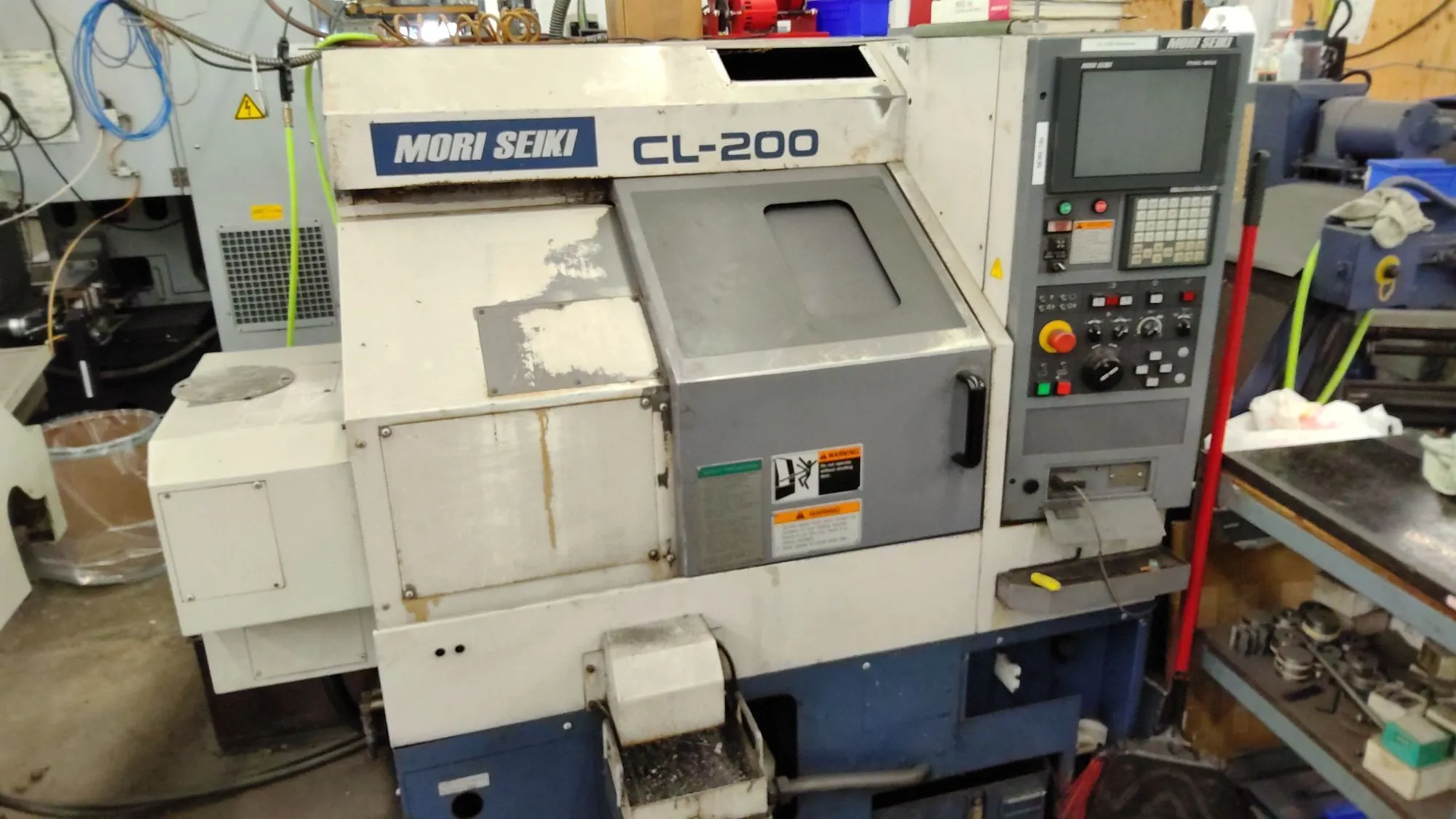

USED 1998 MORI SEIKI CL-200B
Overview
Description
1998 Mori Seiki CL-200B CNC Lathe
Specifications
| Swing | 20.3" | 515.62 mm |
|---|---|---|
| Machining Length | 20.9" | 530.86 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.55" | 64.77 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 16.14" | 409.96 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mori MSC-518 control (Fanuc 18T)) | CNC (Mori MSC-518 control (Fanuc 18T)) |
| Dimensions | 90" x 70" x 80" High | 90" x 70" x 80" High |
| Weight | 6500 lbs | 6500 lbs |
Swing Over Bed...............20.3"
Swing Over Slide.............17.9"
Max Turning Diameter.........16.14"
Max Turning Length...........20.9"
X-Axis Travel................9.25"
Z-Axis Travel................22.4"
Spindle Bore.................2.85"
Max Bar Capacity.............2.55"
Spindle Motor................20 HP
Spindle Nose.................A2-6
Spindle Speed................3500 RPM
Rapid Traverse Rates.........1181 IPM
Turret Capacity..............10 Stations
Turret Index Time............0.5 Second
Power Source.................AC 220 V, Three Phase, 60 Hz
Overall Dimensions...........90" x 70" x 80" High
Weight.......................6500 lbs Approx
Equipped With
MSC-518 CNC Touch Screen Control
Parts Catcher
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
