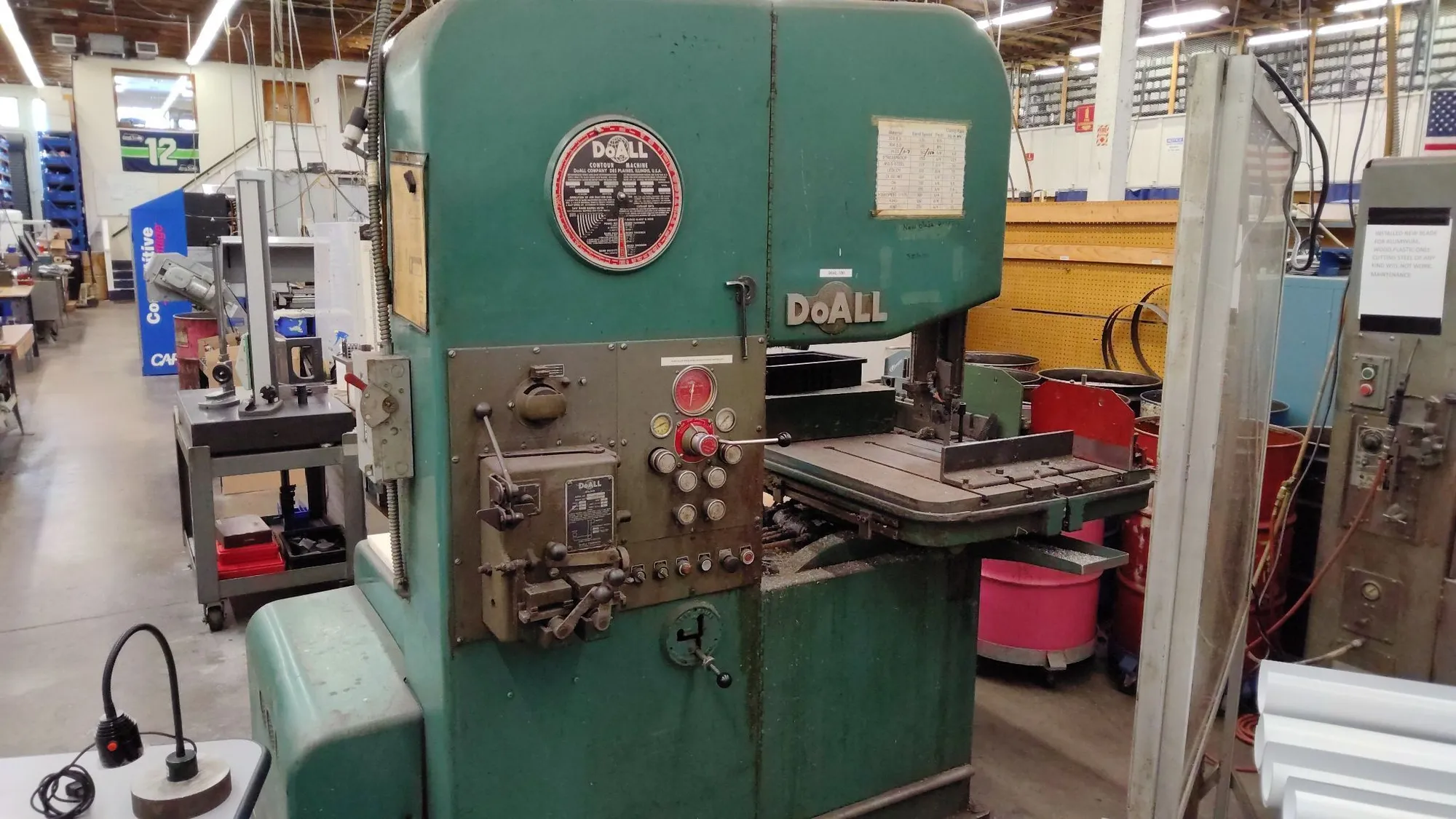

DoAll 2613-3 Vertical Band Saw
| Throat | 26" | 660.4 mm |
| Work Height | 13" | 330.2 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 0" | 0 mm |
| Blade Length | 186" | 4,724.4 mm |
| FPM | 55 to 10000 | 55 to 10000 |
| Dimensions | 60" L-R x 85" F-B x 88" H | 60" L-R x 85" F-B x 88" H |
| Weight | 4500 lbs | 4500 lbs |
Throat depth..................26"
Maximum work thickness........13"
Table size....................40-3/4" L-R x 32" F-B x 16" stroke
Table tilt....................45° to right 5° to left
Band length...................186"
Band width....................1/8" to 1"
Wheel diameter................26"
Upper wheel adjustment........3"
Floor to top of table.........42"
Table feed rate approx........0 - 8 FPM
Band speeds approx............40 - 10,000 FPM
Electrics.....................440V/3PH/60HZ
Overall dimensions approx.....60" L-R x 85" F-B x 88" H
Weight approx.................4500 lbs
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
