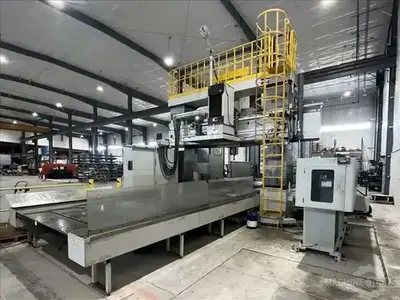

USED 2017 SNK RB-5M
Description

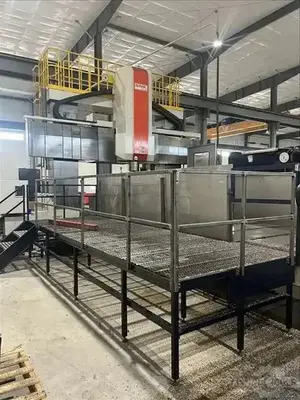

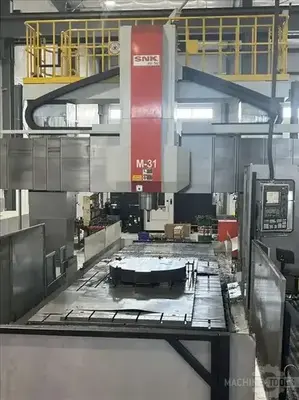

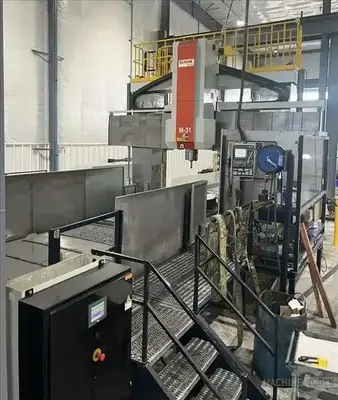

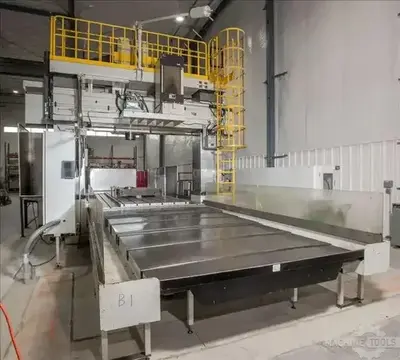

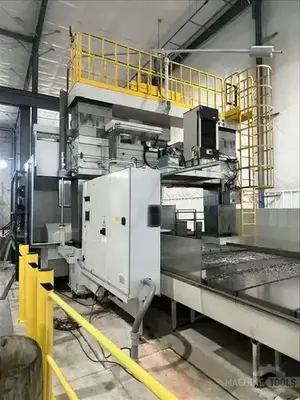

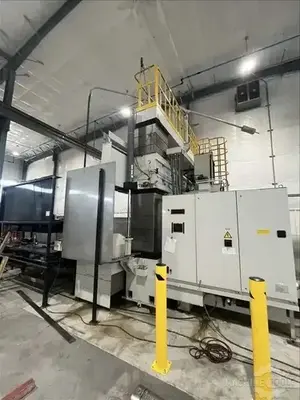

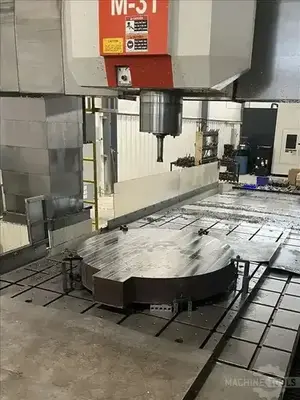

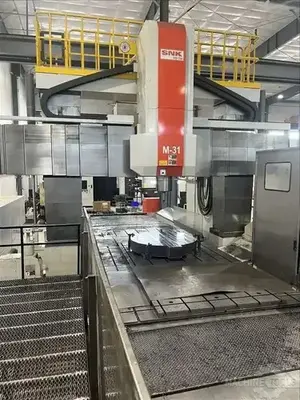

SNK RB-5M 5-Face Double Column CNC Bridge Mill
Specifications
| X | 5,250 mm | 206.69" |
|---|---|---|
| Y | 3,400 mm | 133.86" |
| Z | 600 mm | 23.622" |
| Power | 25 kW | 33.5 hp |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 2,500 mm | 98.425" |
| Table-L | 5,000 mm | 196.85" |
X-Axis (Table Travel): 206.6"
Y-Axis (Spindle Head Travel): 133.8"
Z-Axis (Quill Stroke): 31.5"
W-Axis (Cross Rail Vertical Travel): 55.1"
Righ Angle Head Attachment Indexing: 1°
Distance Between Columns: 122"

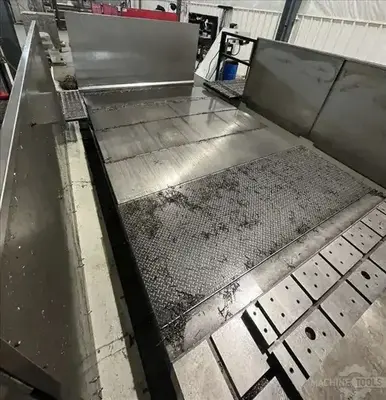

Table Size: 196.8" x 98.4"
Table Top to Spindle Nose: 70.8"
Table Weight Capacity: 33,000 lb.
Tool Changer: 60-ATC
Spindle Speed: 40 - 4500 RPM
Spindle Taper: #50
Spindle Motor: 60.3 HP / 49.6 HP

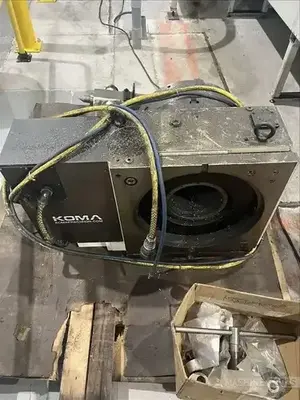

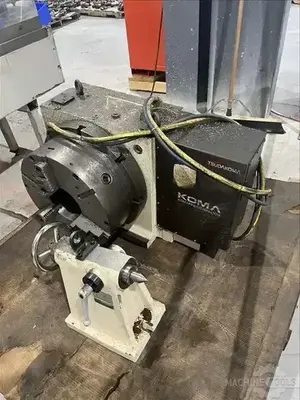

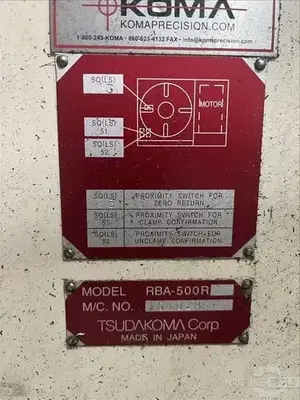

Tsudakoma RA-500R Rotary Table
Serial Number: 161028
Diameter: 19.7"
Center Height: 12.2"
Bore Diameter: 7.2"
Max. Speed: 11 RPM
Max. Horizontal Table Load: 1,323 lb.
Max. Vertical Load w/ Tailstock: 551 lb.

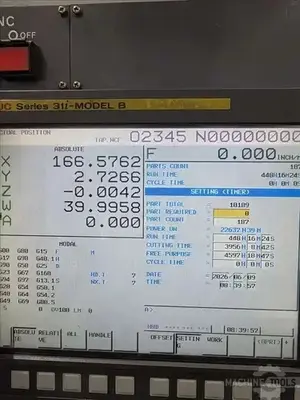

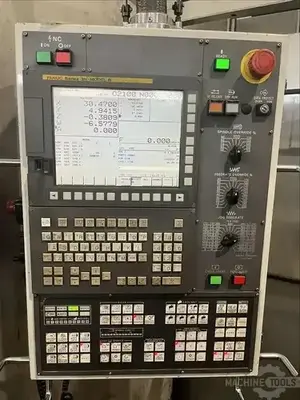

Fanuc 31i-B 4-Axis CNC Control
Tsudakoma RA-500R Rotary Table w/ Tailstock

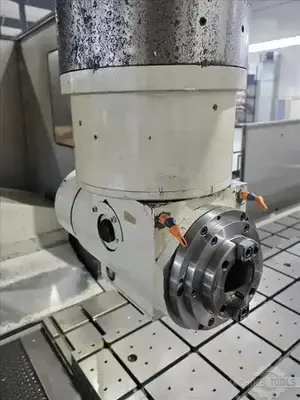

Auto Indexing Right Angle Head 30 HP
Right Angle Attachment Changer
Thru-Spindle Coolant Vertical & Right Angle Head
Renishaw RMP60 Probe

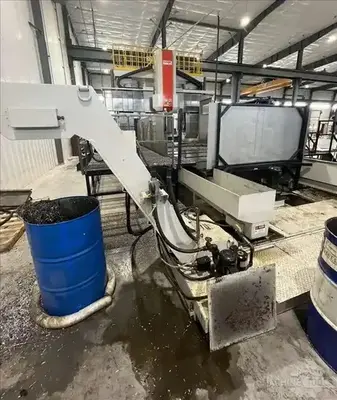

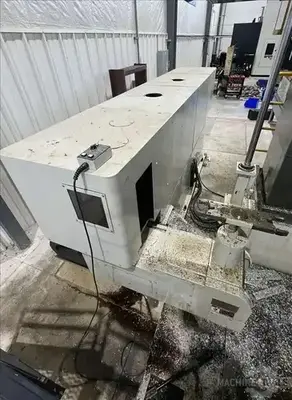

Henning Chip Conveyor & Coolant Pump System
