Hyundai Wia HS5000i – 2015

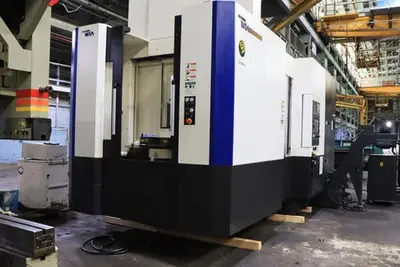

HYUNDAI WIA HS5000I CNC HORIZONTAL MACHINING CENTER

PALLET SIZE ………………… 19.7″ × 19.7″ / 500mm

NUMBER OF PALLETS …………… 2

MAXIMUM LOAD CAPACITY: ………. 1,102 LBS

MAXIMUM WORKING SIZE ……….. 30.7″ × 38.6″H

MIN. INDEXING ANGLE …………. 0.001°

SPINDLE

SPINDLE TAPER ………………. #40 CAT BIG PLUS

SPINDLE SPEED ………………. 12,000 RPM

SPINDLE MOTOR OUTPUT ………… 33.5/30 HP

SPINDLE TORQUE (MAX./CONT.) ….. 123.1/70.1) LBF-FT

SPINDLE DRIVING METHOD ………. BUILT-IN

FEED

X-AXIS TRAVEL ………………. 33.5” / 850mm

Y-AXIS TRAVEL ………………. 27.6” / 700mm

Z-AXIS TRAVEL ………………. 29.5” / 750mm

DISTANCE COLUMN TO SP. CENTER … 2″ – 29.5″

DISTANCE TABLE SURFACE TO SP …. 5.9″ ~ 35.4″

RAPID TRAVERSE RATE (X/Y/Z) ….. 1,969/1,969/1,969 IPM

CUTTING FEED RATE …………… 393 IPM

ATC

NUMBER OF TOOLS: ……………. 80

MAX. TOOL DIA.: …………….. (W.T/W.O) 3″/5.5″

MAX. TOOL LENGTH: …………… 17.7″

MAX. TOOL WEIGHT: …………… 17.6 LBS

TOOL CHANGE TIME ……………. T-T SEC 1.1 / C-C SEC 3.8

FLOOR SPACE (MACHINE ONLY) …… 109″ × 192″ x 110.8”

APPROXIMATE WEIGHT ………….. 33,069 LBS

FANUC SERIES 32i MODEL B CONTROL

EXPANDED MEMORY, HIGH SPEED HRV3 FUNCTION, 64 TOOL

OFFSETS, AI CONTOUR CONTROL, HELICAL INTERPOLATION,

THREAD CUT/SYNCHO FEED, RIGID TAPPING,

COORIDINATE SYSTEM ROTATION, CUSTOM-B & EXECUTOR MACROS,

SIMULTANEOUES CONTROLLED AXES EXPANSION, BACKGROUND EDIT

RENISHAW LASER TOOL SETTER

COOLANT THROUGH SPINDLE

HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI

80 TOOL CAPACITY

CHIP CONVEYOR
