USED PAUL O ABBE BM223

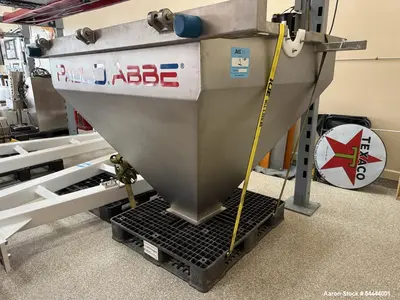

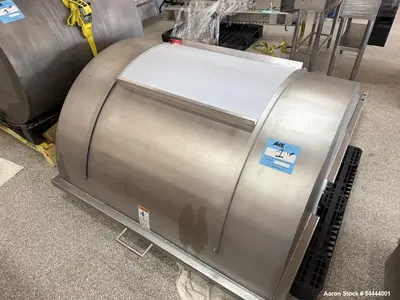

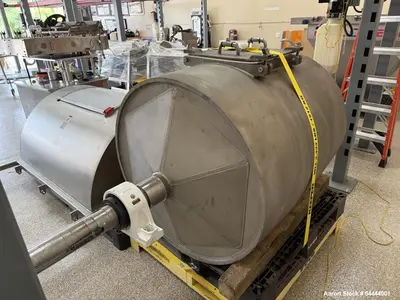

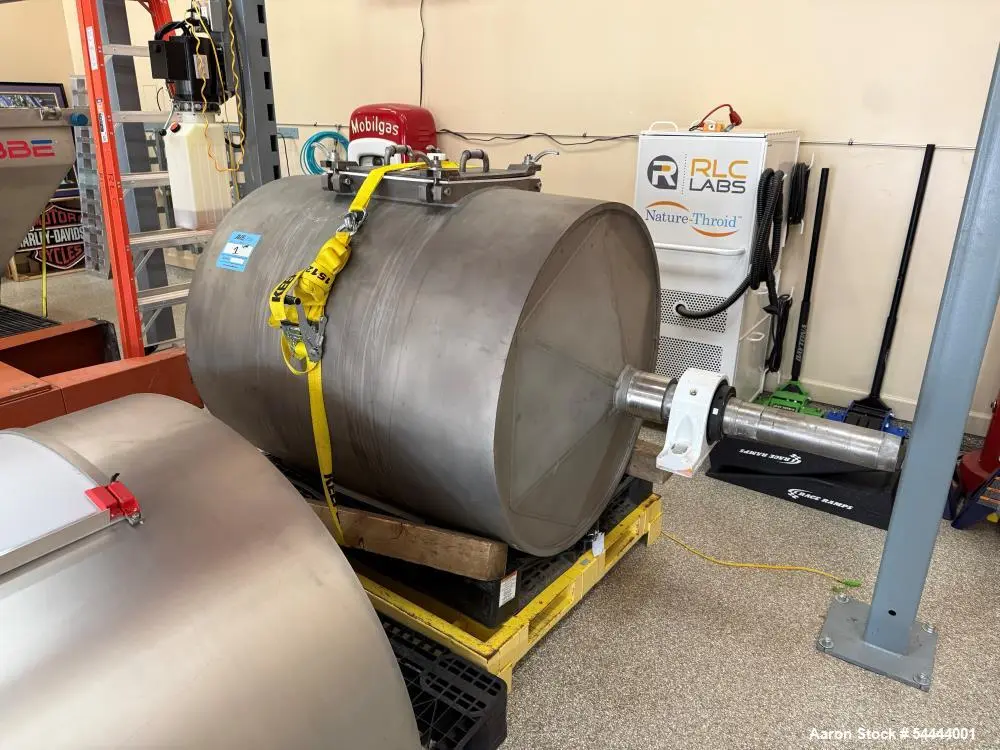

Unused Model BM-223 all-stainless-steel ball mill featuring a 2 tapered cylinder for full discharge and a split, hinged clamshell dry discharge housing. The cylinder measures 40 inches in diameter by 44 inches long inside the shell, with an internal finish of 32 RA (180 grit polish) and a shell thickness of 5/8 inch. The cylinder and product-contact surfaces are constructed of 304 stainless steel. Welded lifter bars terminate 1.5 inches from the ends, with welds laid down and ground to a minimum 1/4 inch radius and finished pit-free. The total mill volume is 32 ft (234 gallons), with a dry working volume of 8 ft (25% of total). The unit includes a 13.25 inch by 14.75 inch rectangular cover hatch frame welded into the side of the mill, a stainless steel grinding cover contoured to the inside radius, and a stainless steel dry discharge cover with 0.25 inch slots. The dry discharge housing fully encloses the mill cylinder to capture and direct solids to a chute or hopper, utilizing the patented 2 taper for full discharge (US Patent 10,086,379, Oct 2, 2018). The clamshell housing design incorporates stainless counterweights and stainless steel construction, with a nominal 60 chute/hopper below the mill and a 12 inch square bottom opening. Housing product-contact surfaces are 304 stainless steel with a 32 RA (180 grit polish) finish. Discharge height is 48 inches from hatch to floor. Additional features include a sliding UHMW cover on top of the housing. The mill drive is an SEW hollow bore, 20 HP TEFC motor rated for 230/460 volt, 3-phase, 60 Hz operation, providing a nominal cylinder speed of 24 RPM. The system is supported by two welded A" frame stands with box-style extensions for added height, constructed of carbon steel and coated with Sherwin-Williams Tile Clad epoxy. Overall dimensions are 138 inches high by 105 inches long by 64 inches deep.

Used Equipment Facts About This Machine
🔹 Manufacturer Info

Manufacturer: Paul O. Abbe (A member of the Carle Montanari Group)

Model: BM-223

Condition: Unused

Country of Origin: USA

Industry Focus: Size reduction, milling, grinding, and mixing equipment

🔹 Product Description
The Unused Paul O. Abbe Model BM-223 Ball Mill is a high-quality, stainless steel grinding system designed for efficient size reduction and material processing. This unit features a 2° tapered cylinder, allowing for complete product discharge, minimizing material retention and improving process efficiency.
The mill includes a split, hinged clamshell dry discharge housing, providing easy access for cleaning, maintenance, and product handling. With a 40-inch diameter cylinder, this ball mill is well-suited for batch processing and consistent particle size reduction.
Built to Paul O. Abbe’s high standards, this unit is ideal for demanding industrial applications requiring sanitary construction and reliable performance in grinding and blending operations.

🔹 Specifications

Model: BM-223

Condition: Unused

Type: Ball Mill / Grinding Mill

Material: All stainless steel construction

Cylinder Diameter: 40 inches

Cylinder Design: 2° tapered for full discharge

Discharge System: Split, hinged clamshell dry discharge housing

Application: Grinding, milling, and blending

🔹 Applications

Size reduction and fine grinding
Blending and homogenization
Batch milling processes
Dry material processing

Common industries include:

Pharmaceuticals
Nutraceuticals
Food processing
Chemical manufacturing
Ceramics and minerals

🔹 Products It’s Used For

Pharmaceutical powders
Nutritional supplements
Food ingredients
Pigments and dyes
Ceramic materials
Minerals and ores
Chemical powders
Metal powders
Coatings and compounds
Specialty materials
