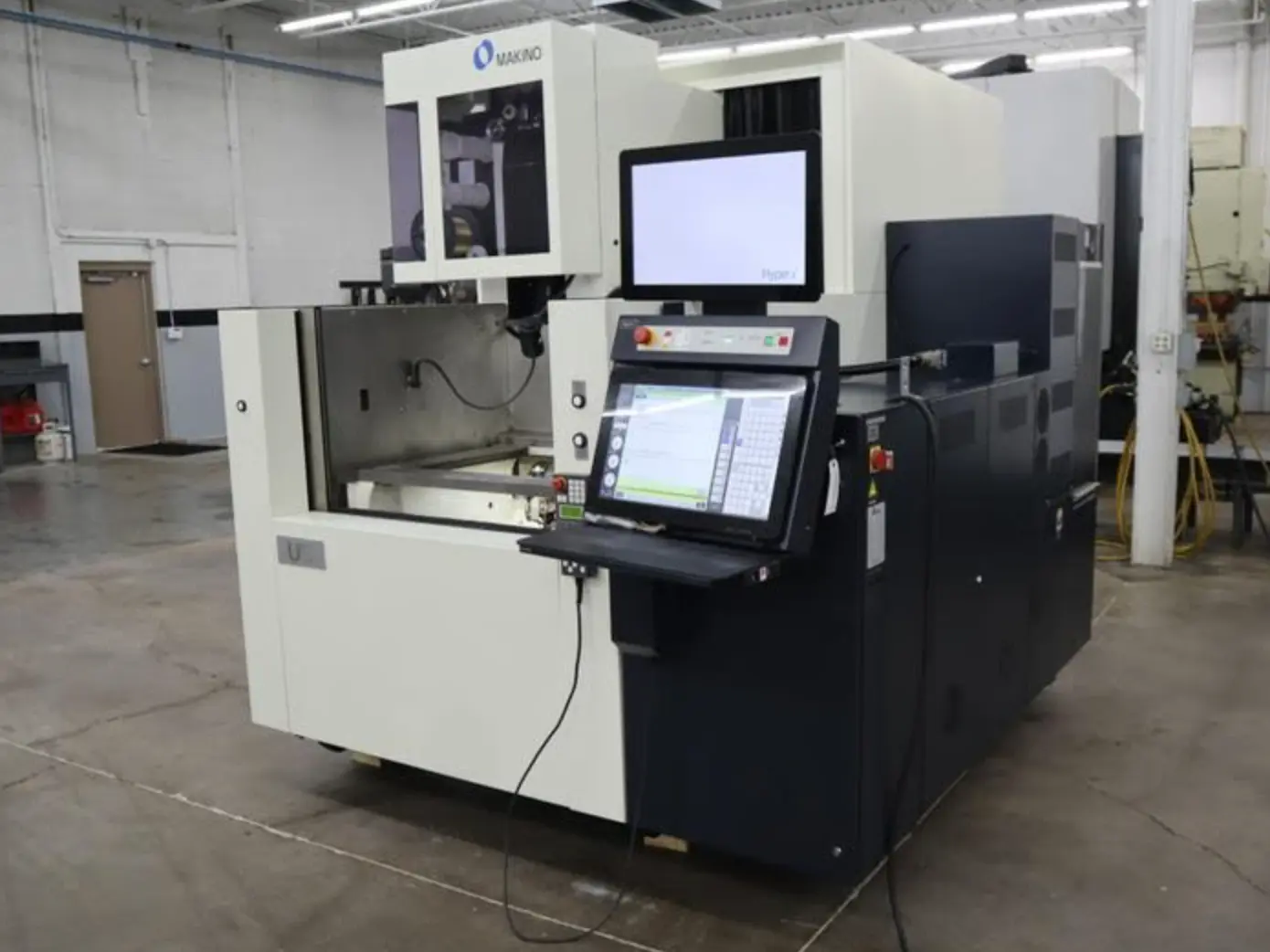

Wire EDM in used condition. Offers X/Y/Z travels 25.9" x 17.71" x 16.53" and supports taper angles up to 15 degrees. Features Hyper i CNC Control, dual monitors, automatic wire threader.
| X | 25.9" | 657.86 mm |
| Y | 17.7" | 449.58 mm |
| Z | 16.5" | 419.1 mm |
| Control | CNC (MAKINO) | CNC (MAKINO) |
Inside Tank Dimensions 42.13" x 34.65" x 17.91"
Travels (X,Y,Z) 25.9" x 17.71" x 16.53"
UV Travels +/- 2.95"
Work Table Size U-Shaped 3-Sided: 35.8" x 28"
Taper Angle +/- 15 Degrees / 3.94" Thickness
Max Workpiece Weight 3,306 Lbs.
Wire Diameter .004" - .012"
Rapid Traverse Rate 78.74 IPM
Servo Feedrate .00039 - 1.97 IPM
Wire Speed .02 -14.17 In/Second Wire Feedrate
Power Supply Amps Hyper i (EW100A) 30 Amp Power Supply
Dielectric Fluid Capacity 243 Gallons
Hyper i CNC Control, C-Axis Programmable, X/Y Scale Feedback, Dual Monitors, PICO Round Wire Guide
System, MMK MDHWi100L Programmable Rotary Table with Axis Drive and Interface, Erowa Collet
Chuck with ER40 Flex Collet, Automatic Wire Threader, 35 Lb Wire Spool Capacity, Dielectric System,
FIlters, Wire Bin, Chiller
