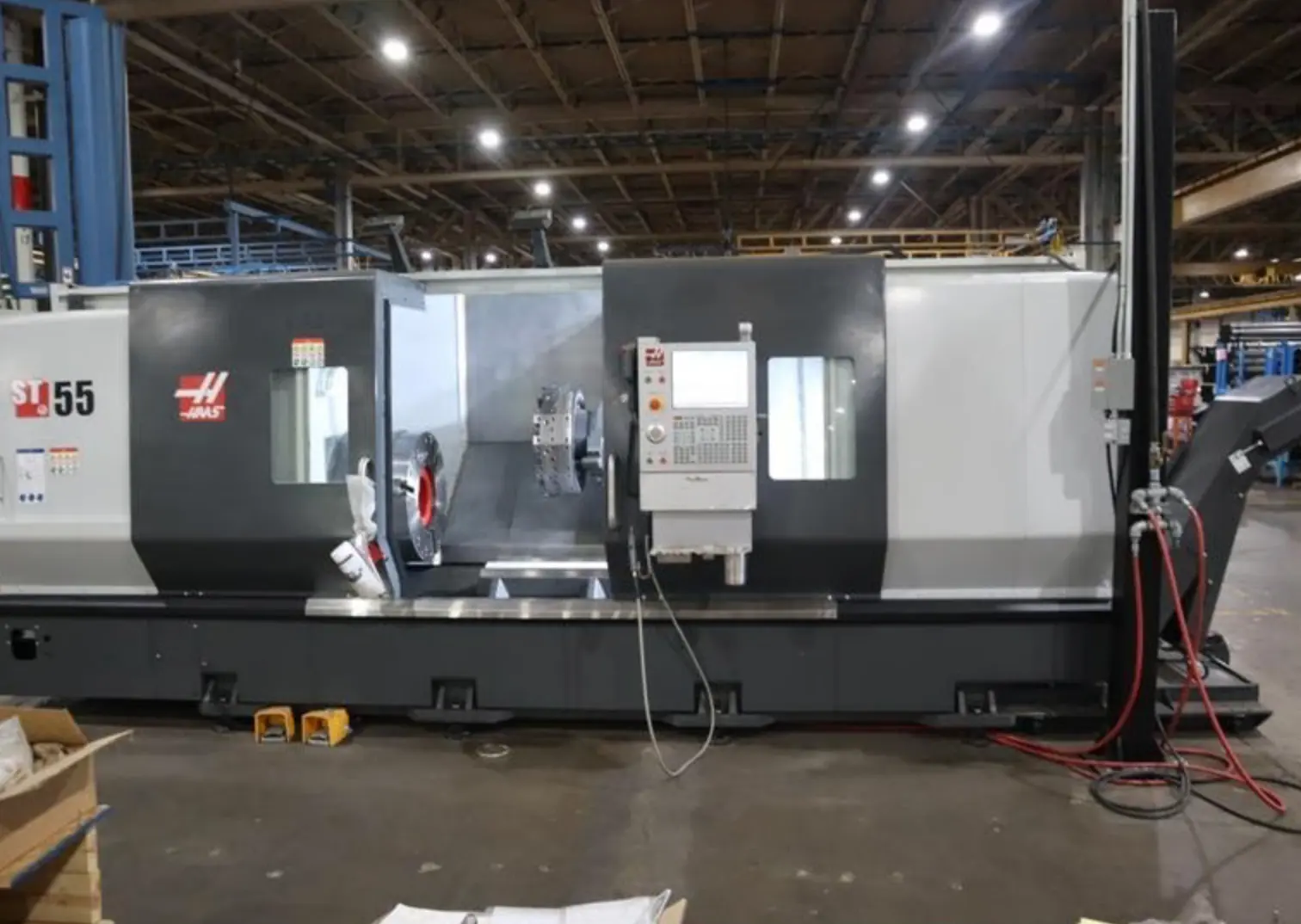

USED 2023 HAAS ST-55
Overview
Used Multi-axis CNC lathe, equipped with next-gen CNC control, 12-station turret, 12.5" spindle bore, and more. Features include 26" pneumatic chucks, coolant system, WiFi, and only 10 spindle hours. Max swing 34.5", turning diameter 25.5".
Specs
Max Swing Over Bed 34.5"
Max Swng Over Saddle 25.5"
Max Turning Diameter 25.5"
Max Turning Length 80"
Max Bar Capacity 12.5"
Hole Thru Spindle 12.5"
Spindle Nose A1-20 Front and Rear Headstock
Spindle Speeds 1,000 Max RPM
Number of Steps 2-Speed Gearbox
Turret Capacity 12 Stations
Turret Travels (X,Z) 17.0" x 8.0"
Rapid Traverse Rate (X/Z) 710 / 320 IPM
Tailstock Quill Diameter / Taper #6MT
Spindle Drive 55 HP
Equipped With
Haas Next Generation CNC Control, 12 Station Automatic Tool Turret, 12.5" Spindle Bore, Programmable
Tailstock, (2) SMW Big Bore (12.2" Bore) 26" Pneumatic Chucks, Hennig Chip Conveyor, 1,000 PSI
Coolant System, Rigid Tapping, 1GB Memory, 8 Spare MFunctions, Cabinet Coolaer, Ethernet Interface,
, High-Intensity Lighting, XL Remote Jog Handwheel - Touchscreen, Spindle Oreintation, WIFI Connect,
(2) Remote Foot Actuators, (2) 3" Bore Turret Tool Holders, (3) 2.5" Bore Turret Tool Holders, (1) Bolt-On
Turning Holder, Several Turning Clamps for Turret, Chuck Jaws, Manuals -ONLY 10 SPINDLE
HOURS!
