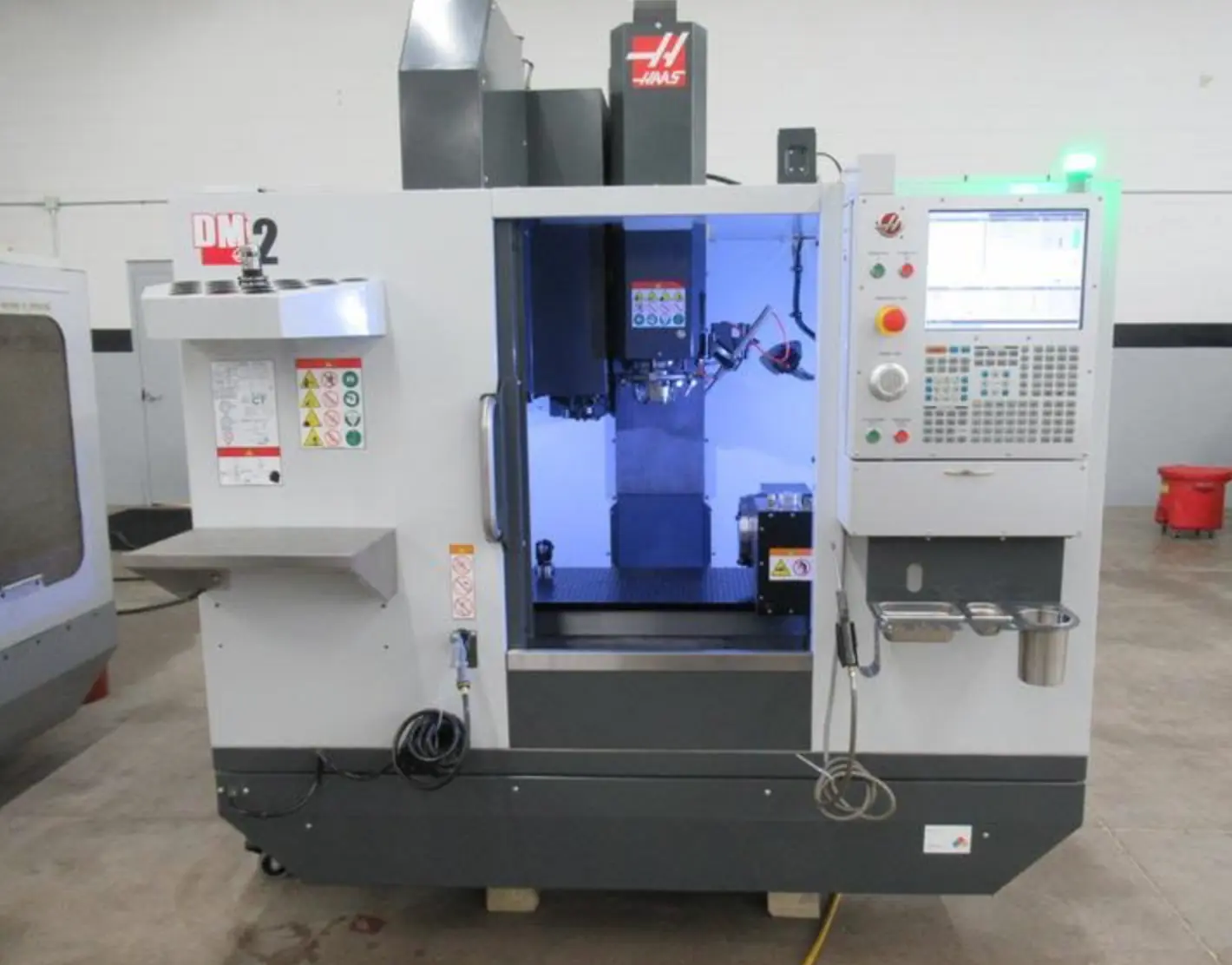

Used Vertical Machining Center for sale. Features include Haas NextGen CNC control, 4-axis capability, 28" x 16" travel, 15 hp motor, 10,000 RPM spindle, 18-station tool changer, and Renishaw probing system.
| X | 28" | 711.2 mm |
| Y | 16" | 406.4 mm |
| Z | 15.5" | 393.7 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 18 | 18 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 15" | 381 mm |
| Table-L | 34" | 863.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
Machine Control Haas NextGen CNC Control
Table Size 34" X 15"
Spindle To Table Distance 6" - 15.5"
Table Capacity 250 LBS
Rapid Traverse Rate (X/Y/Z) 2400 IPM
Maximum Cutting Feed Rate 1200 IPM
Tool Changer Style Twin Arm Tool Changer
Tool Changer Capacity 18 + 1
Tool Change Time 1.2 Seconds Tool to Tool
Max Tool Length 7" X 2.5" Diameter
Max Tool weight 5.5 LBS
Haas NextGen CNC Control, Haas HRT-210 Rotary Table (s/n 201940 V. P20), Brushless 4th/5th Axis
Drive, 4th Axis Linear Scale, 40" x 16" Drill/Tapped Sub Plate, Renishaw Probing System with Part Probe
and Tool Setter, 300 PSI Thru Spindle Coolant, Thru Tool Air Blast, 18-Station Side Mount Twin Arm
Automatic Tool Changer, Rigid Tapping, Auxiliary Filter, USB, 55 Gallon Coolant Tank, Psytronics
Transient Voltage Protection System
