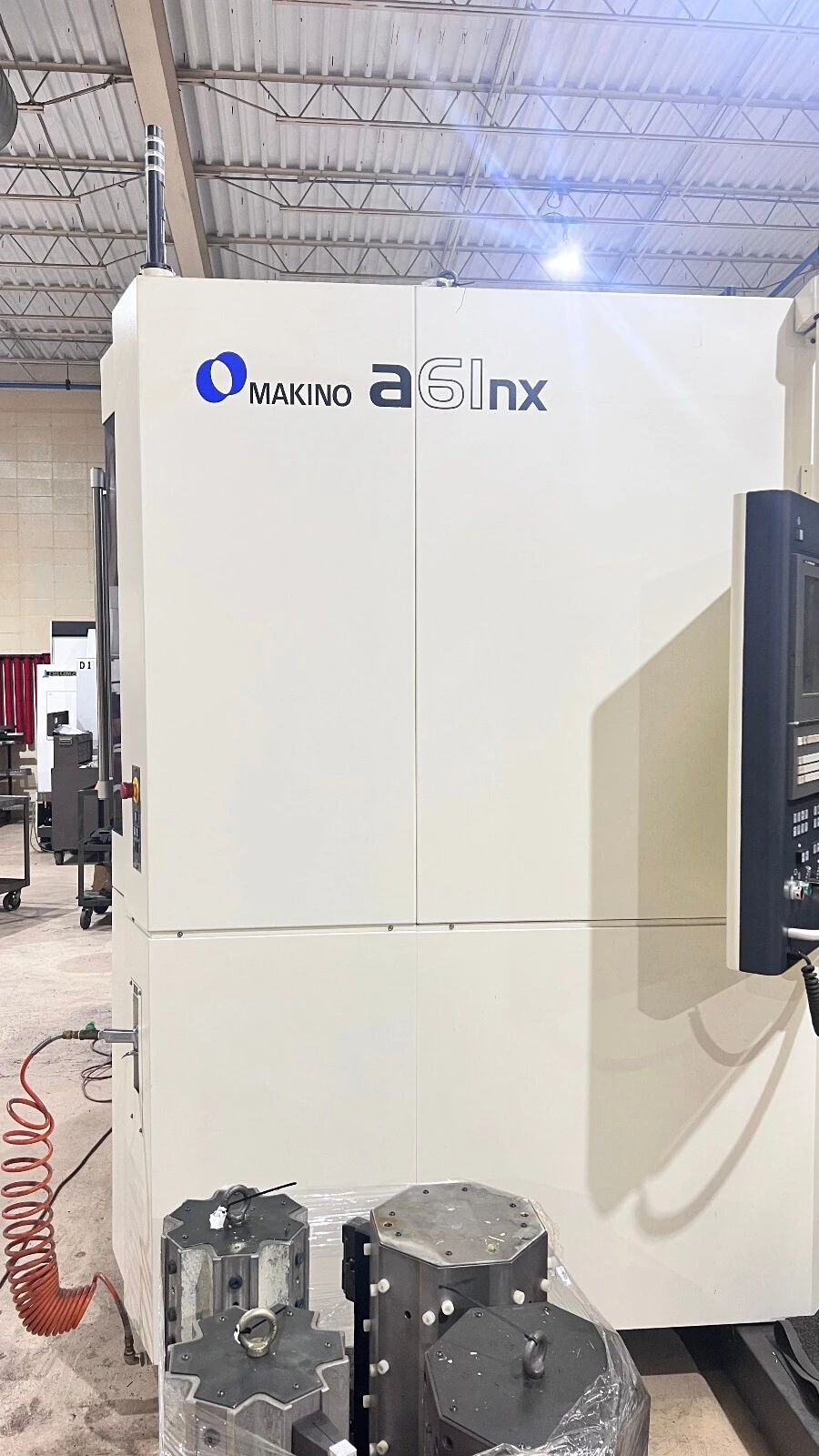

Horizontal Machining Center, in used condition. Features include 28.7"x25.6"x31.5" XYZ, 12,000 RPM, 60 ATC, CAT40 taper. Equipped with 5-axis package, Tsudakoma Rotary Table, Super GI .5, and Renishaw probe system.
| X | 28.7" | 728.98 mm |
| Y | 25.6" | 650.24 mm |
| Z | 31.5" | 800.1 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT40 | CAT40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
5-Axis Package Full ax1nx PRO6 5th axis software with Position Switch and Control Axis Detach
Tsudakoma RTV-304 CA-SB Rotary Table
Super GI .5 Motion Control
Renishaw OMP400 & NC4S Probe System
