USED OSMONICS BEV SERIES / NF

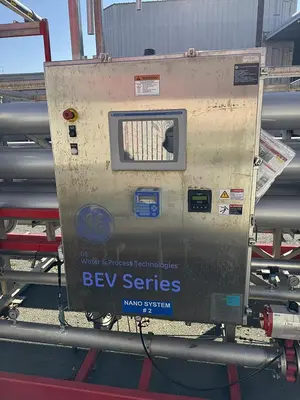

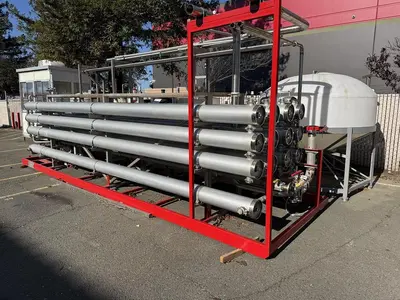

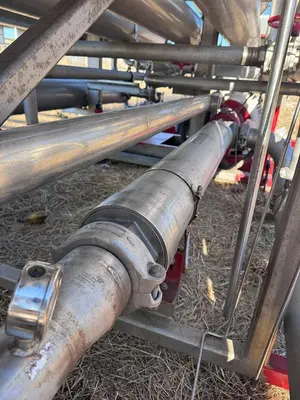

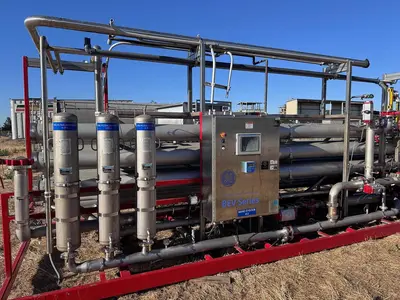

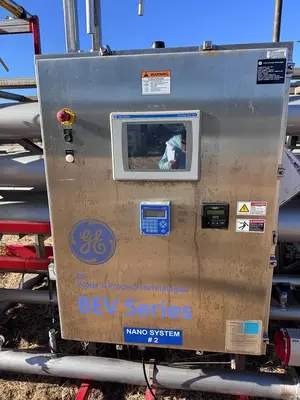

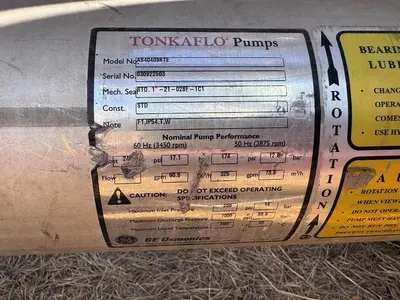

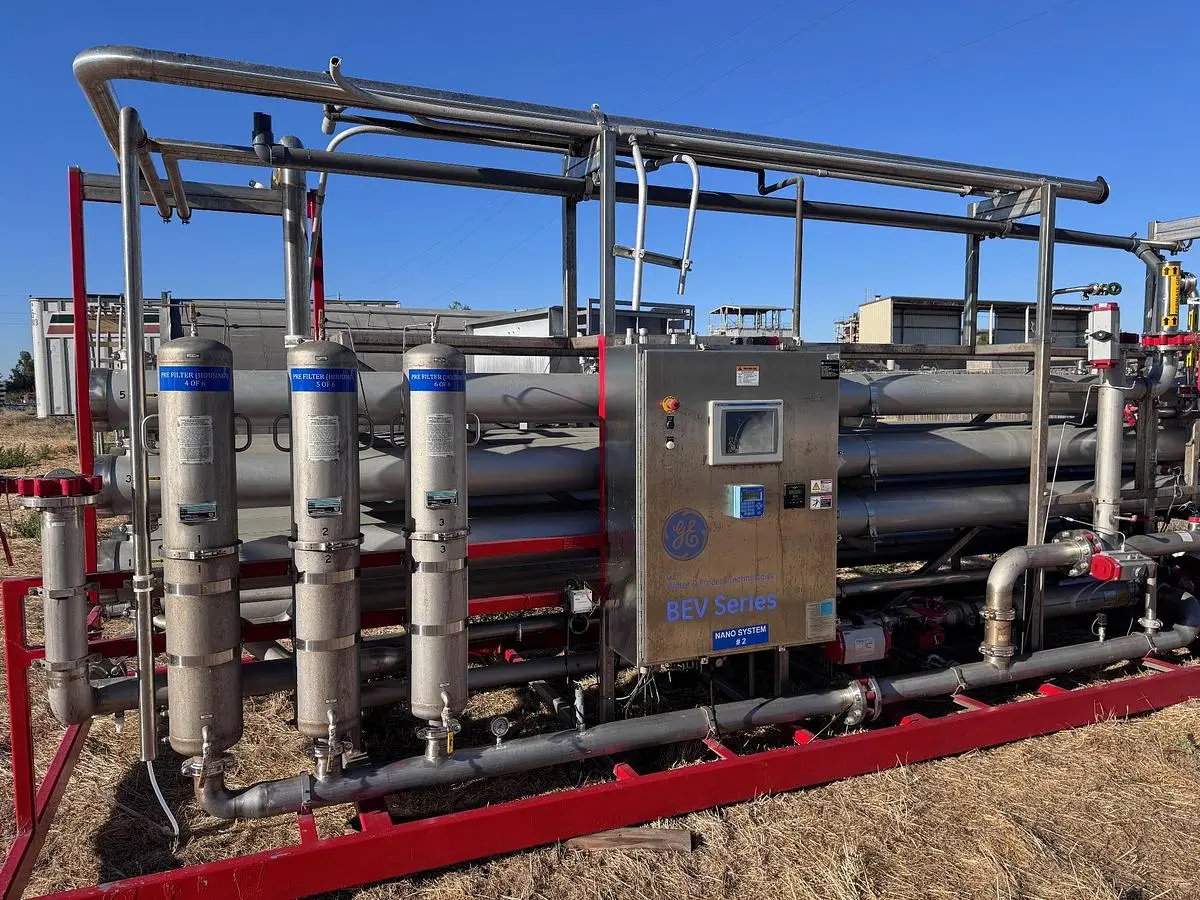

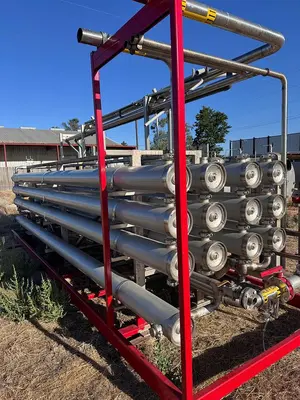

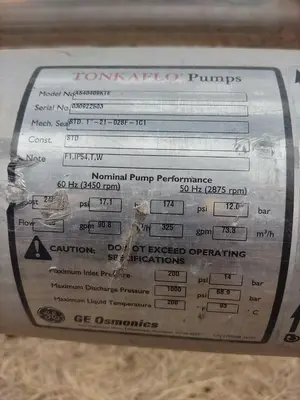

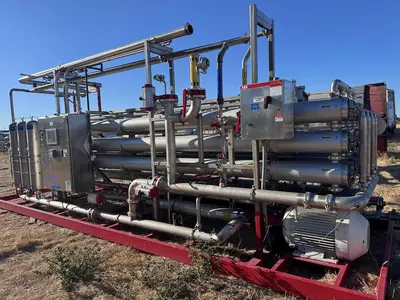

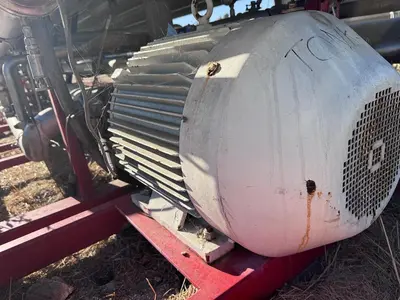

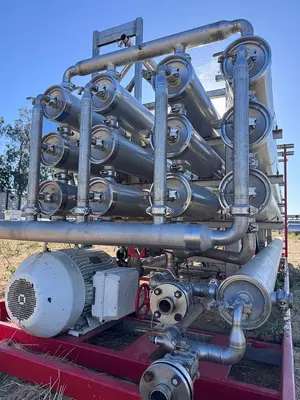

Osmonics BEV Series nano filtration system designed for high-capacity sanitary processing applications. Unit is constructed of stainless steel and mounted on a tubular skid frame with integrated piping and support structure. System is rated for approximately 300 GPM permeate at 60°F with approximately 40 GPM concentrate and operating pressure range of 185/350 PSIG. Equipped with (12) 8-inch diameter by approximately 20-foot long membrane pressure vessels arranged in parallel banks, Aquafine UV sterilization unit, and a 75 HP centrifugal recirculation pump (Tonkaflo model AS40409KTE). System includes basket pre-filters (HX0740-3.0-316A), Thornton/Mettler 770max multiparameter analyzer, control panel, and sanitary piping, valves, fittings, and tri-clamp connections. Skid-mounted design.

Stock Number: 5991746
Manufacturer: Osmonics
Model: BEV Series / NF

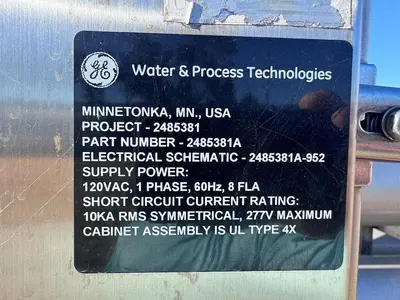

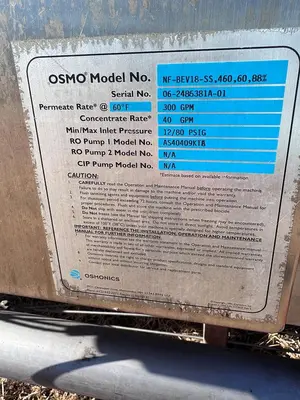

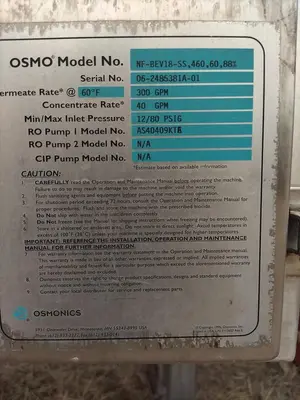

Serial Number: 06-2485381A-01
Materials of Construction: Stainless Steel

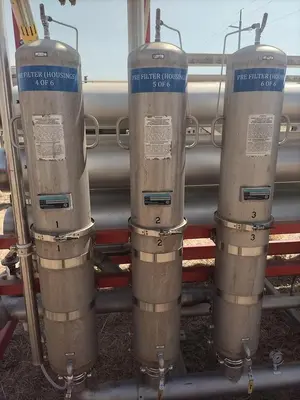

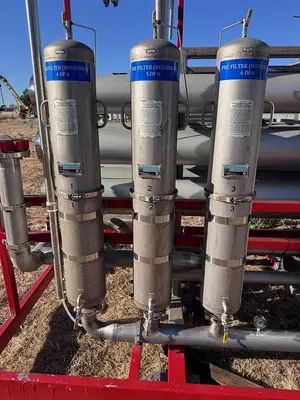

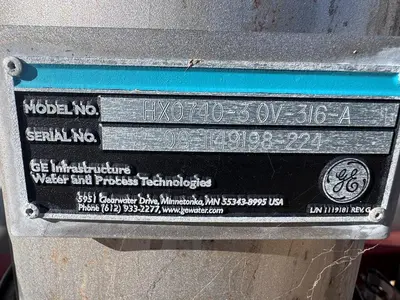

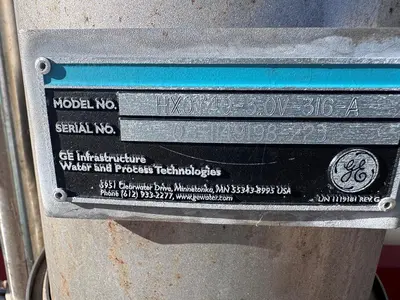

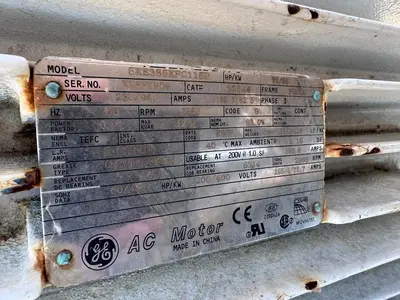

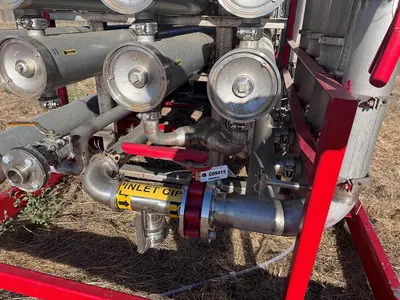

Recirculation Pump: 75 HP Pre-Filters: HX0740-3.0-316A
UV Sterilizer: Aquafine

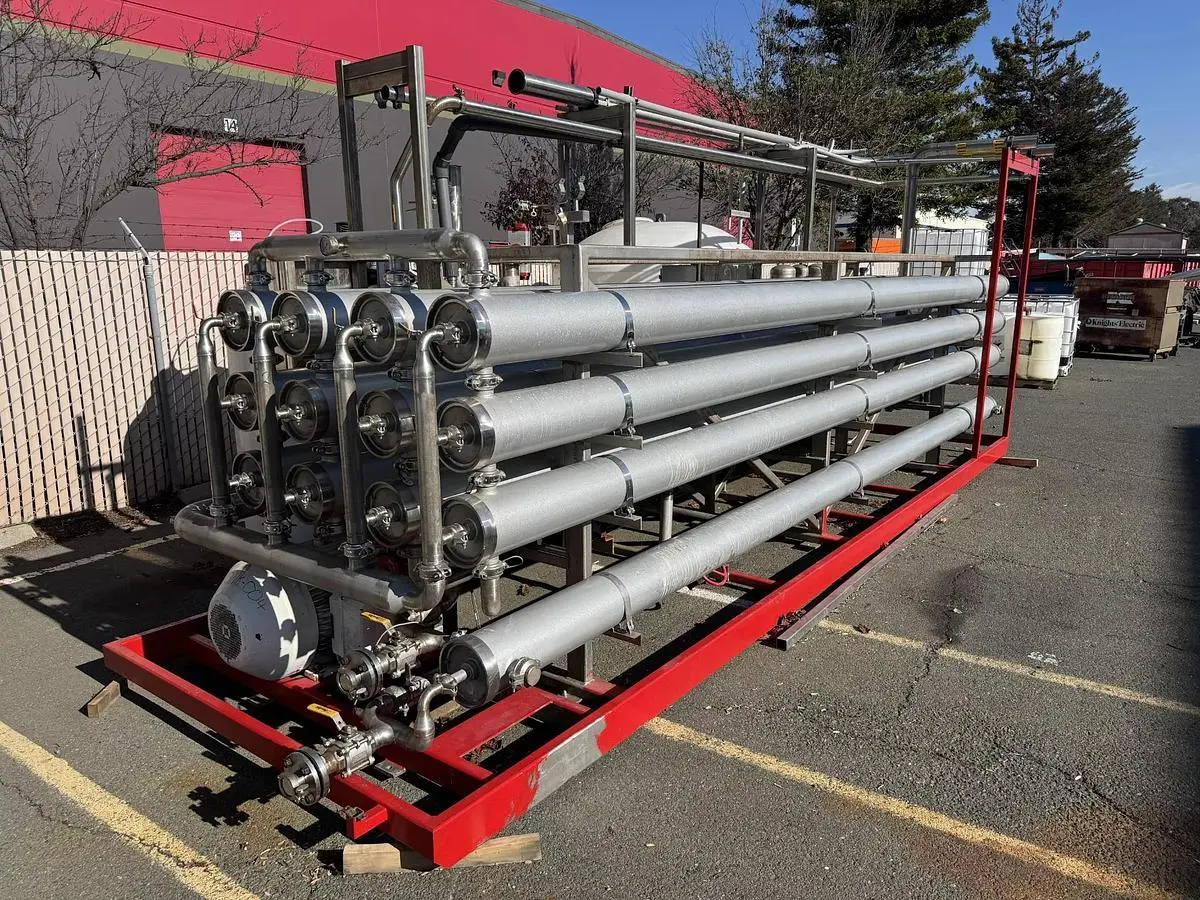

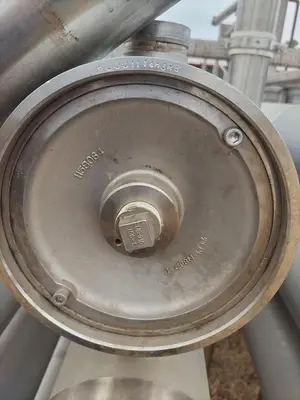

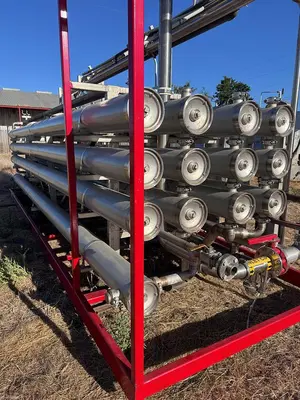

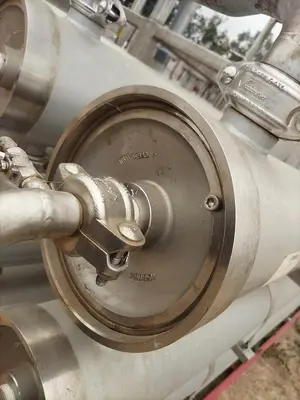

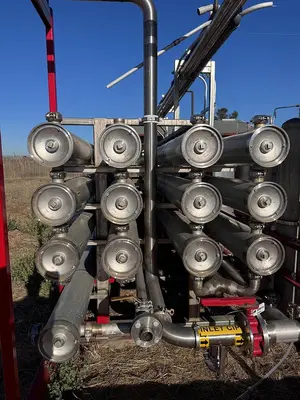

Membrane Housings: (12) 8" diameter
Pressure Rating: 185 / 350 PSIG
Concentrate Flow: 40 GPM
Permeate Capacity: 300 GPM @ 60°F
Basis: FOB
