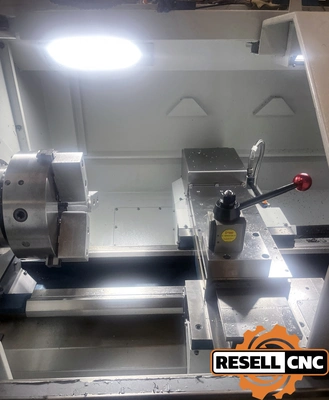

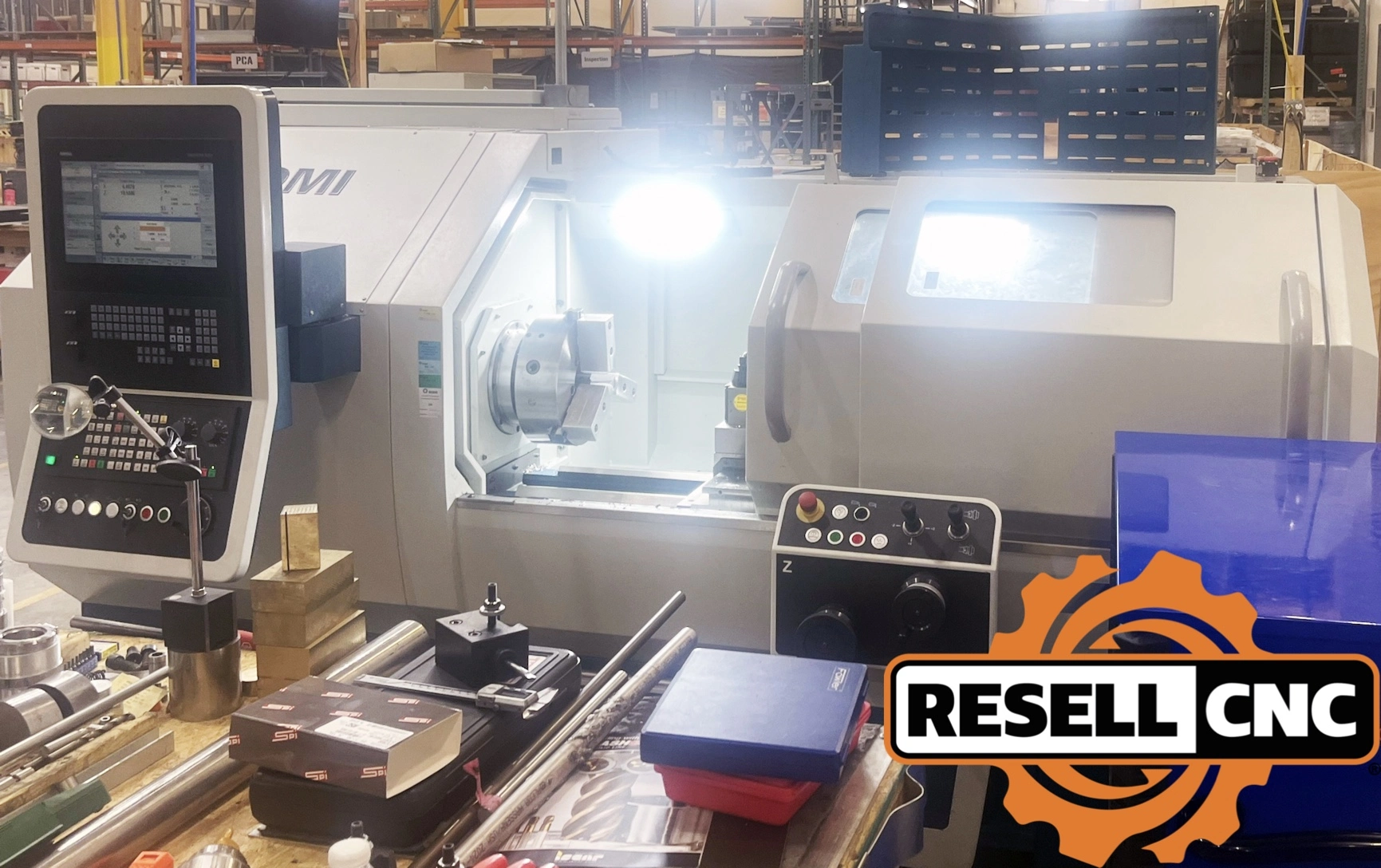

USED 2024 Romi C-470

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 15" Touchscreen Interface

Additional Machine Specs: Manual Tailstock

Center Height: 9.45"

(10) Od holders and (7) ID holders with a bore of 1"

Bar Capacity: 2.56
B Axis: false
C Axis: false
Chuck Size: 8.0

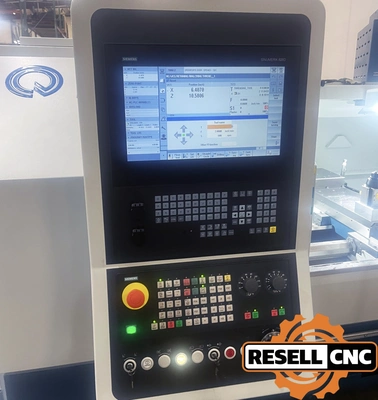

Control Make Model: Siemens Sinumerik 828D CNC Control
Control Options: Color Monitor
Distance Between Centers: 39.37
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 11.81
Max Swing Over Bed: 18.5
Max Swing Over Cross Slide: 7.87
Programmable Tailstock: false
Rapid Traverse: 394
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.56
Spindle Motor: 12.5
Spindle Nose: A2-6
Spindle Speed: 3000.0
Sub Spindle: false
Tailstock: true
Tailstock Quill Diameter: 2.36
Tailstock Stroke Of Body: 4.72
Tailstock Taper: MT#4
Tool Positions: 8.0
Turret Options: Electric turret, 1" x 1" tool capacity

Twin Turret: false
X Travel: 8.66
Y Axis: false
Z Travel: 41.93
