| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 49.2" | 1,249.7 mm |
| Spindle Tvl. | 35.43" | 899.92 mm |
TECHNICAL SPECIFICATIONS

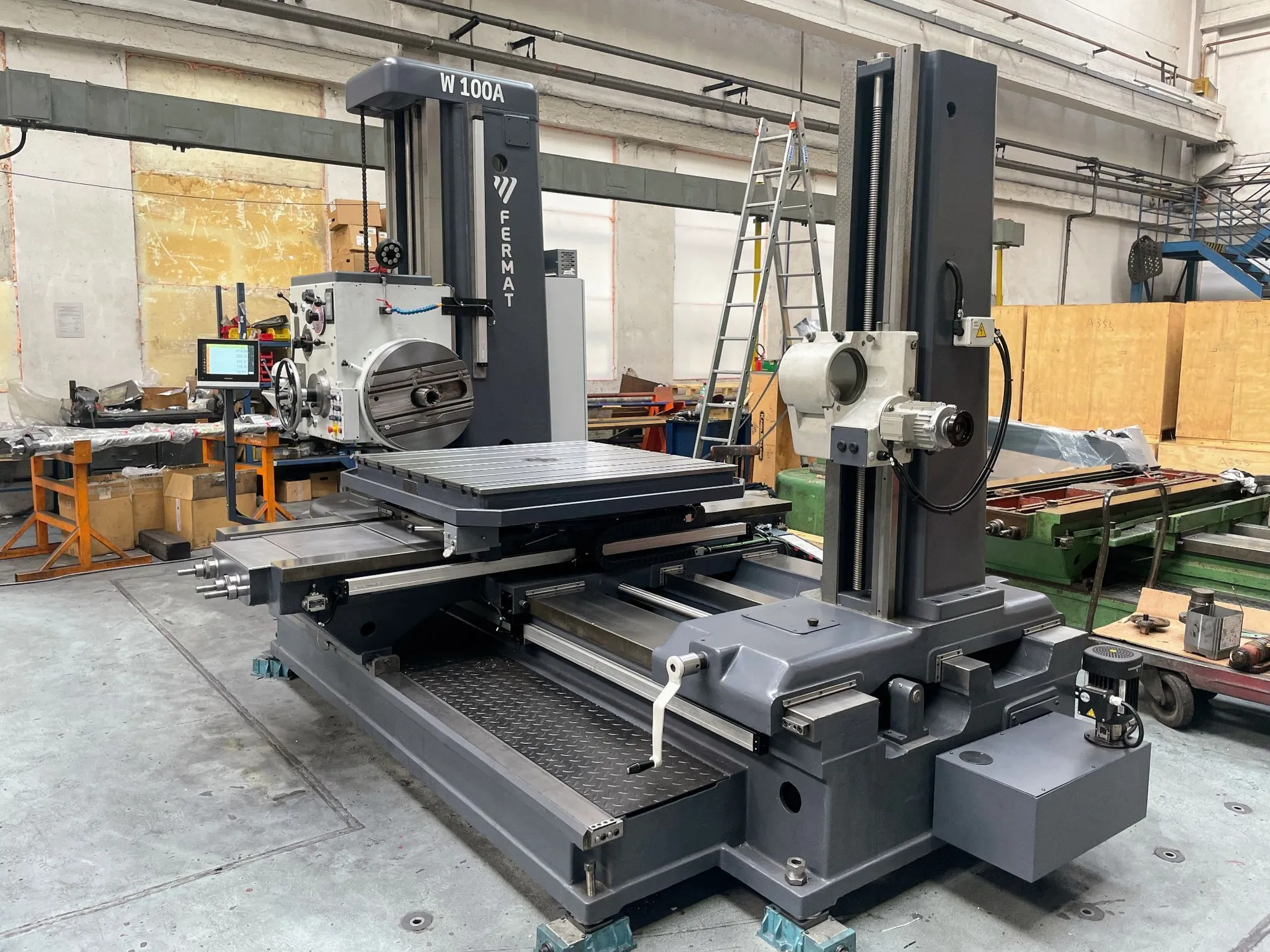

Machine type............ Manual Table Type Boring Machine
Make.................... FERMAT
Type.................... W100 A
Year / Sn#.............. 2025 / Sn# n/a
Control/DRO............. 5-Axis Digital Readout Heidenhain
Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1120 mm 44.1”
W-travel (spindle)...... 900 mm 35.9”
Z-travel................ 1250 mm 49.2”
Spindle Dia............. 100 mm 3.93”
Spindle taper........... ISO 50
Table-size.............. 1250 x 1250 mm 49.2” x 49.2”
Table load capacity..... 3000 kg 6600 lbs.
Spindle speed:.......... 9 to 1120 rpm
Spindle Motor........... 11 kW. 15 HP
Weight of the machine... 17500 kg. 38,500 lbs.
Dimensions (LWH)........ 5.9 x 3.6 x 3.0 m 264” x 135” x 118”
Machine with modern Motor and Electrics (UL/CSA compatible)
5-Axis Digital Readout Heidenhain (DRO)
Scales on X, Y, Z and W-Axis
B-Axis measurement with built-in rotary encoder and 4×90° Optical Readout
Long-life Spindle and Spindle Bearings
Central Lubrication System for All Axes
Telescopic Covers
24" Facing Head with max. face milling diameter 35.5"
Facing Head
Tail stock assembly
Documentation
Electrical Specifications: 3-Phase, 400V, 50/60Hz
12 Months OEM Warranty
